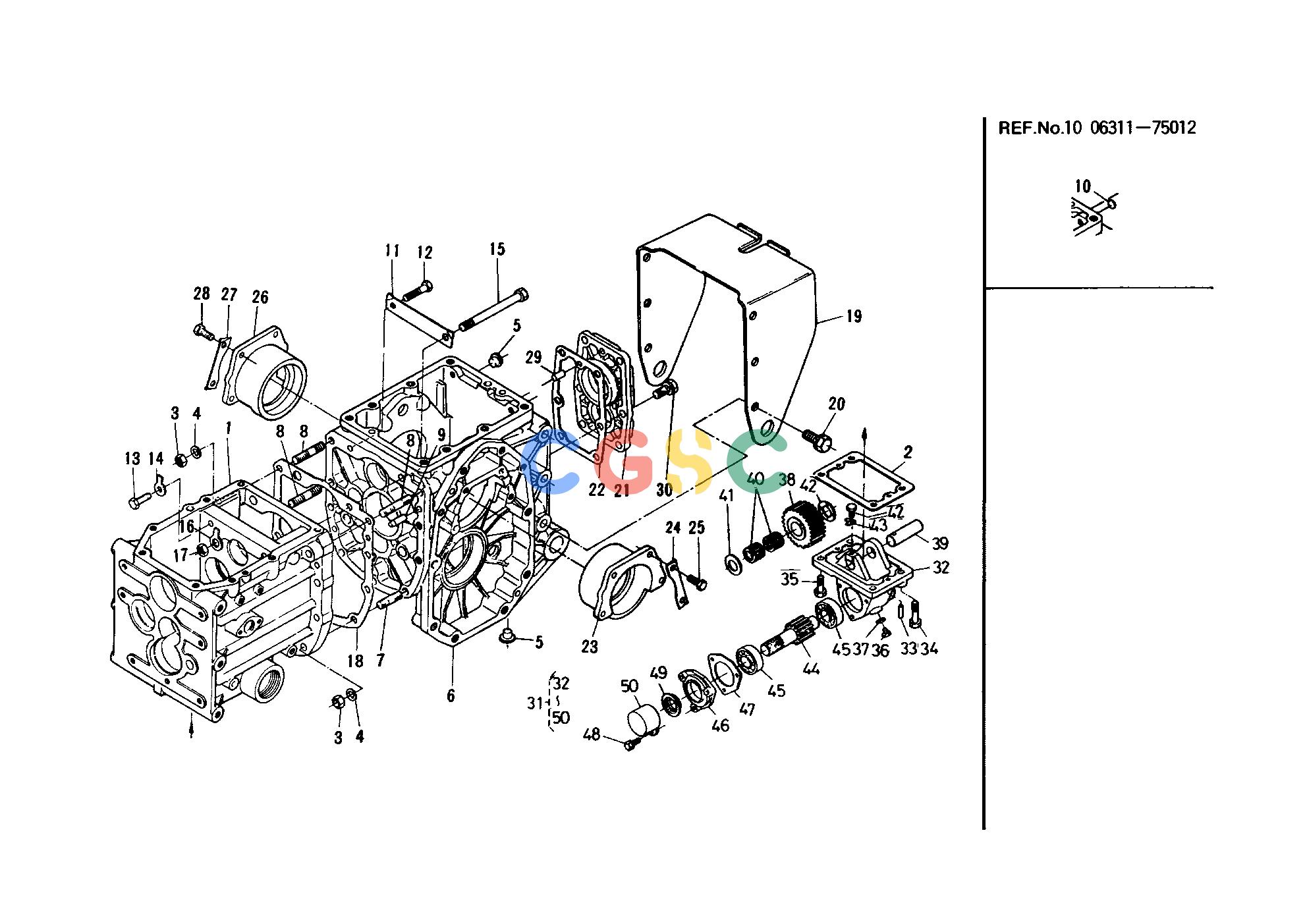

久保田零件查询T02400 TRANSMISSION CASE TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
675 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6620411110
|
[1] |
CASE TRANSMISSION
|
0.0000(lbs); 0.000
|
| 002. |
6620421220
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 003. |
0211850100
|
[9] |
NUT
|
0.0110(lbs); 0.005
|
| 004. |
0451250100
|
[9] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 005. |
6711111140
|
[4] |
PLUG M12
|
0.0000(lbs); 0.000
|
| 005. |
6721111140
|
[4] |
PLUG M12
|
0.0022(lbs); 0.001
|
| 006. |
6661111127
|
[1] |
CASE DIFFERENTIAL
|
17.6000(lbs); 8.000
|
| 006. |
6661111129
|
[1] |
CASE DIFFERENTIAL
|
0.0000(lbs); 0.000
|
| 007. |
0155551035
|
[6] |
STUD
|
0.0638(lbs); 0.029
|
| 008. |
0155551050
|
[3] |
STUD
|
0.0836(lbs); 0.038
|
| 009. |
6661111160
|
[2] |
PIN KNOCK
|
0.0220(lbs); 0.010
|
| 010. |
0631175012
|
[2] |
PLUG EXPANSION
|
0.0044(lbs); 0.002
|
| 011. |
6659111440
|
[1] |
PLATE LOCK
|
0.0308(lbs); 0.014
|
| 012. |
0115350838
|
[1] |
BOLT
|
0.0374(lbs); 0.017
|
| 013. |
0115350825
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 014. |
0411150080
|
[1] |
WASHER TONGUED
|
0.0022(lbs); 0.001
|
| 015. |
6620411140
|
[1] |
BOLT
|
0.2134(lbs); 0.097
|
| 016. |
0411150100
|
[1] |
WASHER TONGUED
|
0.0066(lbs); 0.003
|
| 017. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 018. |
6661111130
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 019. |
6670411214
|
[1] |
COVER PTO
|
4.9720(lbs); 2.260
|
| 020. |
0112351235
|
[6] |
BOLT
|
0.0902(lbs); 0.041
|
| 021. |
6670612210
|
[1] |
COVER REAR
|
2.6620(lbs); 1.210
|
| 022. |
6661112220
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 023. |
6661111510
|
[1] |
HOLDER DIF.BEARING L
|
1.7160(lbs); 0.780
|
| 024. |
6661111520
|
[2] |
PLATE LOCK
|
0.0220(lbs); 0.010
|
| 025. |
0115050820
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 026. |
6661111812
|
[1] |
HOLDER DIF.BEARING R
|
1.5840(lbs); 0.720
|
| 027. |
6661111520
|
[2] |
PLATE LOCK
|
0.0220(lbs); 0.010
|
| 028. |
0115050820
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 029. |
0501200816
|
[1] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 030. |
0112051025
|
[6] |
BOLT
|
0.0000(lbs); 0.000
|
| 031. |
6620421200
|
[1] |
KIT MID PTO
|
0.0000(lbs); 0.000
|
| 031. |
6620421202
|
[1] |
KIT MID PTO
|
6.6000(lbs); 3.000
|
| 032. |
9638025110
|
[1] |
CASE DRIVE
|
3.9600(lbs); 1.800
|
| 033. |
0501200816
|
[2] |
PIN
|
0.0154(lbs); 0.007
|
| 034. |
0112351040
|
[2] |
BOLT
|
0.0660(lbs); 0.030
|
| 035. |
0112351028
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 036. |
0633135016
|
[1] |
PLUG
|
0.0880(lbs); 0.040
|
| 037. |
0471701600
|
[1] |
WASHER SEAL
|
0.0066(lbs); 0.003
|
| 038. |
9638025120
|
[1] |
GEAR 24T
|
0.0000(lbs); 0.000
|
| 038. |
9638025123
|
[1] |
GEAR 24T
|
1.5180(lbs); 0.690
|
| 039. |
9638025130
|
[1] |
SHAFT
|
0.3652(lbs); 0.166
|
| 040. |
0882223015
|
[2] |
BEARING NEEDLE
|
0.0550(lbs); 0.025
|
| 041. |
9638025140
|
[2] |
COLLAR
|
0.0308(lbs); 0.014
|
| 042. |
0115050814
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 043. |
9638025150
|
[1] |
WASHER
|
0.0066(lbs); 0.003
|
| 044. |
9638025160
|
[1] |
SHAFT
|
1.1220(lbs); 0.510
|
| 045. |
0810106205
|
[2] |
BEARING BALL
|
0.2640(lbs); 0.120
|
| 046. |
9638025170
|
[1] |
COVER CASE
|
0.4290(lbs); 0.195
|
| 047. |
9638025180
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 048. |
0112050825
|
[3] |
BOLT
|
0.0000(lbs); 0.000
|
| 049. |
9638025190
|
[1] |
SEAL OIL
|
0.0286(lbs); 0.013
|
| 050. |
6620421250
|
[1] |
COVER
|
0.1540(lbs); 0.070
|
