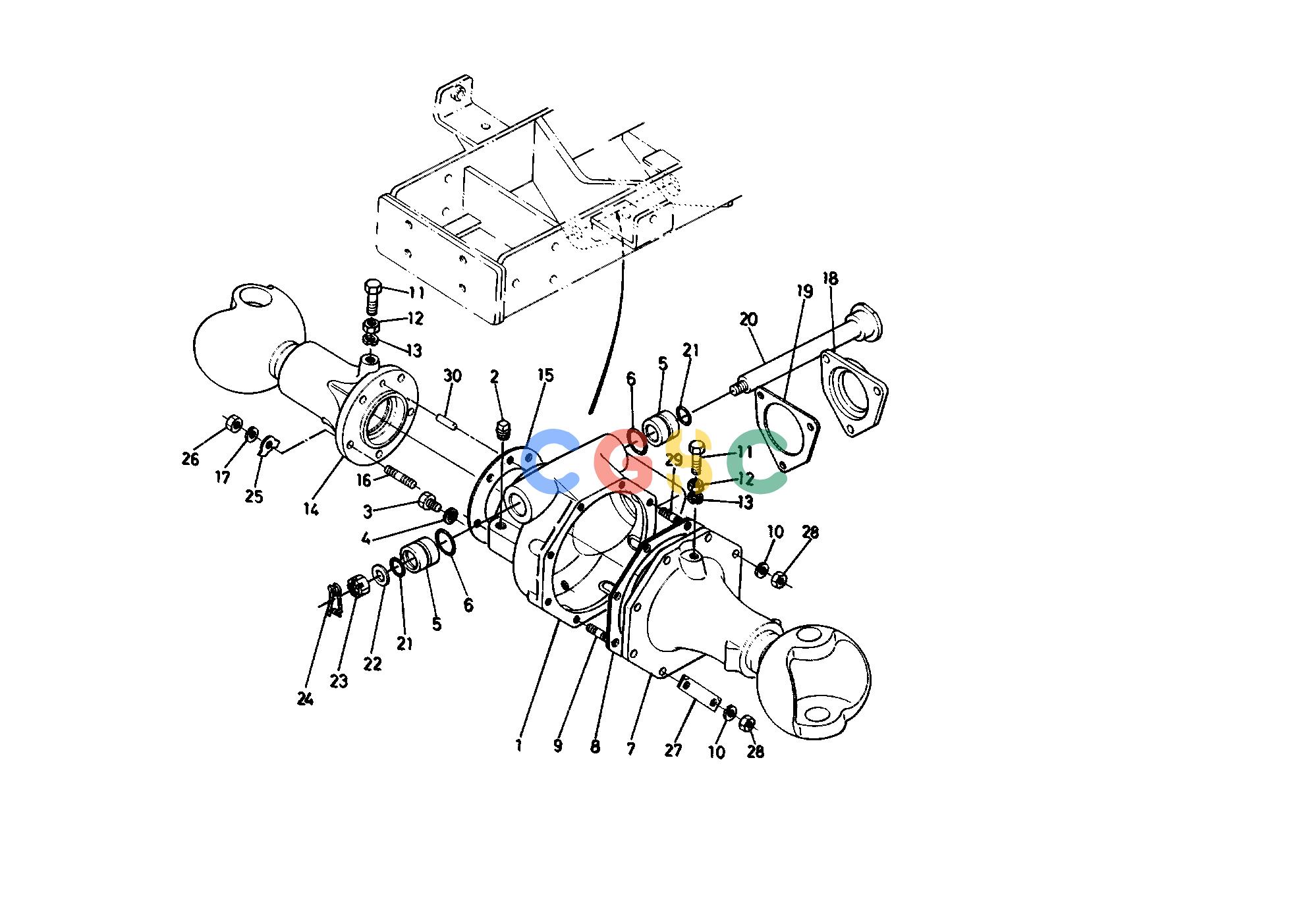

久保田零件查询T06100 FRONT AXLE CASE [DP] FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
795 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6675156160
|
[1] |
CASE FRONT AXLE 1
|
14.3000(lbs); 6.500
|
| 002. |
0631210020
|
[1] |
PLUG
|
0.0352(lbs); 0.016
|
| 003. |
0633135010
|
[1] |
PLUG
|
0.0264(lbs); 0.012
|
| 004. |
0471701000
|
[1] |
WASHER SEAL
|
0.0022(lbs); 0.001
|
| 005. |
6659156120
|
[2] |
BUSH
|
0.1628(lbs); 0.074
|
| 006. |
0481150250
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 007. |
6675156210
|
[1] |
CASE FRONT AXLE LH
|
13.8380(lbs); 6.290
|
| 008. |
6659156190
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 009. |
0151850820
|
[7] |
STUD
|
0.0264(lbs); 0.012
|
| 010. |
0451250080
|
[8] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 011. |
6659156280
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 012. |
0211250120
|
[2] |
NUT
|
0.0154(lbs); 0.007
|
| 013. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 014. |
6671156310
|
[1] |
CASE FRONT AXLE RH
|
11.1760(lbs); 5.080
|
| 015. |
6671156320
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 016. |
0155551022
|
[5] |
STUD
|
0.0462(lbs); 0.021
|
| 017. |
0451250100
|
[5] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 018. |
6659156183
|
[1] |
COVER
|
0.9130(lbs); 0.415
|
| 019. |
6659156172
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 020. |
6680256110
|
[1] |
PIN CENTER
|
1.2760(lbs); 0.580
|
| 021. |
0481100200
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 022. |
0401150180
|
[1] |
WASHER PLAIN
|
0.0264(lbs); 0.012
|
| 023. |
0237250180
|
[1] |
NUT SLOTTED
|
0.0418(lbs); 0.019
|
| 024. |
6661157150
|
[1] |
PIN SET
|
0.0440(lbs); 0.020
|
| 025. |
6661156610
|
[5] |
WASHER LOCK
|
0.0066(lbs); 0.003
|
| 026. |
0217650100
|
[5] |
NUT
|
0.0110(lbs); 0.005
|
| 027. |
6671156620
|
[4] |
PLATE LOCK
|
0.0220(lbs); 0.010
|
| 028. |
0211450080
|
[8] |
NUT
|
0.0110(lbs); 0.005
|
| 029. |
6671156220
|
[1] |
STUD
|
0.0308(lbs); 0.014
|
| 030. |
0501201016
|
[1] |
PIN
|
0.0220(lbs); 0.010
|
