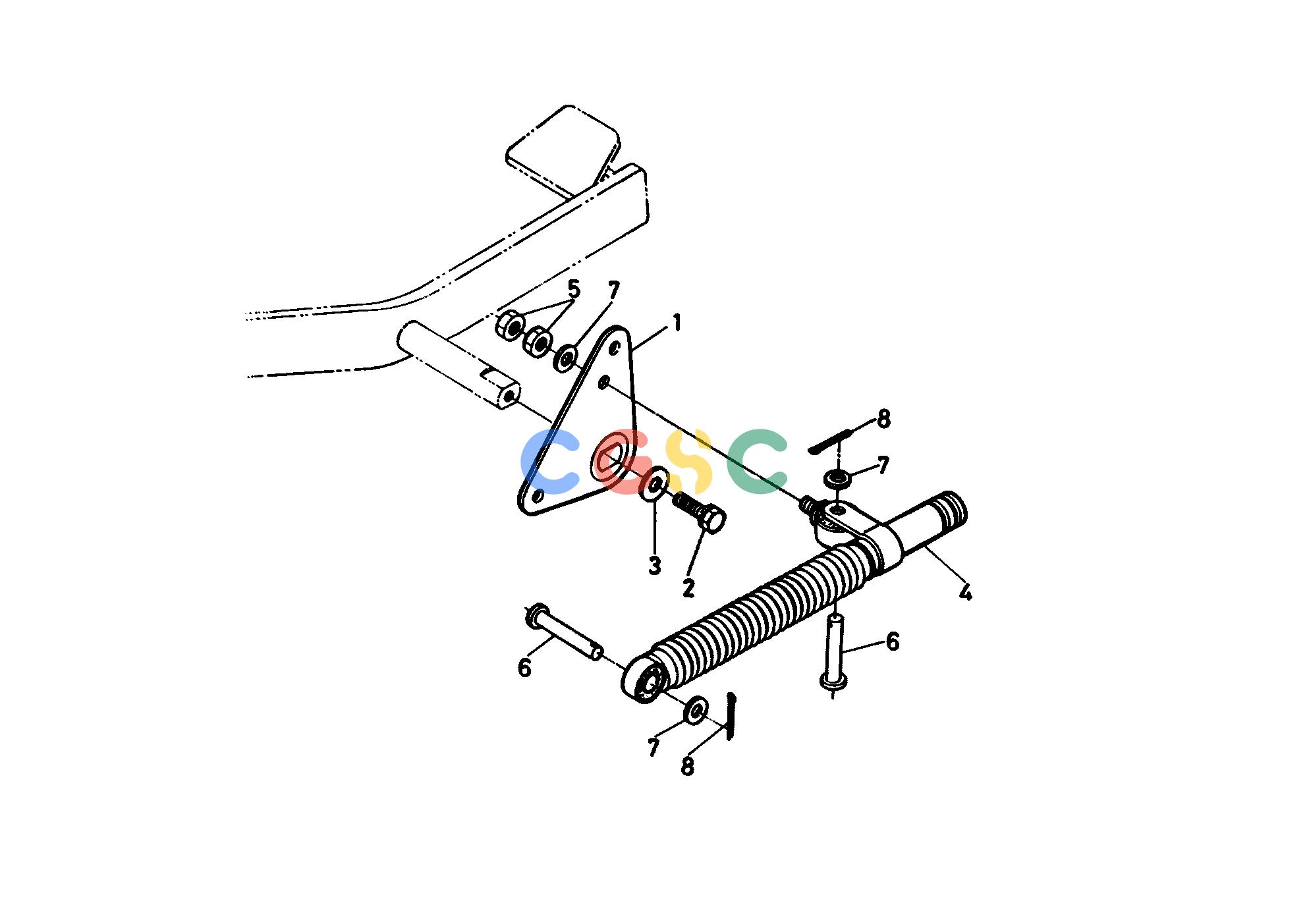

久保田零件查询T04500 SPEED CHANGE 2 SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
133 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6620443420
|
[1] |
GUIDE ROD
|
0.0000(lbs); 0.000
|
| 002. |
0120250816
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 002. |
0112050816
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 003. |
0401550080
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 004. |
6620443530
|
[1] |
DAMPER
|
0.6600(lbs); 0.300
|
| 005. |
0211250080
|
[2] |
NUT
|
0.0066(lbs); 0.003
|
| 006. |
0512250830
|
[2] |
PIN JOINT
|
0.0308(lbs); 0.014
|
| 007. |
0401250080
|
[3] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 008. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
