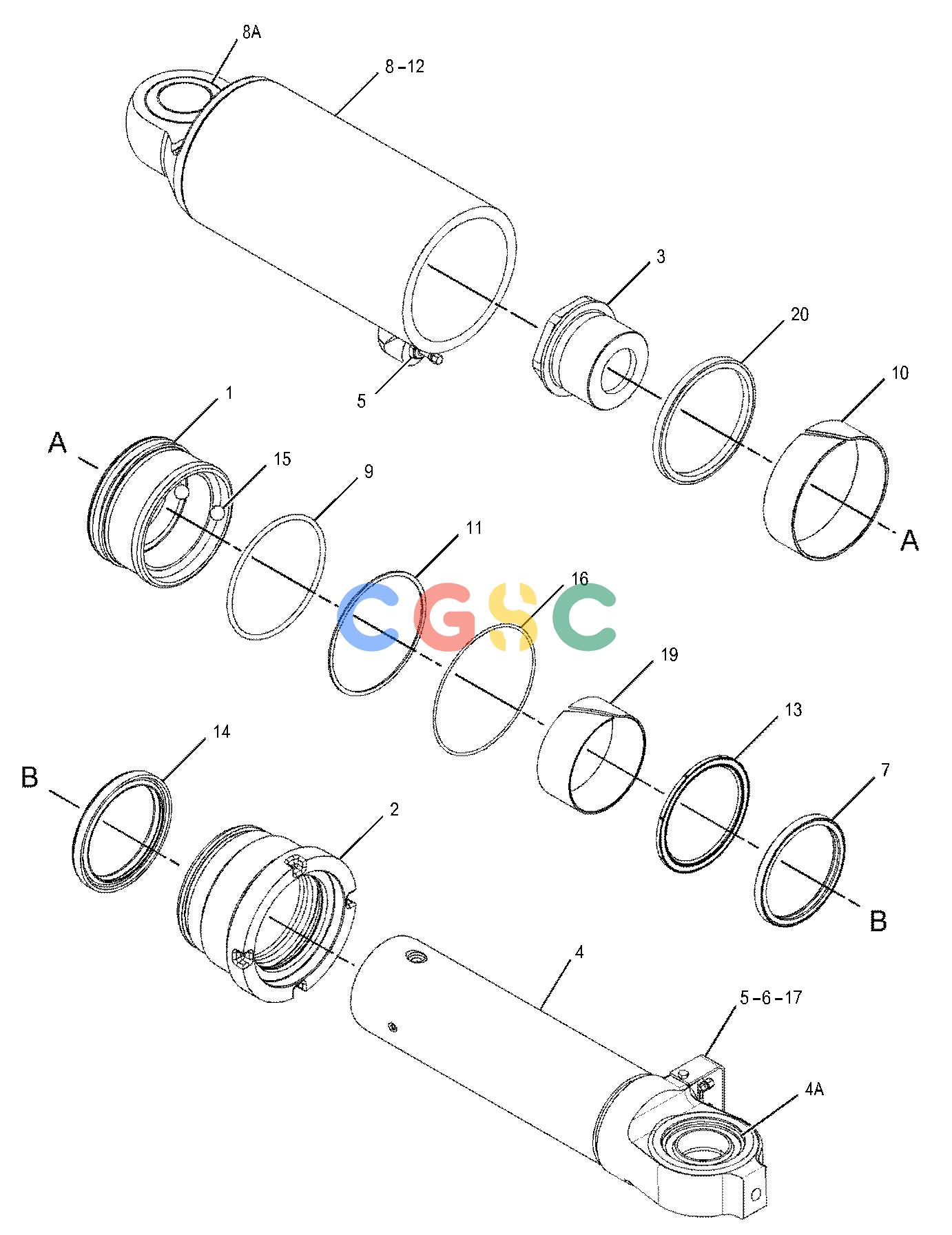

卡特零件查询（730C） 341-4122: CYLINDER GP-SUSPENSION
广数供应链运营团队, 15 02月, 2025，浏览：
964 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 200-4290 | [1] | PISTON | |
| 2. | 200-4291 | [1] | HEAD | |
| 3. | 201-1311 | [1] | RETAINER | |
| 4. | 226-9768 | [1] | ROD AS | |
| 4A. | 6V-5003 | [1] | BEARING | |
| 5. | 440-2667 | [3] | VALVE AS | |
| | | | (EACH INCLUDES) |
| | 440-2668 | [1] | CORE-VALVE | |
| | 242-4313 | [1] | SEAL-O-RING | |
| 6. | 266-5945 | [1] | PLATE-COVER | |
| 7. | 341-3191J | [1] | SEAL-U-CUP | |
| 8. | 364-1371 | [1] | CYLINDER AS | |
| 8A. | 6V-5003 | [1] | BEARING | |
| | 6V-5839 | [1] | WASHER(11X21X2.5-MM THK) | |
| | 8C-3229 | [1] | RING-RETAINING | |
| | 8T-1159M | [1] | BOLT-SOCKET HEAD(M10X1.5X25-MM) | |
| 9. | 095-1633J | [1] | SEAL-O-RING | |
| 10. | 116-3589J | [1] | RING | |
| 11. | 198-2643J | [1] | RING-BACKUP | |
| 12. | 268-6488 | [1] | FILM-WARNING(HIGH PRESSURE CYLINDER) | |
| 13. | 335-8964J | [1] | SEAL AS-BUFFER | |
| 14. | 335-8966J | [1] | SEAL-WIPER | |
| 15. | 4B-9786 | [2] | BALL | |
| 16. | 8F-8733J | [1] | SEAL-O-RING | |
| 17. | 8T-4171M | [2] | BOLT(M6X1X12-MM) | |
| 19. | 9X-3579J | [1] | RING-WEAR | |
| 20. | 9X-3601J | [1] | SEAL AS | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 416-0092J | [1] | KIT-HYD CYLINDER SEAL | |
| | | | (INCLUDES RINGS & SEALS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
