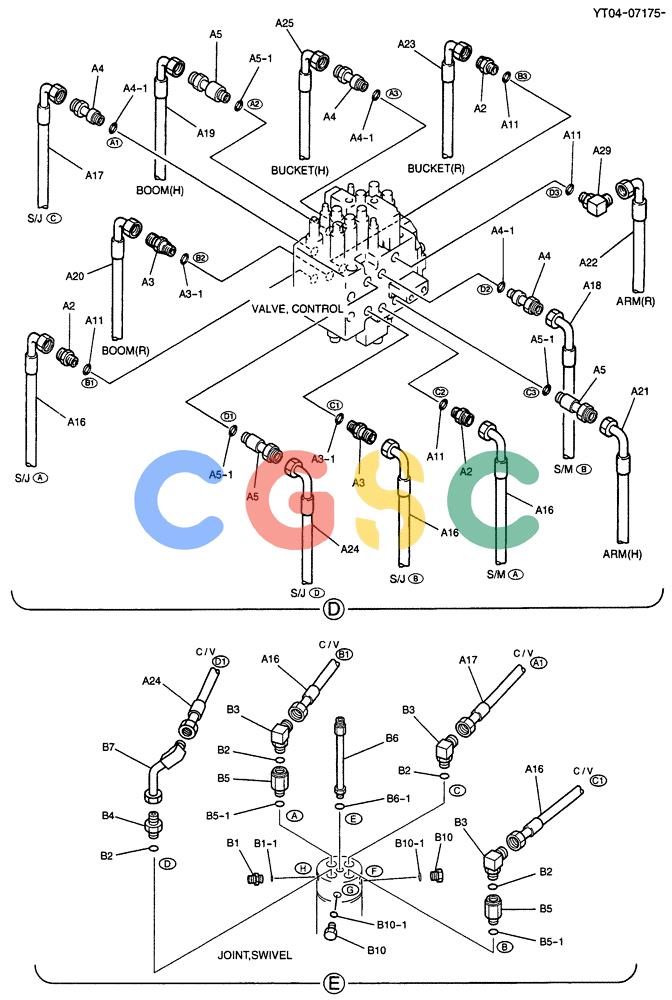

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-022[02]) - HYD LINES, UPP (MAIN) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
873 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT03H00027F1 | [1] | HYD LINES, UPP | |
| A1. | 2444Z3713 | [1] | HYD CONNECTOR | KOB |
| A1-1. | ZD12P01800 | [1] | O-RING | KOB |
| A2. | YT19H01016P1 | [3] | CONNECTION | KOB Superseded by part number: ZA28F18008 |
| A3. | YT03H01028P1 | [2] | CONNECTION | KOB |
| A4. | YT03H01053P1 | [3] | CONNECTION | KOB |
| A5. | YT03H01054P1 | [3] | CONNECTION | KOB |
| A7. | YT03H01036P1 | [2] | CLAMP | KOB |
| A8. | YT03H01021P1 | [1] | CLAMP | KOB |
| A9. | YT03H01031P1 | [1] | CLAMP | KOB |
| A10. | YT32H01030P1 | [6] | BUSHING | KOB |
| A12. | ZS18C08040 | [4] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| A13. | YT03H01041P1 | [1] | CLAMP | KOB |
| A14. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| A15. | YT03H01040P1 | [2] | GROMMET | KOB |
| A16. | YT03H01080D1 | [3] | HOSE | KOB |
| A17. | YT03H01080D2 | [1] | HOSE | KOB |
| A18. | YT03H01080D3 | [1] | HOSE | KOB |
| A19. | YT03H01082D6 | [1] | HOSE | KOB |
| A20. | YT03H01082D7 | [1] | HOSE | KOB |
| A21. | YT03H01082D8 | [1] | HOSE | KOB |
| A22. | YT03H01082D3 | [1] | HOSE | KOB |
| A23. | YT03H01082D9 | [1] | HOSE | KOB |
| A24. | YT03H01080D4 | [1] | HOSE | KOB |
| A25. | YT03H01082D1 | [1] | HOSE | KOB |
| A26. | ZW16H12000 | [1] | WASHER | KOB |
| A27. | YT03H01035P1 | [1] | ROD | KOBBOLT |
| A28. | ZN18C12010 | [4] | NUT | KOB |
| A29. | YT19H01015P1 | [3] | ELBOW | KOB Superseded by part number: ZA38F18008 |
| . . | YT19H00013F1 | [1] | HYD LINES, SWIVEL | |
| B1. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB |
| B1-1. | ZD12P01100 | [1] | O-RING | KOB |
| B5. | YR03H01121P1 | [2] | CONNECTION | KOB |
| B6. | YR19H01004P1 | [1] | CONNECTION | KOB |
| B6-1. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| B7. | YT19H01006P1 | [1] | TUBE | KOB |
| B10. | ZE72X06000 | [2] | PLUG | KOB |
