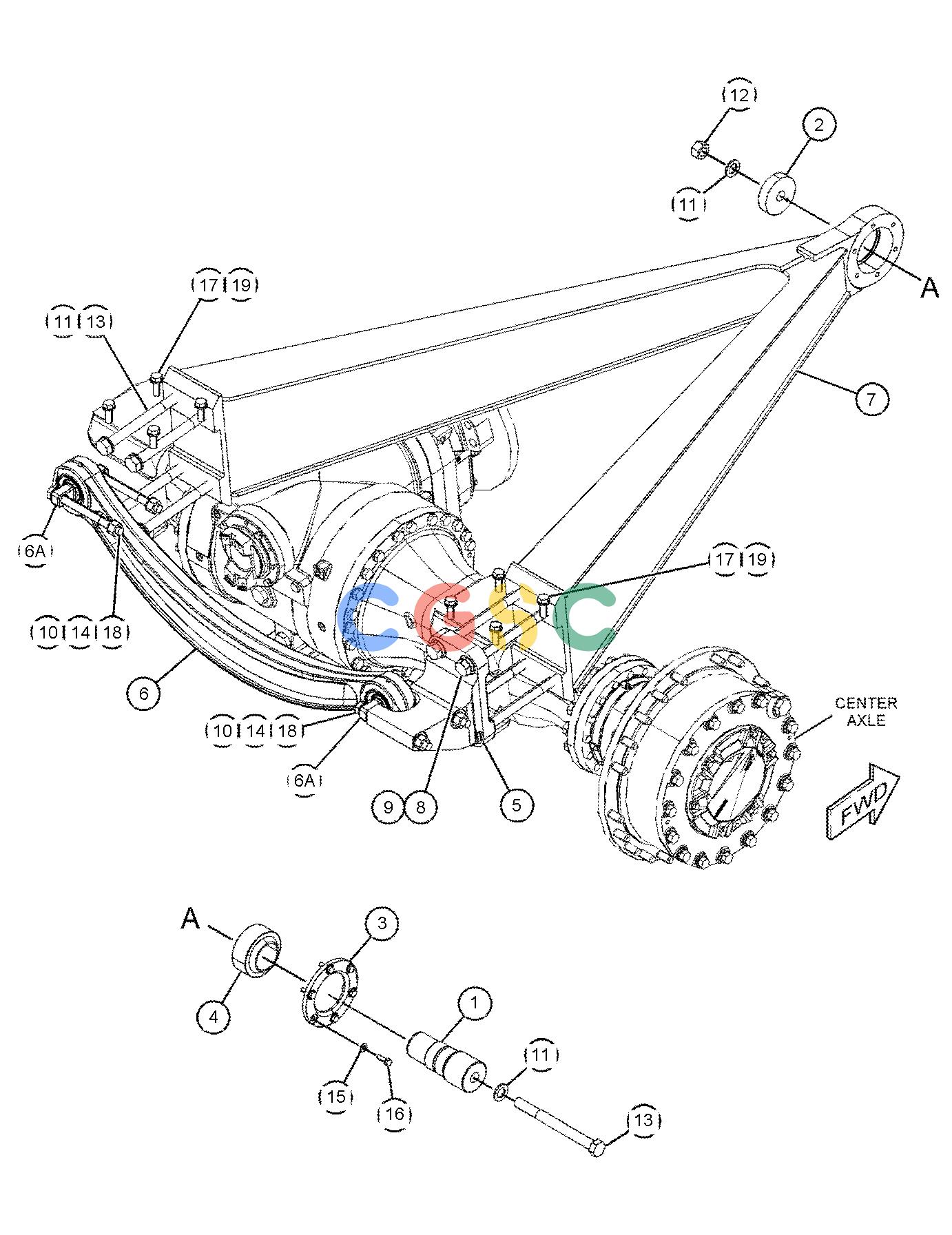

卡特零件查询（730C） 392-3175: FRAME GP-CENTER SUSPENSION
广数供应链运营团队, 15 02月, 2025，浏览：
122 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 554-8864 | [1] | PIN-SUSPENSION | |
| 2. | 155-0198 | [1] | WASHER(26X100X25-MM THK) | |
| 3. | 155-0385 | [1] | RING-CLAMP | |
| 4. | 155-3537 | [1] | BEARING | |
| 5. | 197-3120 | [1] | BRACKET-STABILIZER | |
| 6. | 393-7803 | [1] | ROD AS(STABILIZER) | |
| 6A. | 148-5563 | [2] | BEARING-SPHERICAL | |
| | 393-7801 | [1] | ROD(STABILIZER) | |
| 7. | 563-9050 | [1] | FRAME AS | |
| 8. | 152-0604M | [4] | BOLT(M24X3X300-MM) | |
| 9. | 233-6977 | [4] | WASHER-HARD(26X40X8-MM THK) | |
| 10. | 6V-7742M | [4] | NUT-FULL(M20X2.5-THD) | |
| 11. | 6V-8237 | [6] | WASHER(26X44X4-MM THK) | |
| 12. | 7X-0851M | [1] | NUT(M24X3-THD) | |
| 13. | 8T-0367M | [5] | BOLT(M24X3X260-MM) | |
| 14. | 8T-3282 | [8] | WASHER-HARD(22X35X3.5-MM THK) | |
| 15. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 16. | 8T-4195M | [6] | BOLT(M10X1.5X30-MM) | |
| 17. | 8T-7338M | [8] | BOLT(M16X2X45-MM) | |
| 18. | 8T-7505M | [4] | BOLT(M20X2.5X220-MM) | |
| 19. | 9X-8257 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
