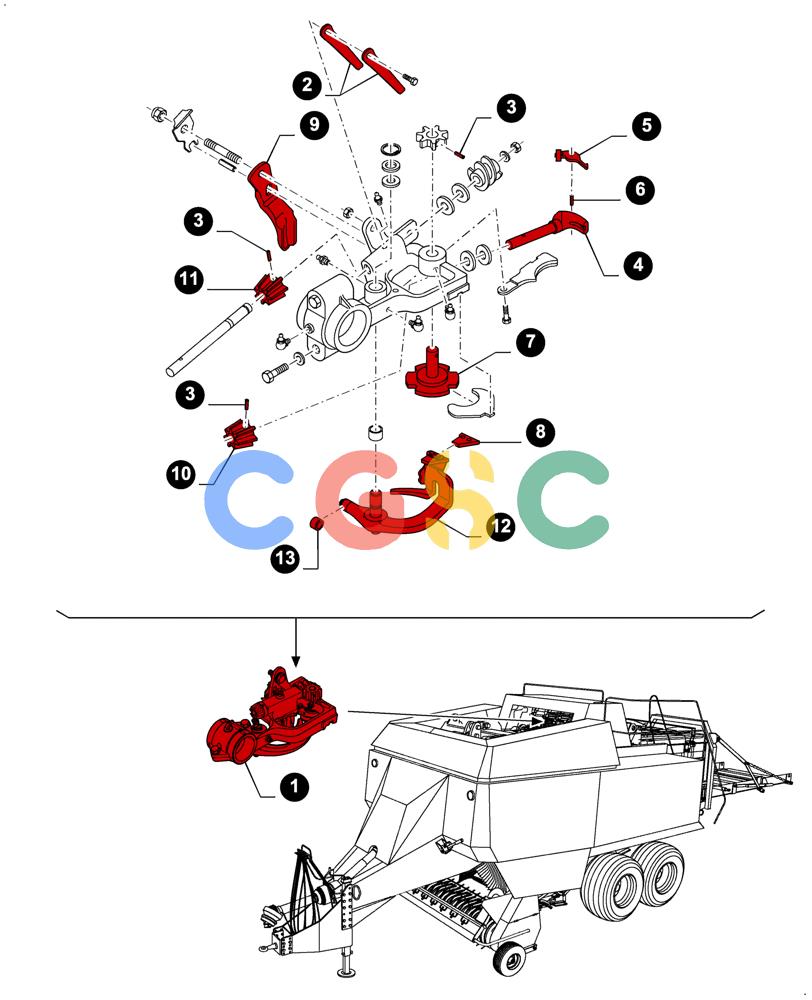

凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (00.00LB006[01]) - MAINTENANCE PARTS, KNOTTERS - C479 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
834 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84078898
|
[1] |
KNOTTER
|
ZED
(2-13) Superseded by part number: 84819572
|
| 2. |
9838785
|
[3] |
SPRING CLIP
|
ZED
Superseded by part number: 84401492
|
| 3. |
9838812
|
[3] |
COILED PIN
|
ZED
|
| 4. |
9838789
|
[1] |
BILL HOOK
|
ZED
(5, 6) Superseded by part number: 87645121, 84143494
|
| 5. |
9838791
|
[1] |
BILL HOOK
|
ZED
|
| 6. |
9838790
|
[1] |
PIN,5mm OD x 16mm L
|
ZED
|
| 7. |
84790414
|
[1] |
DISC
|
ZED
|
| 8. |
9838803
|
[1] |
KNIFE,48mm L x 27mm W x 2mm Thk
|
ZED
|
| 9. |
9838783
|
[1] |
CAM
|
ZED
|
| 10. |
9838813
|
[1] |
GEAR
|
ZED
Superseded by part number: 87620494
|
| 11. |
9838815
|
[1] |
GEAR
|
ZED
|
| 12. |
84819568
|
[1] |
ARM
|
ZED
(8, 13) Superseded by part number: 87728047
|
| 13. |
9838802
|
[1] |
ROLLER
|
ZED
|
