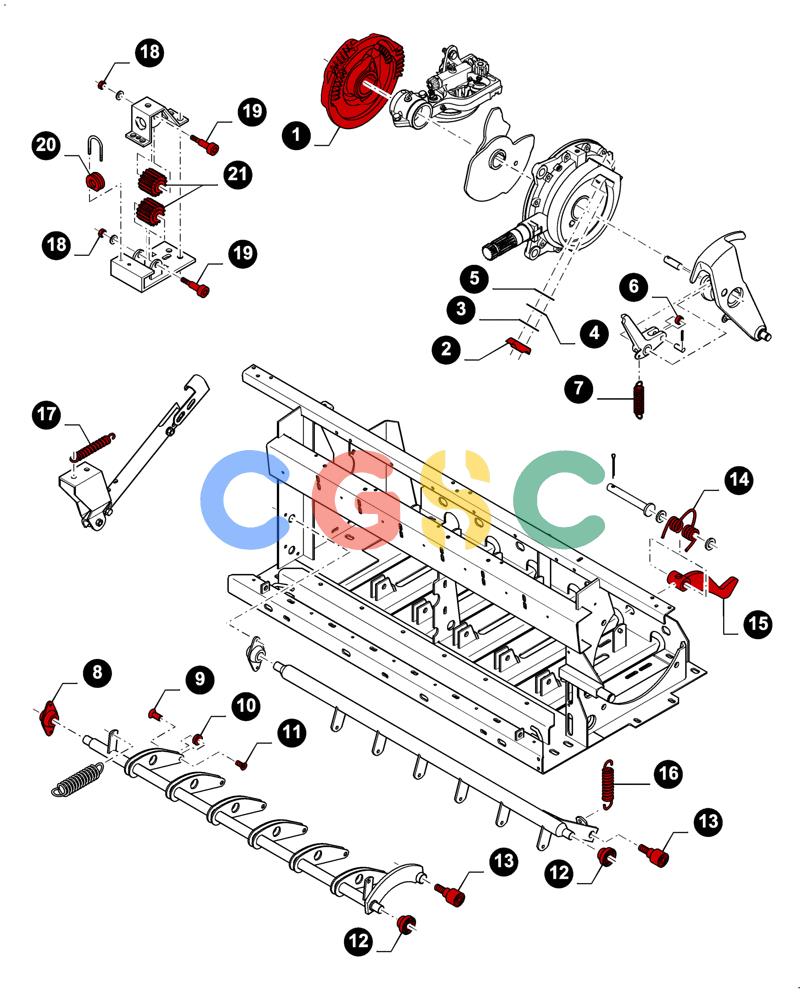

凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (00.00LB008[01]) - MAINTENANCE PARTS, KNOTTERS - GEARBOX, TWINE TENSIONER, TRIP MECHANISM & TUCKER ARM Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
970 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84019174
|
[1] |
CAM
|
ZED
|
| 2. |
84100758
|
[1] |
INSERT
|
ZED
, Serial Range: -C573 Superseded by part number: 87336142
|
| 2. |
87336142
|
[1] |
INSERT
|
ZED
, Start Serial: D574
|
| 3. |
84100757
|
[2] |
SHIM,0.5mm Thk
|
ZED
|
| 4. |
84100756
|
[1] |
SHIM,0.4mm Thk
|
ZED
|
| 5. |
84100755
|
[1] |
SHIM,0.3mm Thk
|
ZED
|
| 6. |
84400783
|
[1] |
ROLLER
|
ZED
|
| 7. |
84806601
|
[1] |
SPRING,Extension, 28.399mm OD x 108mm L
|
ZED
|
| 8. |
9837806
|
[1] |
FLANGED BEARING,25mm ID
|
ZED
|
| 9. |
84607927
|
[6] |
SCREW,#10 - 32 x 0.55",
|
ZED
|
| 10. |
9838236
|
[6] |
ROLLER
|
ZED
Superseded by part number: 47508395
|
| 11. |
9838237
|
[6] |
HEX SOC SCREW,CSS, #10 - 32 x 1/2"
|
ZED
|
| 12. |
84817518
|
[2] |
BALL BEARING,25mm ID x 47mm OD x 12mm W
|
ZED
|
| 13. |
9838366
|
[2] |
ROLLER,32mm OD x 40mm L
|
ZED
|
| 14. |
84806594
|
[1] |
SPRING
|
ZED
|
| 15. |
84021708
|
[1] |
SUPPORT
|
ZED
|
| 16. |
9838359
|
[1] |
SPRING
|
ZED
|
| 17. |
84806599
|
[1] |
SPRING
|
ZED
Upper
|
| 17. |
84807327
|
[1] |
SPRING
|
ZED
Lower
|
| 18. |
280136
|
[1] |
NUT,3/8"-16, G8
|
WIN
, Serial Range: -C547
|
| 18. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
, Start Serial: D548
|
| 19. |
84022924
|
[1] |
STEP BOLT,3/8" - 16 x 2.17"
|
ZED
, Serial Range: -C547
|
| 19. |
120070
|
[1] |
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
|
NH
, Start Serial: D548
|
| 20. |
84429814
|
[1] |
GUIDE BUSHING
|
ZED
, Serial Range: -C547
|
| 20. |
87331610
|
[1] |
GUIDE
|
ZED
, Start Serial: D548
|
| 21. |
9838895
|
[1] |
GEAR
|
ZED
Z= 16, Serial Range: -C547
|
| 21. |
87382295
|
[2] |
GEAR
|
ZED
Z= 17, Start Serial: D548
|
