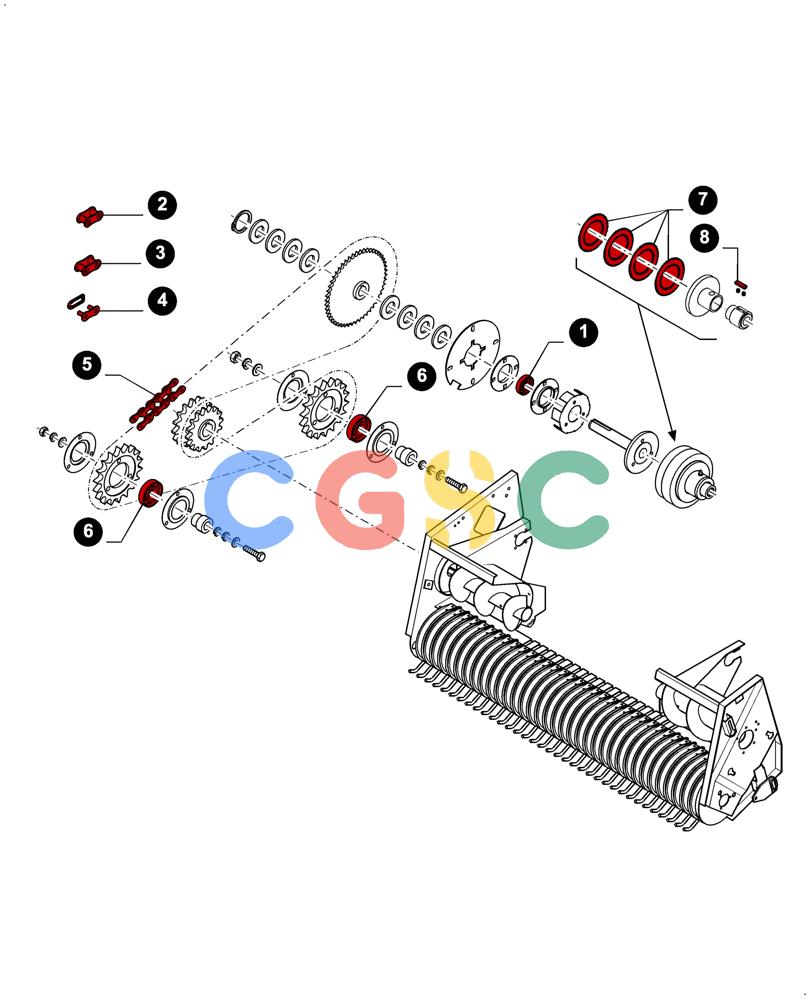

凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (00.00LB012[01]) - MAINTENANCE PARTS, ROTOR CUTTER - PICK-UP MAIN DRIVE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
1027 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
552945
|
[1] |
BEARING ASSY,40 mm ID x 80 mm OD x 30.2 mm
|
NH
Superseded by part number: 412441
|
| 2. |
86595251
|
[1] |
LINK,Chain, 19.05mm Pitch
|
ZED
|
| 3. |
ST205A
|
[1] |
BEARING, BALL,35 mm ID x 72 mm OD x 17 mm
|
IH
Superseded by part number: 84330083
|
| 4. |
165590
|
[1] |
CONNECTING LINK
|
PA
Superseded by part number: 241-1316
|
| 5. |
84807354
|
[1] |
CHAIN,Roller, 122 Links x 19.05mm = 2324.1mm
|
ZED
(2, 3, 4)
|
| 6. |
443898
|
[2] |
BALL BEARING,25mm ID x 52mm OD x 15mm W
|
ZED
, Serial Range: -C575 Superseded by part number: 84188095
|
| 7. |
84026625
|
[4] |
DISC
|
ZED
Clutch
|
| 8. |
84004301
|
[3] |
REPAIR KIT
|
ZED
Pawl, Contains 1 pawl & 1 spring
|
