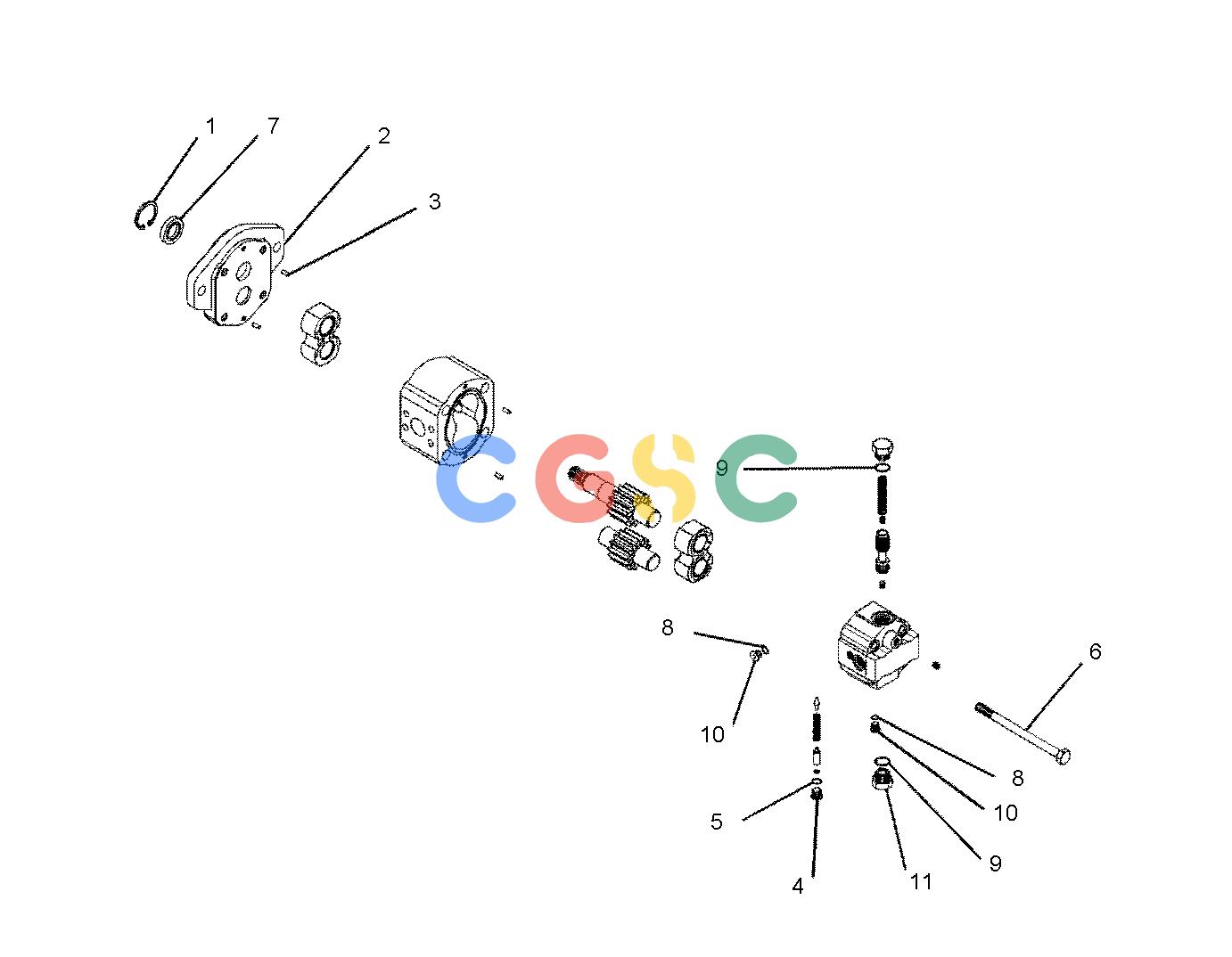

卡特零件查询（730C） 176-9781: PUMP GP-GEAR
广数供应链运营团队, 15 02月, 2025，浏览：
186 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 199-7560 | [1] | RING-RETAINING | |
| 2. | 145-6899 | [1] | FLANGE | |
| 3. | 099-3095 | [4] | DOWEL | |
| 4. | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 5. | 3J-1907J | [1] | SEAL-O-RING | |
| 6. | 145-7231M | [4] | BOLT(M10X1.5X135-MM) | |
| 7. | 135-5935H | [1] | SEAL-SHAFT | |
| 8. | 3J-7354J | [2] | SEAL-O-RING | |
| 9. | 2M-9780J | [2] | SEAL-O-RING | |
| 10. | 9S-4182 | [2] | PLUG(7/16-20-THD) | |
| 11. | 9S-4190 | [1] | PLUG-O-RING(7/8-14-THD) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 145-6902J | [1] | KIT-PUMP CONTROL(PRESSURE COMPENSATOR VALVE) | |
| | 145-6905H | [1] | KIT-SEAL(SECONDARY STEERING PUMP) | |
| | | | (ALSO INCLUDES O-RING SEALS, SHAFT SEALS, E-RINGS & BACKUP RINGS) |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
