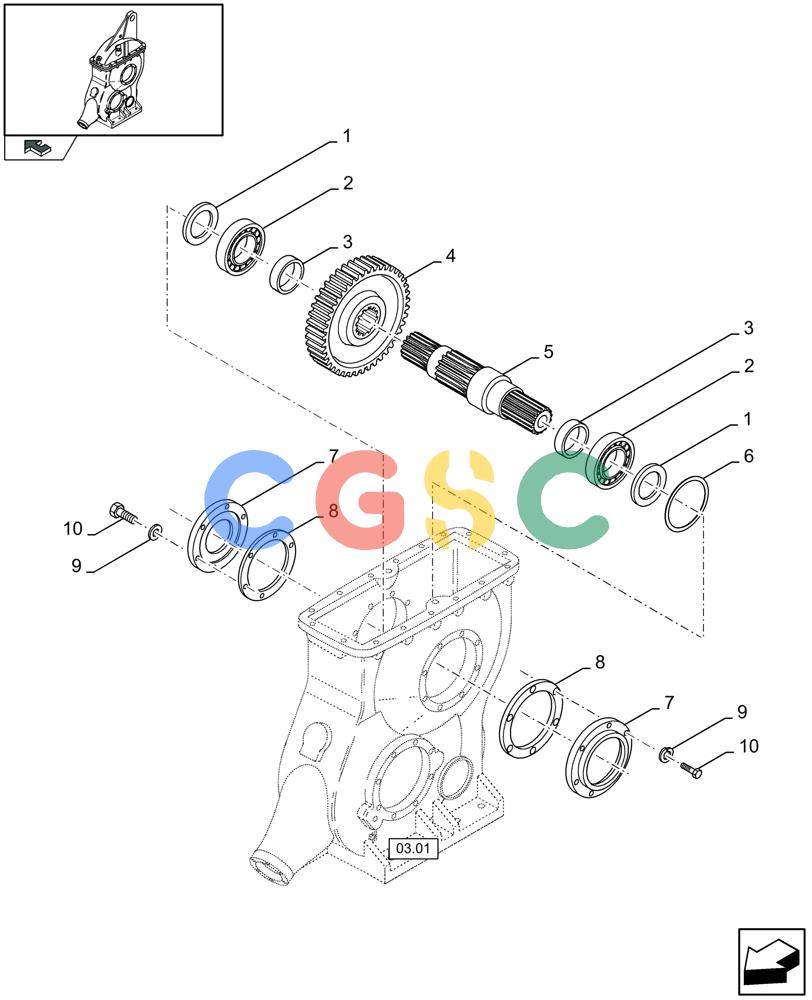

凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (03.04[01]) - MAIN GEARBOX Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
157 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84005556
|
[2] |
RING
|
ZED
Superseded by part number: 920018147
|
| 2. |
84000813
|
[2] |
ROLLER BEARING
|
ZED
Superseded by part number: 24903750
|
| 3. |
84074457
|
[2] |
SPACER
|
ZED
, Serial Range: -C662
|
| 3. |
87718406
|
[1] |
SPACER
|
ZED
, Start Serial: D663
|
| 4. |
84074448
|
[1] |
GEAR
|
ZED
|
| 5. |
84074449
|
[1] |
SHAFT
|
ZED
, Serial Range: -C411 Superseded by part number: 87718405
|
| 5. |
84800769
|
[1] |
SHAFT
|
ZED
, Serial Range: -F412662 Superseded by part number: 87718405
|
| 5. |
87718405
|
[1] |
SHAFT
|
ZED
, Start Serial: D663
|
| 6. |
84074470
|
[1] |
SHIM
|
ZED
|
| 7. |
84074458
|
[2] |
COVER
|
ZED
|
| 8. |
84074454
|
[2] |
GASKET,0.2mm Thk
|
ZED
|
| 9. |
80412123
|
[16] |
LOCK WASHER
|
ZED
12.4 MM Superseded by part number: 412123
|
| 10. |
80300389
|
[16] |
BOLT,M12 x 35mm
|
ZED
M12 x 35 Superseded by part number: 628-12035
|
