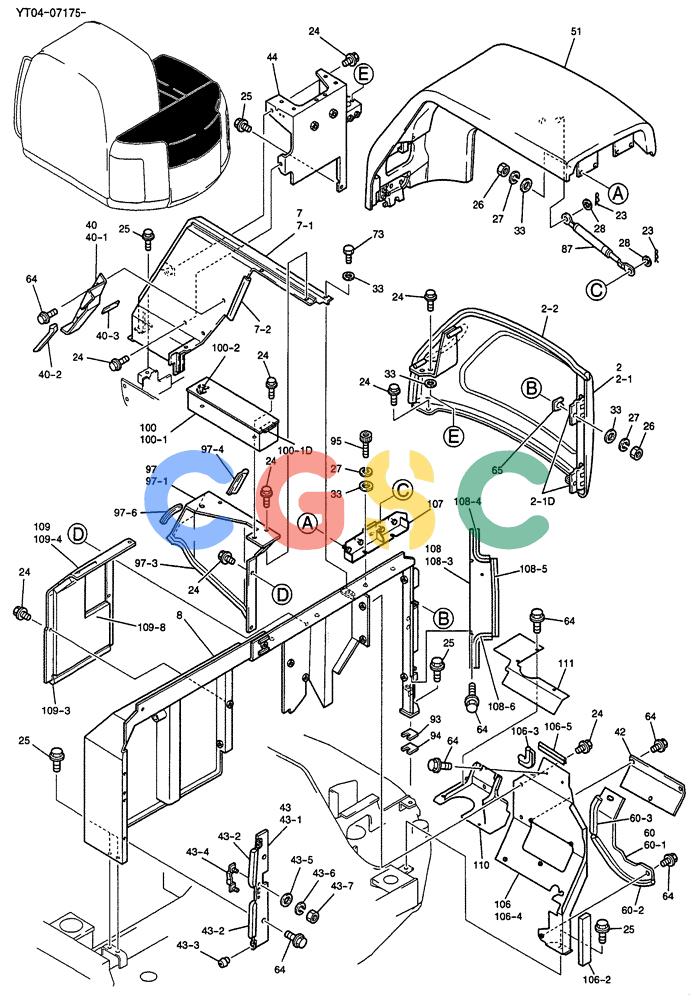

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-042[01]) - GUARD ASSY, WITHOUT NIBBLER & BREAKER (BOOM & ARM SAFETY) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
257 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT21C00010F6 | [1] | GUARD INSTAL | |
| 51. | YT21C01303F3 | [1] | COVER | KOBASSY, SEE FIG. 01-43 |
| . . | YT21C00010FC | [1] | GUARD INSTAL (REQUIRED) | |
| 2. | YT21C01283F1 | [1] | PANEL ASSY. | KOB |
| 2-1. | YT21C01317P1 | [1] | PANEL | KOB |
| 2-1D. | YT21C01340P1 | [2] | HINGE | KOB |
| 2-2. | YT21C01039D2 | [1] | WEATHERSTRIP | KOB |
| 7. | YT21C01157F1 | [1] | GUARD ASSY. | KOB |
| 7-1. | YT21C01350P2 | [1] | GUARD | KOB |
| 7-2. | YT21C01164D3 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 8. | YT21C01278F1 | [1] | GUARD | KOBGUARD ASSY, SEE FIG. 01-044 |
| 14. | YT21C01368P1 | [1] | STAY | KOBSTAY |
| 15. | YT21C01291P1 | [1] | STAY | KOBSTAY |
| 16. | YX21C01204P1 | [1] | STAY | KOBSTAY |
| 19. | YT21C01323P1 | [1] | STRIKER PLATE | KOB |
| 21. | YW21C01180P1 | [1] | GAS STRUT | KOBGAS |
| 22. | YT21C01005P1 | [2] | HINGE | KOB |
| 23. | 2419R9D2 | [6] | COTTER PIN | KOBSNAP |
| 24. | ZM32C12025 | [16] | BOLT | KOBSEMS |
| 25. | ZM32C12030 | [15] | BOLT | KOBSEMS |
| 26. | ZN18C12010 | [6] | NUT | KOB |
| 27. | ZW26X12000 | [10] | WASHER | KOB |
| 28. | ZW16P08000 | [7] | WASHER | KOBID 08 x OD 17 x Th 1.6mm |
| 29. | PB06C01059P1 | [1] | WASHER | KOB |
| 30. | YT21C01179D1 | [1] | SHIM | KOB(1.2) |
| 32. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 33. | 2418T10357 | [13] | WASHER | KOB Superseded by part number: 2418T12345 |
| 38. | ZS18C12045 | [2] | SCREW,Hex, M12 x 45mm | KOBCAP |
| 40. | YT21C01106F1 | [1] | GUARD ASSY. | KOB |
| 40-1. | YT21C01130P3 | [1] | GUARD | KOB |
| 40-2. | PY01P01019DP | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 40-3. | YR21C01288P1 | [1] | RUBBER | KOB |
| 42. | YT21C01289P1 | [1] | COVER | KOB |
| 43. | YT21C01097F1 | [1] | PLATE ASSY. | KOB |
| 43-1. | YT21C01134P4 | [1] | COVER | KOB Superseded by part number: YT21C01558P1 |
| 43-2. | YT21C01164D7 | [2] | WEATHERSTRIP | KOB |
| 43-3. | YT21C01143P1 | [2] | RUBBER SLEEVE | KOB |
| 43-4. | YT21C01183P1 | [1] | BRACKET | KOB |
| 43-5. | YR21C01161P1 | [2] | WASHER,9mm ID x 22mm OD x 2.3mm Thk | KOB |
| 43-6. | ZW26X08000 | [2] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| 43-7. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 44. | YT21C01314P2 | [1] | BRACKET | KOB |
| 48. | 2418T12753 | [1] | WASHER | KOB |
| 58. | YT21C01146F1 | [1] | COVER ASSY | KOB |
| 58-1. | YT21C01126P2 | [1] | COVER | KOB |
| 58-2. | YT21C01173P1 | [1] | FOAM INSULATION | KOB |
| 60. | YT21C01286F1 | [1] | COVER ASSY | KOB |
| 60-1. | YT21C01266P1 | [1] | COVER | KOB |
| 60-2. | PH21C01136D3 | [1] | WEATHERSTRIP | KOB |
| 60-3. | YT21C01164D5 | [1] | WEATHERSTRIP | KOB |
| 61. | YT21C01212P1 | [1] | STRIKER PLATE | KOB |
| 62. | YR21C01123P1 | [1] | COLLAR | KOB |
| 64. | YR21C01159P1 | [20] | BOLT | KOBSEMS |
| 65. | YN21C01175D2 | [2] | SHIM | KOB(2.3) |
| 69. | YN21C01174D1 | [2] | SPACER | KOB |
| 73. | ZS18C12025 | [1] | SCREW,Hex, M12 x 25mm | KOBCAP |
| 83. | YT21C01321P2 | [1] | RUBBER | KOB |
| 84. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOB |
| 86. | YT21C01319P1 | [1] | SPACER | KOB |
| 87. | YW21C01302P1 | [1] | GAS STRUT | KOBGAS |
| 88. | 2419R9D4 | [1] | COTTER PIN | KOBSNAP |
| 89. | YT21C01322P2 | [1] | RUBBER | KOB |
| 93. | YN21C01757D2 | [1] | SHIM | KOB(2.0) |
| 94. | YN21C01757D3 | [1] | SHIM | KOB(3.2) |
| 95. | ZS28C12030 | [2] | SCREW,Hex Socket Head, M12 x 30mm | KOBCAP |
| 100. | YT21C01198F1 | [1] | BOX | KOBASSY |
| 100-1. | YT21C01197P1 | [1] | BOX | KOB |
| 100-1D. | 2420T7813 | [1] | HINGE | KOB |
| 100-2. | PH21C01132P2 | [1] | LOCK | KOB |
| 101. | YT22C00005F3 | [1] | GUARD | KOBBONNET ASSY, SEE FIG. 01-045 |
| 102. | YT21C01274F2 | [1] | COVER | KOBASSY |
| 102-1. | YT21C01273P1 | [1] | COVER | KOB |
| 102-2. | YT21C01163D5 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 102-4. | 2416Z263D25 | [1] | RUBBER | KOB |
| 102-5. | YJ21C01146D1 | [1] | TRIM PANEL | KOB |
| 102-6. | YN21C01712D1 | [1] | WEATHERSTRIP | KOB |
| 102-7. | PM22C01013DE | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 105. | YT21C01281F2 | [1] | U-BRACKET | KOBASSY |
| 105-1. | YT21C01270P1 | [1] | BRACKET | KOB |
| 105-2. | YT21C01163D4 | [1] | WEATHERSTRIP | KOB |
| 105-3. | YT21C01117D1 | [1] | RUBBER | KOB |
| 105-4. | YT21C01160D1 | [1] | RUBBER | KOB |
| 105-5. | YT21C01473P1 | [1] | INSULATING PANEL | KOB |
| 106. | YT21C01288F2 | [1] | GUARD | KOBASSY |
| 106-2. | YT21C01150P1 | [1] | FOAM INSULATION | KOB |
| 106-3. | YW21C01057D9 | [1] | WEATHERSTRIP | KOB |
| 106-4. | YT21C01466P1 | [1] | GUARD | KOB |
| 106-5. | LE21C01070DK | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 107. | YT21C01471P1 | [1] | U-BRACKET | KOB |
| 108. | YT21C01282F2 | [1] | GUARD | KOBASSY |
| 108-3. | YT21C01493P1 | [1] | GUARD | KOB |
| 108-4. | YX21C01217D2 | [1] | INSULATING PANEL | KOB |
| 108-5. | YT21C01164D2 | [1] | WEATHERSTRIP | KOB |
| 110. | YT21C01477P1 | [1] | GUARD | KOB |
| 111. | YT21C01481P1 | [1] | PLATE | KOB |
| . . | YT21C00010FD | [1] | GUARD INSTAL (WITHOUT NIBBLER & BREAKER) | |
| 97. | YT21C01191F1 | [1] | GUARD ASSY. | KOBASSY |
| 97-1. | YT21C01192P1 | [1] | GUARD | KOB |
| 97-3. | YT21C01163D2 | [1] | WEATHERSTRIP | KOB |
| 97-4. | YR21C01168DH | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 97-6. | YT21C01037D3 | [1] | RUBBER | KOB |
| 109. | YT21C01275F4 | [1] | GUARD | KOBASSY |
| 109-3. | YT21C01039D7 | [1] | WEATHERSTRIP | KOB |
| 109-4. | YT21C01306P2 | [1] | GUARD | KOB |
| 109-8. | YT21C01485P1 | [1] | INSULATING PANEL | KOB |
