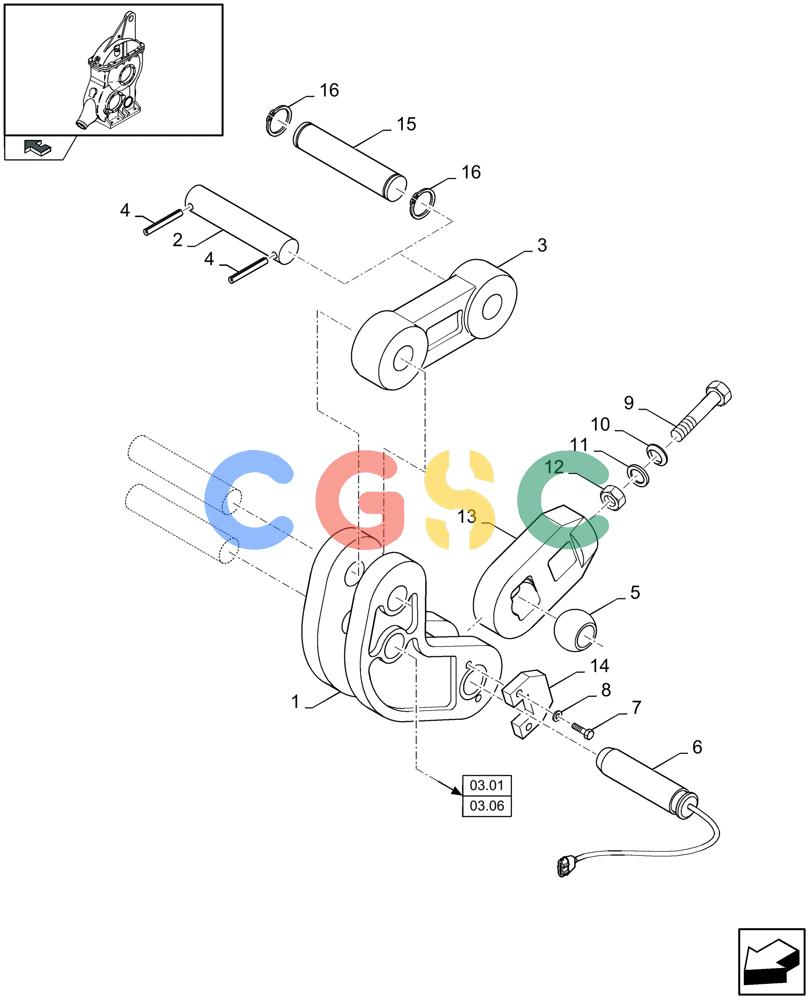

凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (03.11[01]) - PLUNGER, LOAD MEASUREMENT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
219 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84807838
|
[1] |
LEVER
|
ZED
|
| 2. |
84012870
|
[3] |
SHAFT
|
ZED
, Serial Range: -C511
|
| 3. |
84068193
|
[1] |
LEVER
|
ZED
|
| 4. |
80412071
|
[6] |
LOCK PIN
|
ZED
, Start Serial: C511 Superseded by part number: 412071
|
| 5. |
86508450
|
[1] |
BALL
|
ZED
Superseded by part number: D9NN557AA
|
| 6. |
84078757
|
[1] |
SENSOR
|
ZED
60 kN Superseded by part number: 84523156
|
| 6. |
84074551
|
[1] |
SENSOR
|
ZED
90 kN Superseded by part number: 84523153
|
| 7. |
80043127
|
[2] |
SCREW,M8 x 25mm
|
ZED
Cap, HH, CL 8.8, M8 x 1.25 x 25 Superseded by part number: 43127
|
| 8. |
80322358
|
[2] |
LOCK WASHER
|
ZED
8 MM Superseded by part number: 322358
|
| 9. |
84062747
|
[1] |
BOLT,Hex, M30 x 150mm, Cl 8.8, Full Thd
|
ZED
Superseded by part number: 84801382
|
| 9. |
84801382
|
[1] |
BOLT
|
ZED
M30 x 150, Start Serial: D436
|
| 10. |
84062741
|
[1] |
DISC,31mm ID x 56mm OD x 11.2mm W
|
ZED
|
| 11. |
84062740
|
[1] |
DISC
|
ZED
|
| 12. |
84062746
|
[1] |
THIN NUT,Thin, M30 x 3.5, Cl 05
|
ZED
|
| 13. |
84068192
|
[1] |
ARM
|
ZED
|
| 14. |
84607479
|
[1] |
CLAMP
|
ZED
|
| 15. |
87362339
|
[3] |
SHAFT
|
ZED
, Start Serial: D512
|
| 16. |
370007
|
[6] |
SNAP RING,M45, Ext
|
NH
, Start Serial: D512
|
