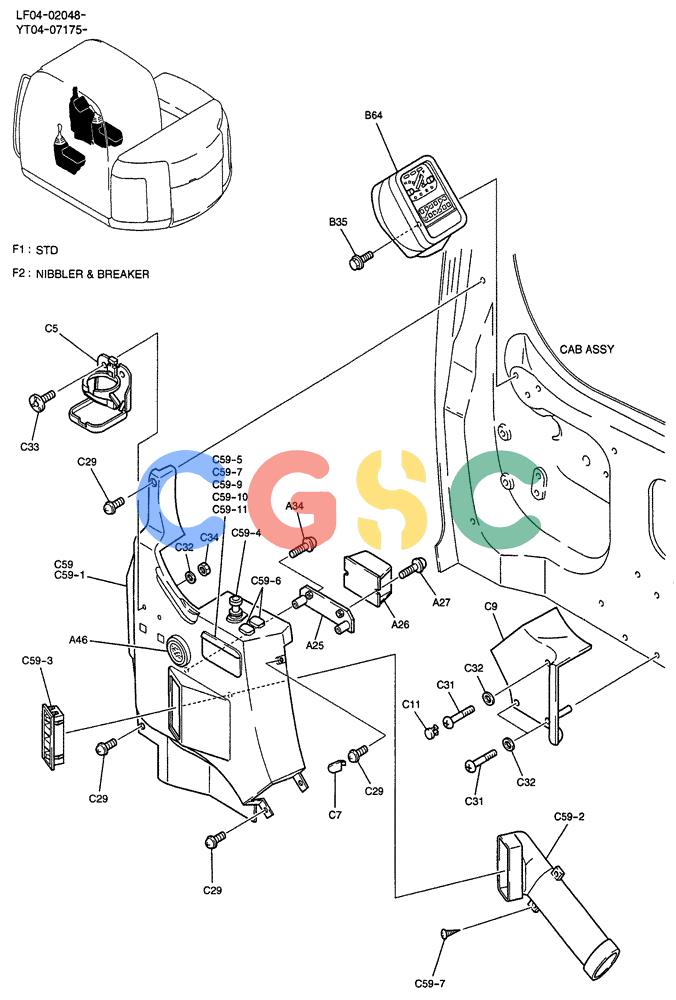

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-048[01]) - PANEL ASSY, INSTRUMENT (5 LIGHT) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
200 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT17M00012F1 | [1] | PANEL ASSY, INSTRUMENT (STD) | |
| . . | YT17M00012F2 | [1] | PANEL ASSY, INSTRUMENT (NIBBLER & BREAKER) | |
| A7. | YR17M01035P1 | [1] | U-BRACKET | KOB |
| A8. | YX17M01003P1 | [2] | BRACKET | KOB |
| A9. | 2420R1089D1 | [4] | BOLT,M5 x 10mm | KOBSEMS |
| A11. | YT54S00006P1 | [2] | SPEAKER | KOB |
| A13. | 2414T4530 | [2] | CAP | KOB(F1 ONLY) |
| A19. | ZS32T40008 | [8] | SELF-TAP SCREW | KOBCROSS |
| A21. | 2479U1190F7 | [1] | SWITCH | KOBASSY (DECEL) |
| A25. | YT17M01017P2 | [1] | BRACKET | KOB |
| A26. | YT77S00001P1 | [1] | CONVERTER,24V In - 12V Out - 2.5A | KOB(DC-DC) Superseded by part number: YT77S00011P1 |
| A27. | ZM46C06012 | [2] | SCREW | KOBSEMS, (M6 X 12) |
| A31. | ZW16K04000 | [8] | WASHER | KOB |
| A34. | ZM46C06040 | [2] | BOLT | KOBSEMS, (M6 X 40) |
| A36. | YT17M01019P2 | [1] | BRACKET | KOB |
| A37. | ZM22C10020 | [1] | BOLT | KOBSEMS |
| A38. | YN81S00001P1 | [1] | SOCKET | KOB(FOR 12V) |
| A39. | 2479U1190F32 | [1] | SWITCH | KOBASSY (SINGLE SELECT), (F2 ONLY) |
| A40. | 2479U1190F33 | [1] | SWITCH | KOBASSY (OVERLOAD INDICATE) |
| A41. | 2479U1190F20 | [1] | BEACON SWITCH | KOBASSY (ROTARY LIGHT) |
| A46. | YT58S00006P1 | [1] | HOURMETER | KOBHOUR |
| . . | YT17M00013FE | [1] | PANEL ASSY, INSTRUMENT (CLUSTER) | |
| B25. | YB17M00003F2 | [1] | PANEL ASSY (R.H.) | |
| B25-1. | YT17M01043D1 | [1] | PANEL | KOBPANEL ASSY Superseded by part number: YT17M01030F1 |
| B25-2. | YN52S00032P1 | [1] | POTENTIOMETER | KOBCab Fan Control Switch - High/Low Superseded by part number: YN52S00032P2 |
| B25-2A. | YN52S00032S001 | [1] | POTENTIOMETER | KOBFan Control Switch Superseded by part number: YN52S00032P2 |
| B25-2B. | YN52S00032S002 | [1] | KNOB | KOBFan Control Switch Superseded by part number: YN52S00032S003 |
| B25-3. | YN50S00026F2 | [1] | SWITCH | KOBASSY, KEY |
| B25-3A. | PM50S01001P1 | [1] | IGNITION KEY | KOBKEY, LOCK |
| B25-4. | YT50E00002F1 | [1] | SWITCH | KOBASSY |
| B35. | ZM22C08016 | [3] | BOLT | KOBSEMS |
| B64. | YT59S00006F2 | [1] | VACUUM GAUGE | KOBASSY, CLUSTER, SEE FIG. 01-050 |
| . . | YT17M00013FG | [1] | PANEL ASSY, INSTRUMENT (RESIN PARTS) | |
| C5. | YT17M01034P1 | [1] | HOLDER | KOB, Serial Range: YT04-07175-YT04-07578 Superseded by part number: YT17M01034P2 |
| C5. | YT17M01034P2 | [1] | HOLDER | KOB, Start Serial: YT04-07579 |
| C7. | YT17M01014P1 | [1] | CAP | KOB |
| C9. | YT03M01063P1 | [1] | COVER | KOB |
| C11. | YN03M01191D2 | [2] | CAP | KOB |
| C13. | YT03M01062P1 | [1] | COVER | KOB |
| C15. | YT17M01002P1 | [1] | PANEL | KOB |
| C16. | YT17M01003P1 | [1] | PANEL | KOB |
| C17. | YT17M01004P1 | [1] | PANEL | KOB |
| C18. | YT17M01005P1 | [1] | PANEL | KOB |
| C26. | YT17M01042D1 | [1] | PANEL | KOBPANEL Superseded by part number: YT17M01001P1 |
| C29. | ZM46C06016 | [4] | SCREW | KOBSEMS |
| C30. | ZM46C05035 | [2] | BOLT | KOBSEMS |
| C31. | YT03M01079P1 | [3] | BOLT | KOB |
| C32. | ZW16X06000 | [5] | WASHER | KOB Superseded by part number: 86588450 |
| C33. | YT17M01032P1 | [2] | BOLT | KOB |
| C34. | ZN18C06005 | [2] | NUT | KOB |
| C36. | ZM46C05012 | [2] | BOLT | KOBSEMS |
| C38. | PE17M01011D1 | [4] | CAP | KOBCAP |
| C39. | ZM46C05016 | [13] | BOLT,Phillip, M5 x 0.8 x 15mm | KOBSEMS |
| C40. | YN20M01092D2 | [2] | BOLT | KOBSEMS |
| C41. | YT21C01141P1 | [2] | SHEET | KOBRUBBER |
| C42. | YN17M01053P1 | [2] | NUT | KOB |
| C43. | YT17M01020P1 | [2] | INDICATOR | KOB |
| C59. | YT17M01031F1 | [1] | COVER ASSY | KOB |
| C59-1. | YT17M01028P1 | [1] | COVER | KOB |
| C59-2. | YT20M01008P1 | [1] | DUCT | KOB |
| C59-3. | YN20M01011P1 | [1] | GRILLE | KOB |
| C59-4. | 2421R180F1 | [1] | CIGARETTE LIGHTER | KOB Superseded by part number: YN81S00003P1 |
| C59-5. | YT03M01032P1 | [1] | TRAY ASSY. | KOB |
| C59-7. | ZS32T50014 | [3] | SCREW | KOBTAPPING |
| C59-9. | YT03M01033S012 | [1] | BRACKET | KOB |
| C59-10. | YT03M01033S013 | [1] | BRACKET | KOB |
| C59-11. | ZS32T50010 | [1] | SCREW | KOBTAPPING |
