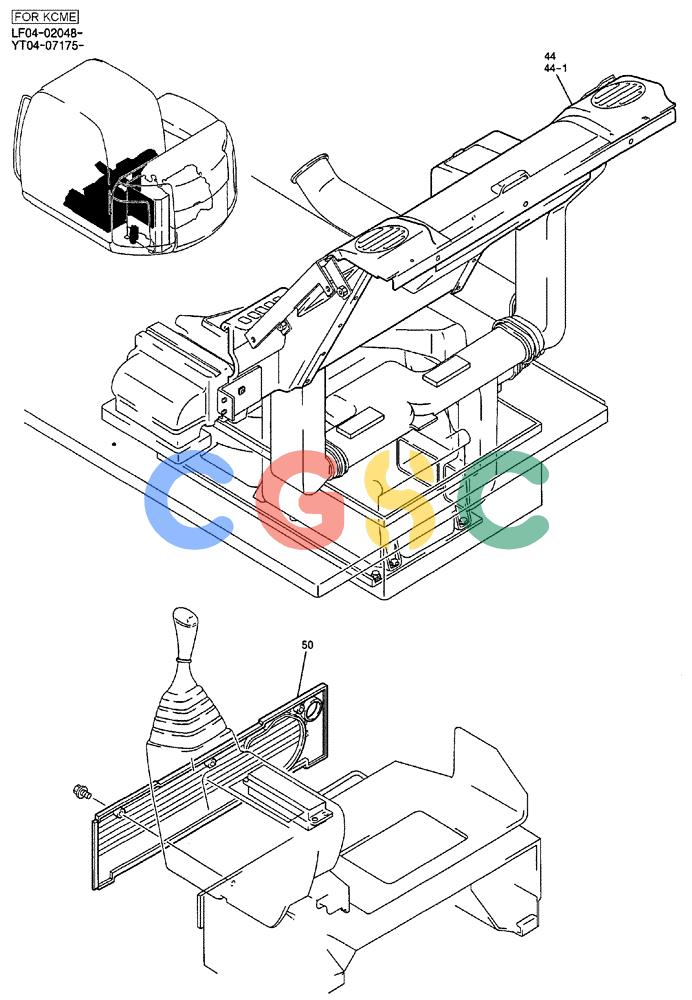

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-049[01]) - PANEL ASSY, INSTRUMENT (AIR-CON) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
422 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT17M00013F7 | [1] | PANEL | KOBASSY, INSTRUMENT |
| 44. | YT20M01073F1 | [1] | COVER ASSY | KOB |
| 44-1. | YT20M01035F1 | [1] | COVER | KOBASSY |
| 44-1A. | YT20M01087P1 | [1] | COVER | KOB |
| 44-1B. | YT20M01088P1 | [1] | COVER | KOB |
| 44-1C. | YT20M01089P1 | [1] | COVER | KOB |
| 44-1D. | YT20M01090P1 | [1] | COVER | KOB |
| 44-1E. | YT20M01095P1 | [1] | COVER | KOB |
| 44-1G. | YT20M01094P1 | [1] | PIN | KOB |
| 44-1L. | YT20M01035S011 | [2] | CATCH | KOB |
| 44-1M. | YT20M01035S012 | [4] | SCREW | KOBMACHINE Superseded by part number: ZS32T50010 |
| 44-1N. | YT20M01035S013 | [16] | SCREW | KOBMACHINE |
| 44-2. | YN20M01055P1 | [2] | GRILLE | KOB |
| 44-3. | YN20M01024P1 | [2] | SUPPORT | KOB |
| 44-4. | YN17M01033D1 | [4] | SCREW | KOBMACHINE |
| 44-5. | ZW16P05000 | [4] | WASHER | KOB |
| 44-6. | ZW26X05000 | [4] | LOCK WASHER | KOBLOCK |
| 44-7. | ZN18C05004 | [4] | NUT | KOB |
| 44-8. | PY03M01102P1 | [1] | GROMMET | KOB |
| 44-9. | YT20M01040P1 | [5] | BOLT | KOB |
| 44-10. | YT20M01041P1 | [5] | GROMMET | KOB |
| 44-13. | YN60C01036P1 | [1] | GROMMET | KOB |
| 50. | YT03M01061P1 | [1] | COVER | KOB |
| 55. | YT20M01103P1 | [1] | BRACKET | KOB |
| 57. | YT20M01042P1 | [5] | CATCH | KOB |
| 58. | ZM22C08020 | [3] | BOLT | KOBSEMS |
