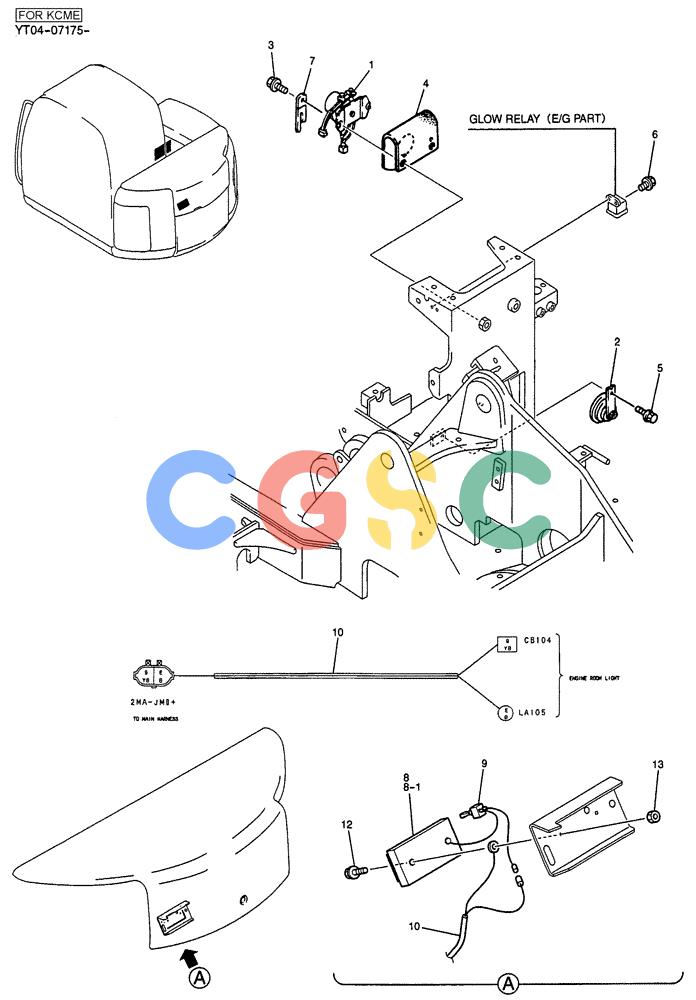

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-061) - ELEC ASSY, UPP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
473 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT03E00006F2 | [1] | ELEC ASSY, UPP | |
| 1. | YN24S00003F1 | [1] | RELAY | KOBASSY, BATTERY |
| 2. | CM53S00002F1 | [1] | HORN | KOBASSY |
| 3. | ZM22C08030 | [2] | BOLT | KOBSEMS |
| 4. | YT03E01006P1 | [1] | RUBBER | KOB |
| 5. | ZM22C08020 | [1] | BOLT | KOBSEMS |
| 6. | ZM61C06016 | [2] | BOLT | KOBSEMS |
| 7. | 2432R233D2 | [1] | CLIP | KOB37x12x40mm |
| 8. | 4056R4F1 | [1] | LAMP | KOBASSY, ROOM |
| 8-1. | 4056Z19D1 | [1] | LIGHT | KOB |
| 9. | YT50S00005P1 | [1] | SWITCH | KOB |
| 10. | YT13E01079P1 | [1] | HARNESS | KOB |
| 12. | ZM41C05012 | [2] | BOLT | KOBSEMS |
| 13. | ZM18C05004 | [2] | SCREW | KOBSEMS |
