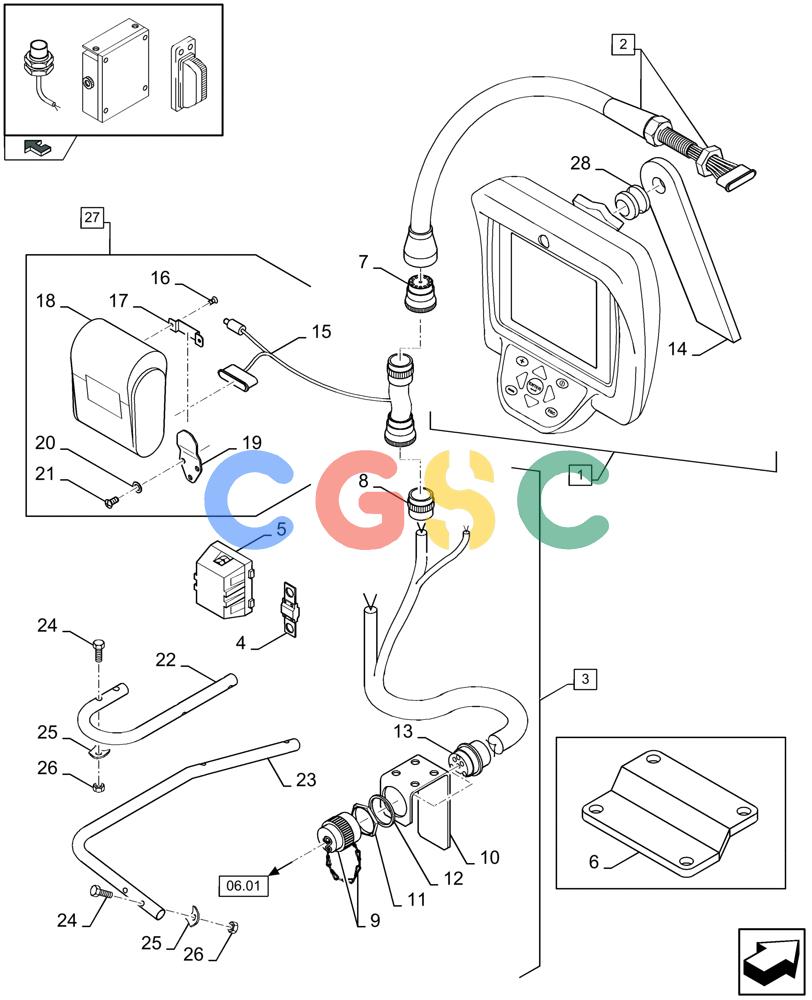

凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (06.06[01]) - MONITOR, INFO VIEW Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
1012 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84440344
|
[1] |
CONTROL MONITOR
|
ZED
(2, 14, 23)
|
| 2. |
84807172
|
[1] |
WIRE HARNESS
|
ZED
(7) Superseded by part number: 6046735070, 84806050
|
| 3. |
84437435
|
[1] |
WIRE HARNESS
|
ZED
(4, 5, 8-13)
|
| 4. |
84078783
|
[1] |
FUSE,80A, Midival
|
ZED
80 Amp
|
| 5. |
84078784
|
[1] |
FUSE HOLDER
|
ZED
|
| 6. |
NS
|
[1] |
NOT SERVICED
|
BAS
|
| 7. |
84074253
|
[1] |
MULTIPOLE CONNECTOR,Female, 9 Pole
|
ZED
|
| 8. |
84074255
|
[1] |
CONTACT HOUSING,Male, 9 Pole
|
ZED
|
| 9. |
86606228
|
[1] |
COVER
|
ZED
|
| 10. |
84437400
|
[1] |
BRACKET
|
ZED
|
| 11. |
80636666
|
[1] |
NUT
|
ZED
Superseded by part number: 459329C1
|
| 12. |
84037188
|
[1] |
O-RING,3mm Thk x 34.2mm ID, 70 Duro
|
ZED
|
| 13. |
84074256
|
[1] |
TERMINAL CONNECTOR,Male
|
ZED
Superseded by part number: 352506A1
|
| 14. |
84437266
|
[1] |
BRACKET
|
ZED
|
| 15. |
84449516
|
[1] |
WIRE HARNESS
|
ZED
|
| 16. |
86511815
|
[2] |
SCREW,Pan, M3 x 0.5 x 8mm, Cl 4.8
|
NH
|
| 17. |
84444485
|
[1] |
SUPPORT
|
ZED
|
| 18. |
84442607
|
[1] |
PRINTER
|
ZED
|
| 19. |
84448373
|
[1] |
HOOK
|
ZED
|
| 20. |
89824840
|
[3] |
WASHER,4.3mm ID x 9mm OD x 0.8mm Thk
|
ZED
|
| 21. |
80412475
|
[3] |
SCREW
|
ZED
Superseded by part number: 13272214
|
| 27. |
84110676
|
[1] |
PRINTER IN CAB
|
ATT
(15-21)
|
| 28. |
84801364
|
[1] |
GROMMET
|
ZED
|
