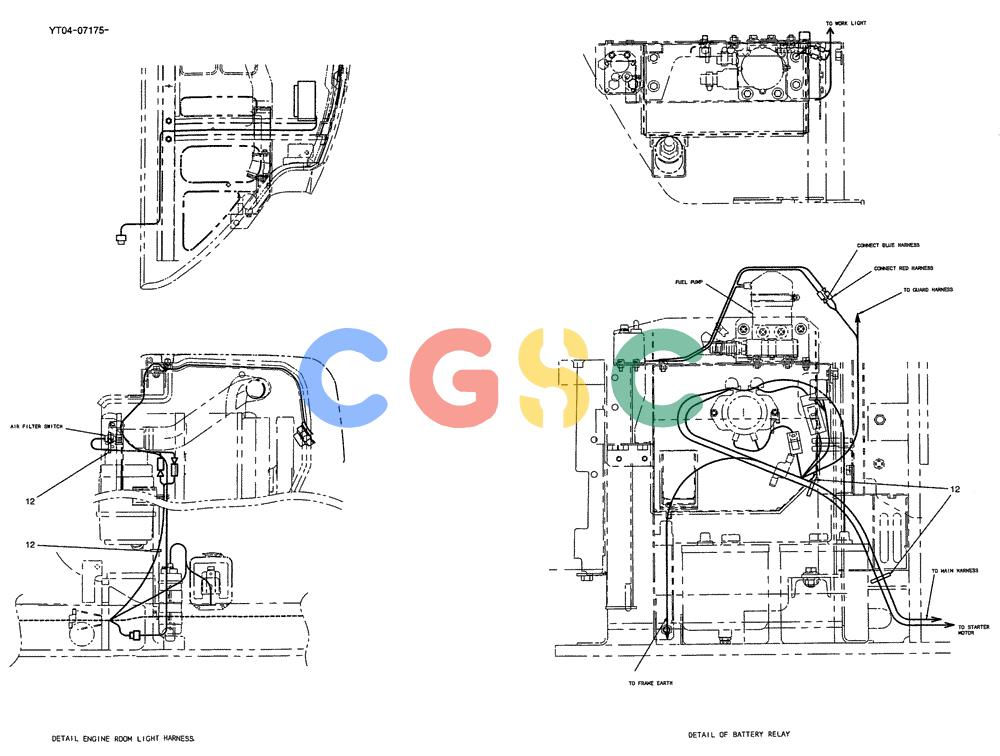

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-065[03]) - HARNESS ASSY, UPP, (P/N YT13E00035F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
810 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT13E00035F1 | [1] | HARNESS ASSY, UPP (P3 WITH PUMP) | |
| . . | YT13E00035F2 | [1] | HARNESS ASSY, UPP (P3 WITHOUT PUMP) | |
| 1. | YT13E01026D2 | [1] | CABLE | KOB |
| 2. | 2486R89D4 | [1] | CABLE | KOBBATTERY |
| 3. | YT13E01071D1 | [1] | CABLE | KOB |
| 4. | 2486R87D1 | [1] | CABLE | KOBBATTERY |
| 5. | YT13E01059P1 | [1] | HARNESS | KOB |
| 6. | YT13E01106P1 | [1] | HARNESS | KOB |
| 7. | ZS18C08016 | [2] | SCREW,Hex, M8 x 16mm | KOBCAP |
| 8. | LE13E01006P1 | [1] | HARNESS | KOB |
| 9. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 10. | ZW16P08000 | [2] | WASHER | KOBID 08 x OD 17 x Th 1.6mm |
| 11. | ZW26X08000 | [4] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| 12. | PY01P01043D4 | [11] | CABLE TIE,4.80mm W x 251mm L | KOB(F1 ONLY) |
| 13. | YT16E01017P1 | [1] | HARNESS | KOB(F1 ONLY) |
| 14. | ZS18C12025 | [1] | SCREW,Hex, M12 x 25mm | KOBCAP |
| 15. | ZW16P12000 | [1] | WASHER | KOB |
| 16. | ZW26X12000 | [1] | WASHER | KOB |
| 17. | YT13E01018P2 | [1] | GROMMET | KOB |
| 18. | YT13E01019P1 | [1] | GROMMET | KOB |
| 20. | YT13E01020P1 | [1] | GROMMET | KOB |
| 21. | 2420Z1370 | [1] | GROMMET | KOB |
| 23. | 2432R233D2 | [1] | CLIP | KOB37x12x40mm |
| 24. | YT13E01021P2 | [1] | GROMMET | KOB |
| A1. | YT03Z00024P1 | [1] | SCHEMATIC, ELEC (KCMA), (NOT IN SERVICE) | |
| A2. | YT03Z00023P1 | [1] | SCHEMATIC, ELEC (KCME) (FK), (NOT IN SERVICE) | |
