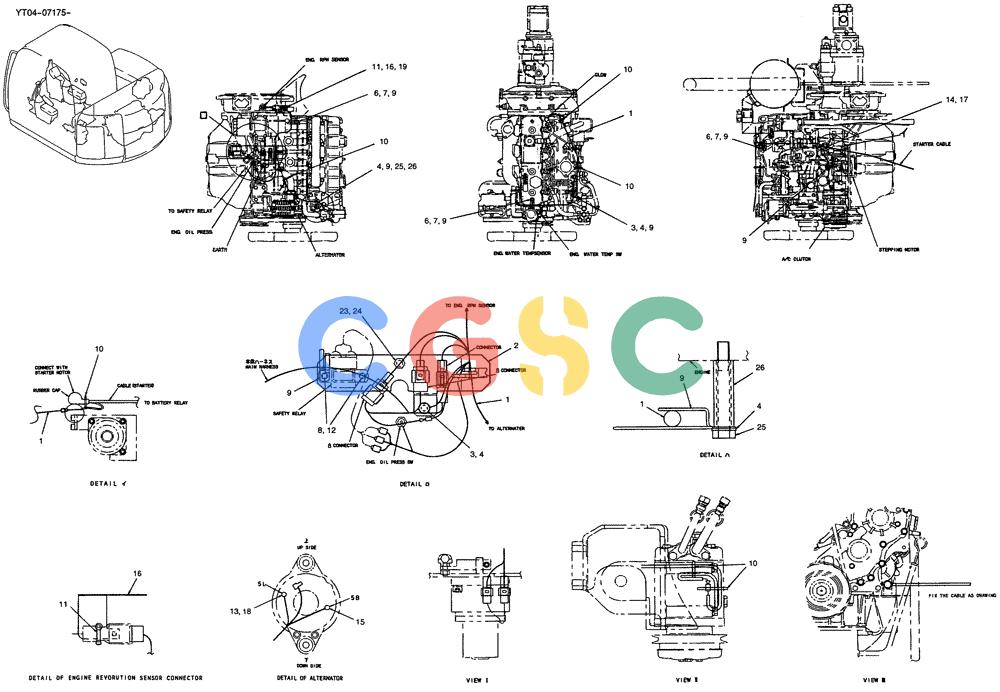

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-068[01]) - HARNESS ASSY, ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
683 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT16E01018P1 | [1] | HARNESS | KOB |
| 2. | YT16E01012P2 | [1] | BRACKET | KOB |
| 3. | ZS18F10020 | [2] | BOLT,Hex, M10 x 20mm | KOBCAP |
| 4. | ZW16P10000 | [3] | WASHER | KOBID 05 x OD 10 x Th 2.0mm |
| 6. | ZS18C08014 | [3] | SCREW,Hex, M8 x 14mm | KOBCAP |
| 7. | ZW16P08000 | [3] | WASHER | KOBID 08 x OD 17 x Th 1.6mm |
| 8. | ZM61C06016 | [2] | BOLT | KOBSEMS |
| 9. | 2432R233D3 | [7] | CLIP | KOB |
| 10. | PY01P01043D3 | [6] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| 11. | PY01P01043D2 | [1] | CABLE TIE,4.60mm W x 202mm L | KOBWire Ties -- 160mm Long Superseded by part number: YT50C01100P1 |
| 12. | ZW16H06000 | [2] | WASHER | KOB |
| 13. | ZN18C05004 | [1] | NUT | KOB |
| 14. | ZW26X08000 | [1] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| 15. | 2420R1124D1 | [1] | BOLT | KOBSEMS |
| 16. | YN16E01018P1 | [1] | BRACKET | KOB |
| 17. | ZN18C08007 | [1] | NUT | KOBM08x1.25mm |
| 18. | ZW26X05000 | [1] | LOCK WASHER | KOBLOCK |
| 19. | ZM22C10020 | [1] | BOLT | KOBSEMS |
| 23. | ZS18F10040 | [1] | CAPSCREW,Hex, M10 x 40mm | KOBSCREW CAP |
| 24. | PA12B01031P1 | [1] | WASHER | KOB |
| 25. | ZS18F10080 | [1] | CAPSCREW,Hex, M10 x 80mm | KOBSCREW CAP |
| 26. | YT16E01015P1 | [1] | COLLAR | KOB |
