神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (06-005) - ROLLER ASSY P/N 24100J1848F9 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
863 次

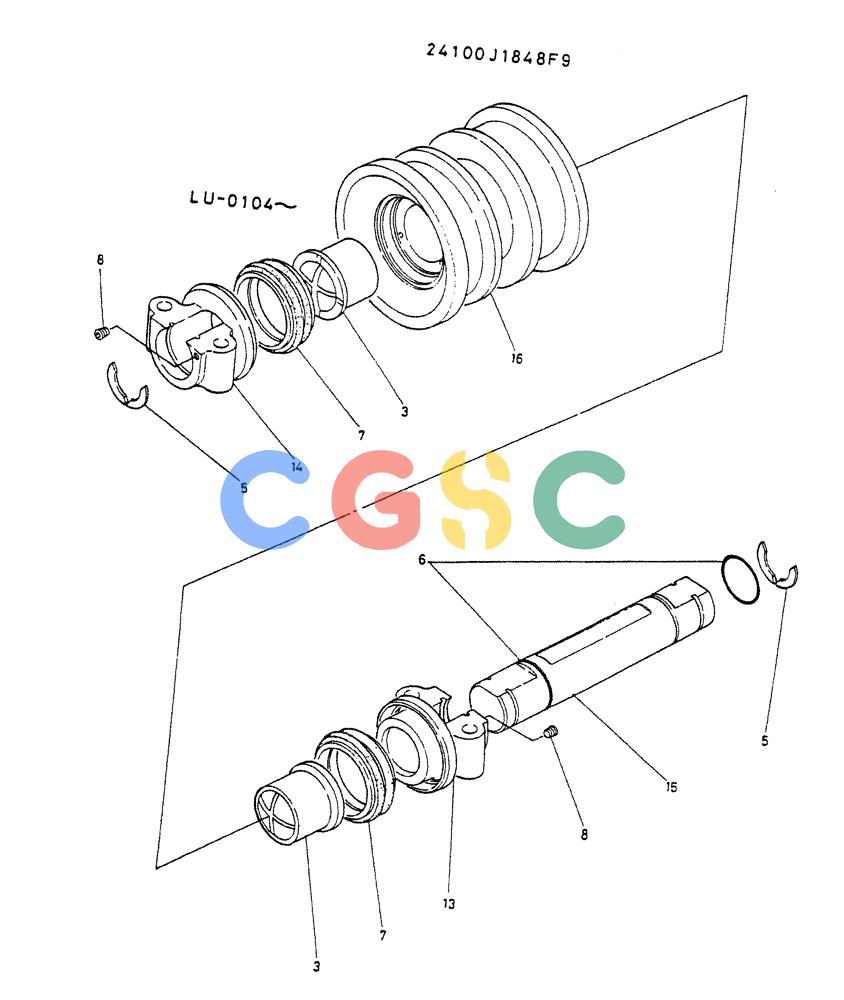

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J1848F9 | [1] | ROLLER ASSY | ROLLER ASSY |
| 3. | 2405P220 | [2] | BUSHING | KOB |
| 5. | 2418T3946 | [4] | RING | KOB |
| 6. | ZD11G08500 | [2] | O-RING,84.40mm ID x 90.60mm OD x 3.10mm | KOBID 84.40 ± 0.61 x OD 90mm |
| 7. | R45P0018D15 | [2] | SEAL | KOB Superseded by part number: ZD58F13038 |
| 8. | ZE82T04000 | [2] | PLUG | KOB1/4" PT |
| 13. | 2418N1998D1 | [1] | COLLAR | COLLAR |
| 14. | 2418N1998D2 | [1] | COLLAR | COLLAR |
| 15. | 2410N479 | [1] | SHAFT | KOB |
| 16. | 2413J200D3 | [1] | ROLLER | ROLLER |
