| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

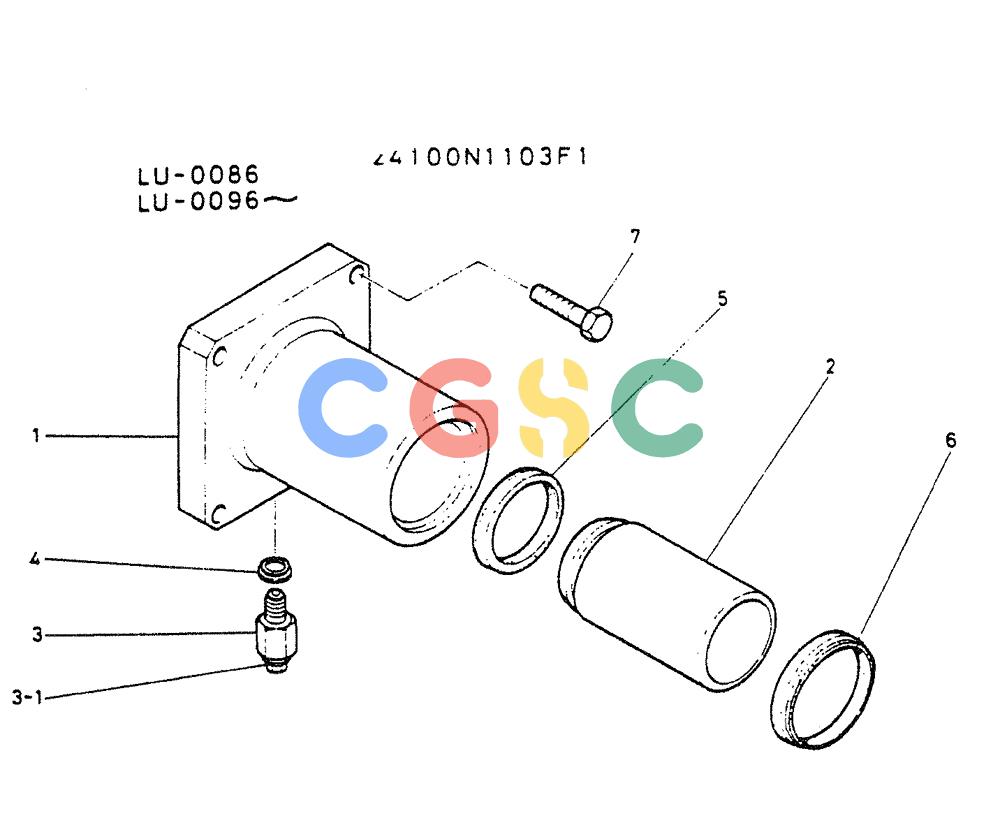

| . . | 24100N1103F1 | [1] | CYLINDER ASSY, GREASE | |
| 1. | 243BP110C2 | [1] | CYLINDER | |
| 2. | 2439P121 | [1] | PISTON | |
| 3. | B91P0054 | [1] | ADAPTER | KOB |
| 3-1. | R45T0004D4 | [1] | WASHER | KOB |
| 4. | R45T0004D8 | [1] | SEAL | KOB |
| 5. | R45T0003D4 | [1] | PACKING | KOBID 105 x OD 125 x Th 16mm |
| 6. | R45T0009D4 | [1] | SEAL | KOB |
| 7. | ZS12C20080 | [4] | SCREW,Hex, M20 x 80mm | KOBM20x2.50x80mm |
