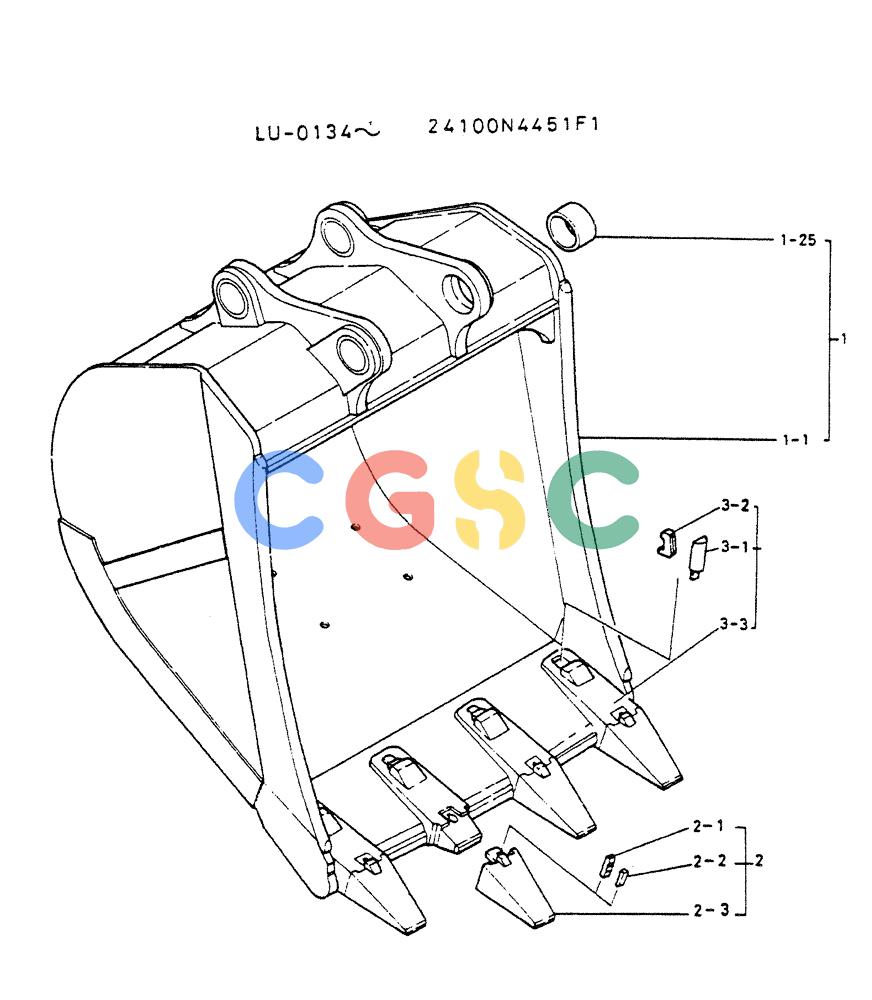

神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (08-015) - BUCKET ASSY, ROCK, 2.0M³ Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
424 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4451F1 | [1] | BUCKET ASSY 2.0M3 | |
| 1. | 2412X524F1 | [1] | BUCKET ASSY | |
| 1-1. | 2412X524 | [4] | BUCKET | |
| 1-25. | 2405T839 | [4] | BUSHING | KOB |
| 2. | 2412U28F1 | [1] | POINT ASSY | |
| 2-1. | 2412U28S1 | [1] | PIN, LOCKING | PIN, LOCKING |
| 2-2. | 2412U28S2 | [1] | SHEAR BOLT | SHEAR BOLT |
| 2-3. | 2412U28S3 | [1] | POINT | POINT |
| 3. | 2412U27F1 | [4] | ADAPTER | KOB |
| 3-1. | 2412R1D1 | [1] | WEDGE | WEDGE |
| 3-2. | 2412U27S2 | [1] | CLAMP C | CLAMP C |
| 3-3. | 2412U27S3 | [1] | ADAPTER | |
