神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (08-019) - BUCKET ASSY FOR LOADING, 2.6M³ Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
742 次

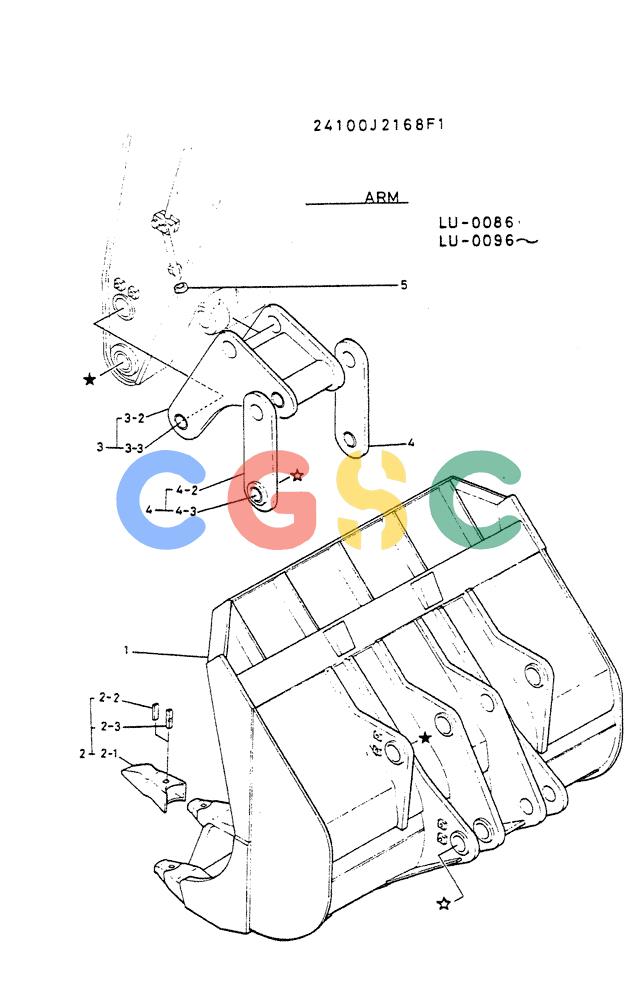

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J2168F1 | [1] | BUCKET ASSY,2.6M3 | |
| 1. | 2412X190 | [1] | BUCKET | |
| 2. | B12K0014F1 | [6] | TOOTH ASSY | |
| 2-1. | B12K0014E1 | [1] | POINT | POINT |
| 2-2. | B12K0014E2 | [1] | PIN, LOCKING | PIN, LOCKING |
| 2-3. | B12K0014E3 | [1] | SHEAR BOLT LOCK-PIN, RUBBER | SHEAR BOLT LOCK-PIN, RUBBER |
| 3. | B91K0017F1 | [1] | LINK, GUIDE | |
| 3-2. | B91K0017 | [1] | LINK, GUIDE | |
| 3-3. | B05T0013 | [4] | BUSHING | BUSHING |
| 4. | B91N0052F1 | [2] | LINK | |
| 4-2. | B91N0052 | [1] | LINK | |
| 4-3. | B05TD004 | [1] | BUSHING | |
| 5. | 2444T1329D5 | [2] | PLUG | KOB Superseded by part number: ZF86P28000 |
