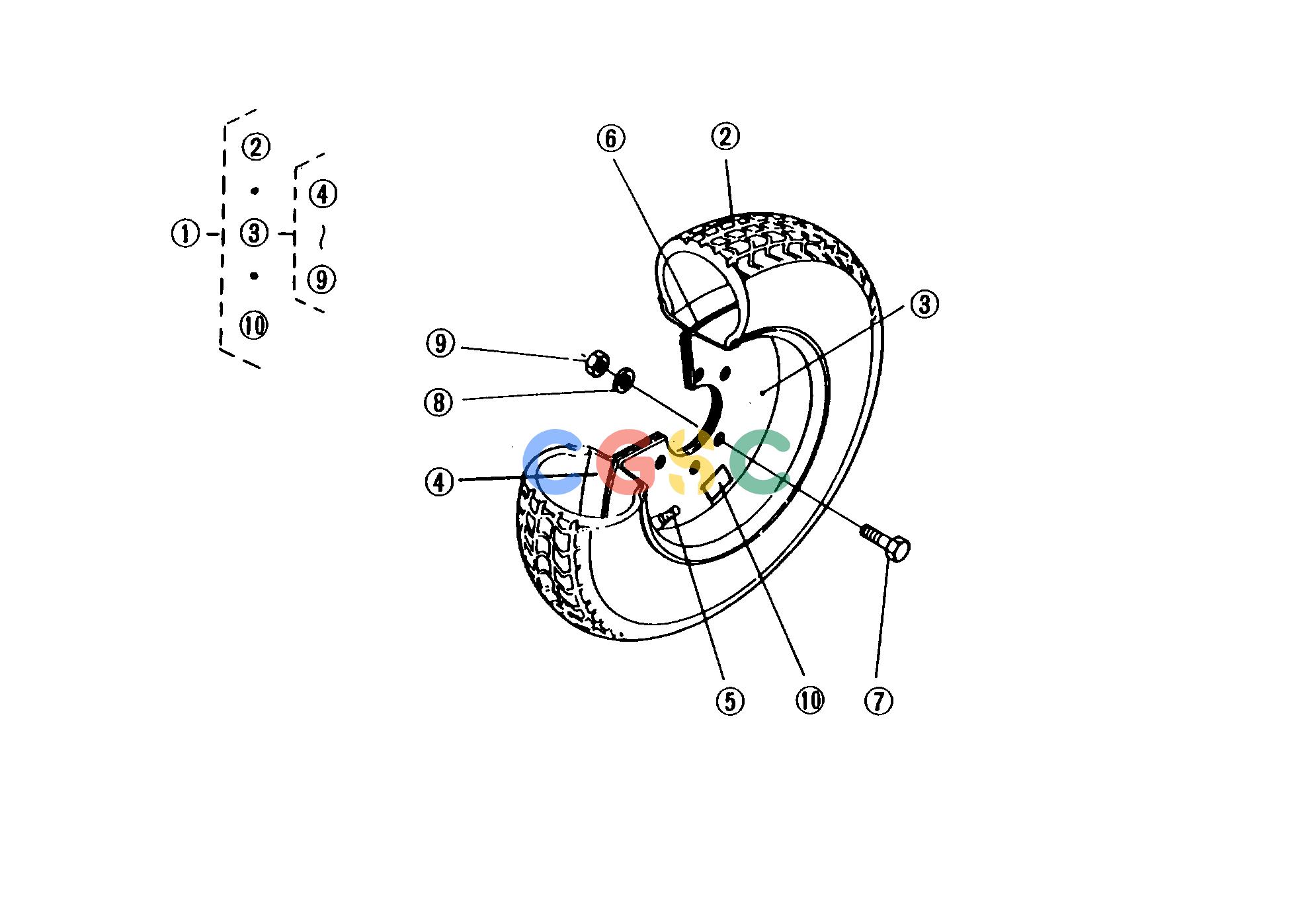

久保田零件查询T06900 FRONT WHEEL [CA] FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
695 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3415911800
|
[2] |
ASSY FRONT WHEEL
|
23.3200(lbs); 10.600
|
| 002. |
3415911810
|
[2] |
TIRE
|
12.3200(lbs); 5.600
|
| 003. |
3415911890
|
[2] |
WHEEL
|
11.1320(lbs); 5.060
|
| 004. |
3415911840
|
[2] |
RIM
|
10.8900(lbs); 4.950
|
| 005. |
3415911850
|
[2] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 006. |
3415911860
|
[2] |
GASKET
|
0.1100(lbs); 0.050
|
| 007. |
0117051022
|
[12] |
BOLT
|
0.0000(lbs); 0.000
|
| 008. |
0451250100
|
[12] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 009. |
0211850100
|
[12] |
NUT
|
0.0110(lbs); 0.005
|
| 010. |
3415911910
|
[1] |
LABEL AIR PRESSURE
|
0.0022(lbs); 0.001
|
