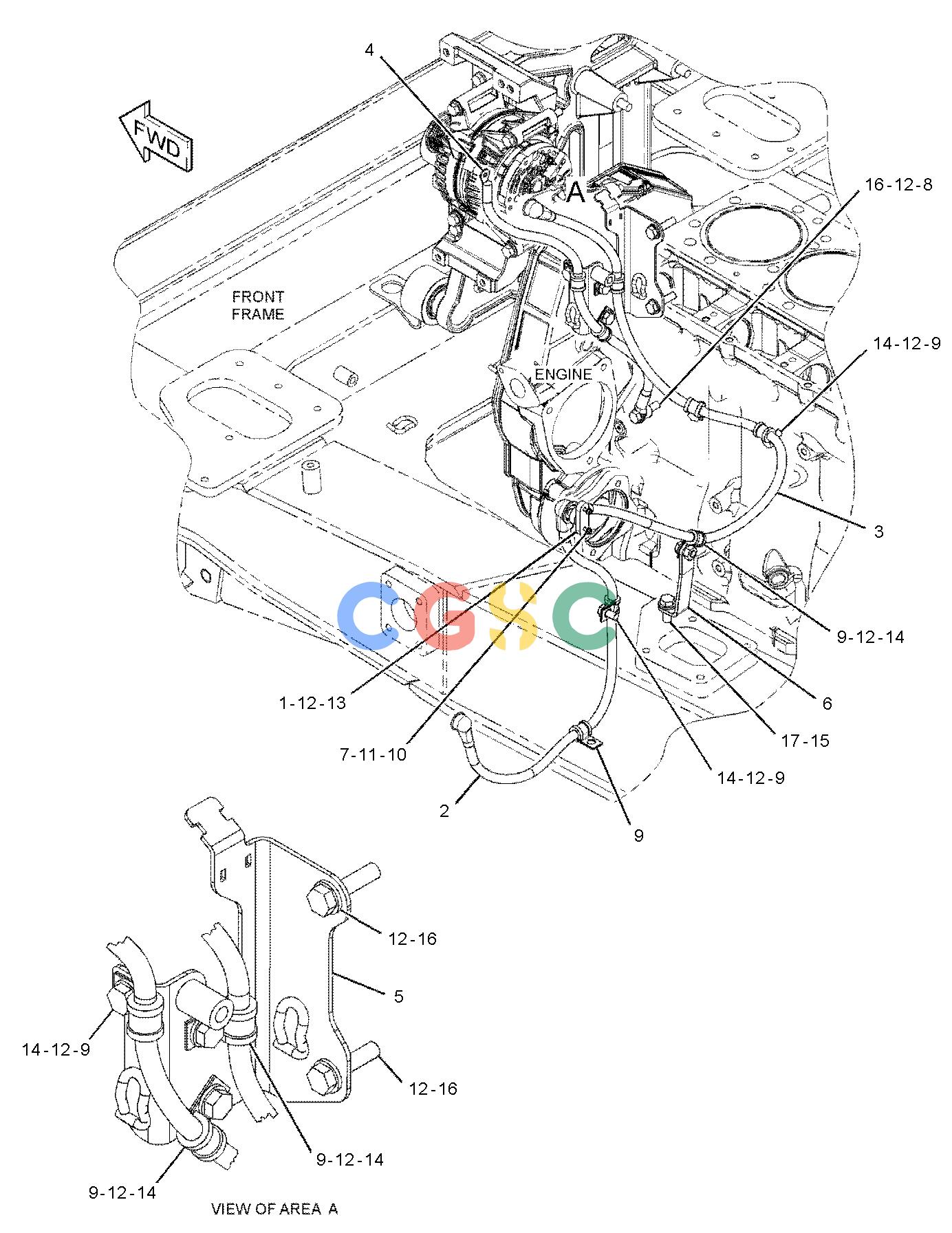

卡特零件查询（730C） 446-6307: WIRING GP-ALTERNATOR
广数供应链运营团队, 15 02月, 2025，浏览：
129 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 263-6556M | [1] | STUD(M10X1.5-THD) | |
| 2. | 422-3613 | [1] | CABLE AS(ALTERNATOR) | |
| | 8C-3056E | | CABLE(2-GA, RED)(74-CM) | |
| | 030-1712 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| | 135-2543 | [1] | BOOT(RED) | |
| | 1P-0810B | | TAPE-ELECTRICAL | |
| | 308-8161 | [1] | COVER-TERMINAL | |
| | 125-7876E | | TUBE-HEAT SHRINK(17.78-MM DIA)(4-CM) | |
| | 311-6184 | [1] | TERMINAL-RING(2-GA, 3/8-IN SCREW) | |
| 3. | 446-8951 | [1] | CABLE AS | |
| | 6T-5598 | [1] | TERMINAL-RING(1-GA TO 2-GA, 5/16-IN SCREW) | |
| | 8C-3056E | | CABLE(2-GA, RED)(113-CM) | |
| | 135-2543 | [1] | BOOT(RED) | |
| | 1P-0810B | | TAPE-ELECTRICAL | |
| | 125-7876E | | TUBE-HEAT SHRINK(17.78-MM DIA)(4-CM) | |
| | 311-6184 | [1] | TERMINAL-RING(2-GA, 3/8-IN SCREW) | |
| 4. | 446-8952 | [1] | CABLE AS | |
| | 8C-0596E | | CABLE(2-GA)(62-CM) | |
| | 030-1712 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| | 1P-0810B | | TAPE-ELECTRICAL | |
| | 125-7876E | | TUBE-HEAT SHRINK(17.78-MM DIA)(4-CM) | |
| | 311-6184 | [1] | TERMINAL-RING(2-GA, 3/8-IN SCREW) | |
| 5. | 446-8953 | [1] | PLATE AS | |
| | 7T-1099 | [2] | LINK | |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| 6. | 447-0078 | [1] | PLATE AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 7. | 096-6166 | [2] | WASHER-HARD(4.5X9X1-MM THK) | |
| 8. | 198-0230 | [1] | SPACER(10.5X19X15-MM THK) | |
| 9. | 349-1209 | [8] | CLIP | |
| 10. | 5C-8312M | [2] | NUT(M4X0.7-THD) | |
| 11. | 6V-9672M | [2] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 12. | 8T-4121 | [11] | WASHER-HARD(11X21X2.5-MM THK) | |
| 13. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 14. | 8T-4137M | [7] | BOLT(M10X1.5X20-MM) | |
| 15. | 8T-4139M | [1] | BOLT(M12X1.75X30-MM) | |
| 16. | 8T-4186M | [3] | BOLT(M10X1.5X40-MM) | |
| 17. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
