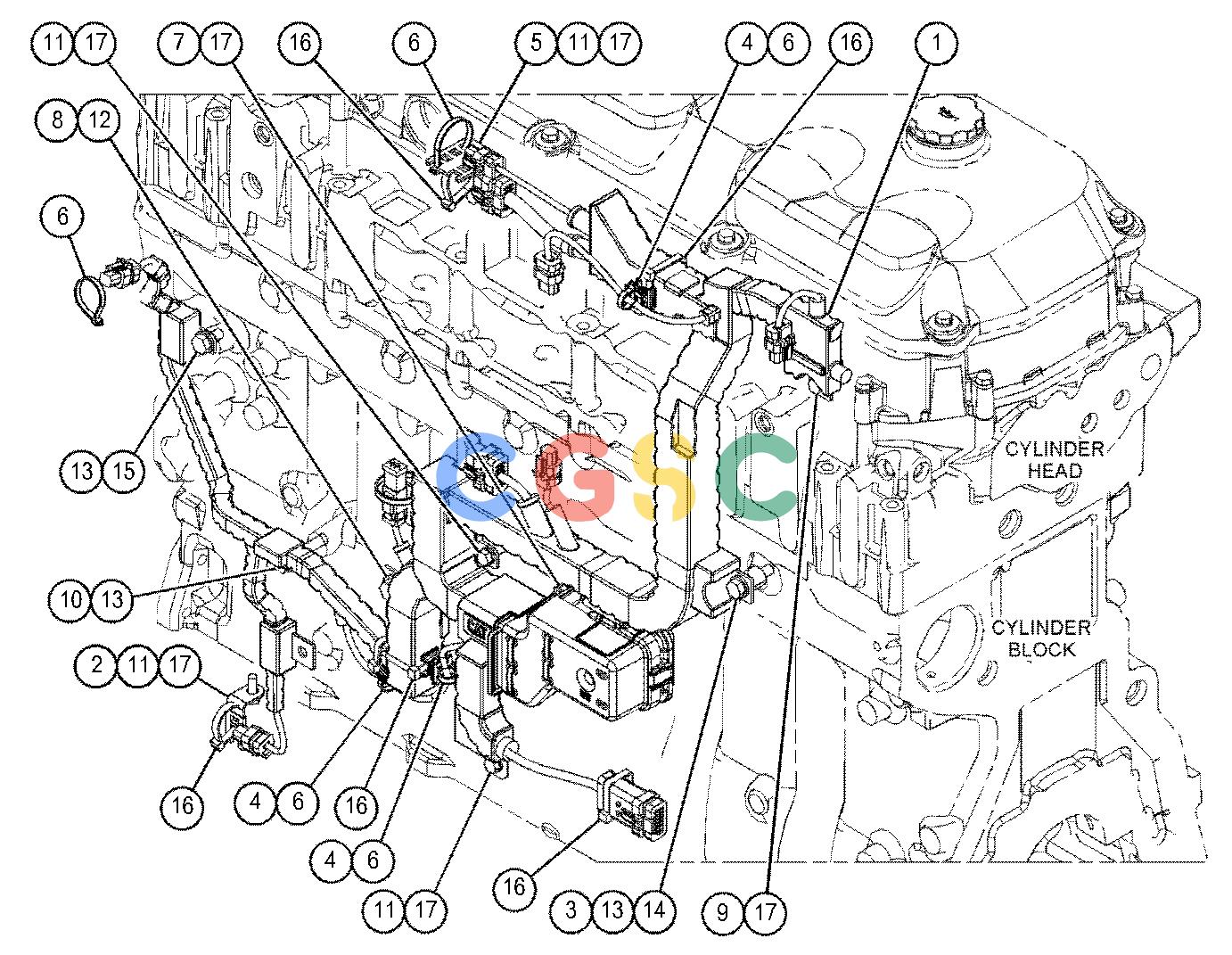

卡特零件查询（730C） 354-1671: WIRING GP-ELECTRONIC CONTROL
广数供应链运营团队, 15 02月, 2025，浏览：
685 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 390-3332Y | [1] | WIRING GP-ENGINE | |
| 2. | 132-5789 | [1] | CLIP(LADDER) | |
| 3. | 144-8344 | [1] | SPACER(11X19X20-MM THK) | |
| 4. | 290-5562 | [3] | MOUNT(DUAL SWIVEL) | |
| 5. | 347-3869 | [1] | CLIP(LADDER) | |
| 6. | 3S-2093 | [5] | STRAP-CABLE | |
| 7. | 5P-7970M | [1] | NUT(M8X1.25-THD) | |
| 8. | 5P-8245 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 9. | 6V-2317M | [2] | BOLT(M8X1.25X30-MM) | |
| 10. | 6V-4249M | [1] | BOLT(M10X1.5X50-MM) | |
| 11. | 6V-5217M | [6] | BOLT(M8X1.25X20-MM) | |
| 12. | 6V-5696M | [1] | BOLT(M12X1.75X80-MM) | |
| 13. | 6V-5839 | [3] | WASHER(11X21X2.5-MM THK) | |
| 14. | 6V-5842M | [1] | BOLT(M10X1.5X40-MM) | |
| 15. | 6V-6317M | [1] | BOLT(M10X1.5X20-MM) | |
| 16. | 7K-1181 | [6] | STRAP-CABLE | |
| 17. | 9M-1974 | [10] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
