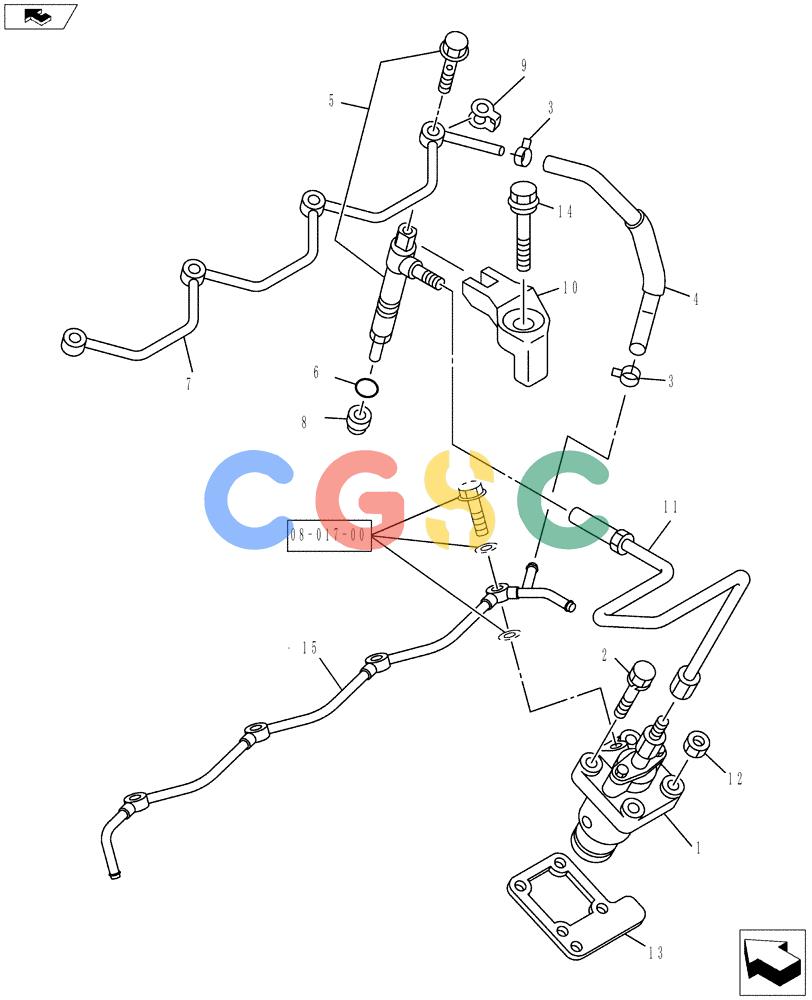

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (08-020[01]) - FUEL INJECTION SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
810 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8980955500 | [1] | FUEL INJECTION PUMP | KOBAsm., See Figure 08-017-00 Superseded by part number: VI8980305690 |
| 2. | VI02805083000 | [8] | Inj. Pump | |
| 3. | VI5097070051 | [2] | HOSE CLIP | KOB Superseded by part number: VI1097070870 |
| 4. | VI8980306360 | [1] | FLEXIBLE HOSE | KOBRubber, Fuel Leak |
| 5. | VI8980928210 | [4] | CORE-NOZZLE, INJECT | KOBCORE-INJECTION NOZZLE Asm. Superseded by part number: VI8980928211 |
| 6. | VI8943264390 | [4] | GASKET | KOBNozzle Holder |
| 7. | VI8972172492 | [1] | PIPE | KOBFuel, Nozzle Leak Off |
| 8. | VI8973279160 | [4] | GASKET | KOBInj. Nozzle |
| 9. | VI8972323341 | [4] | GASKET | KOBLeak Off Pipe |
| 10. | VI8971952593 | [4] | BRACKET | KOBInj. Nozzle |
| 11. | VI8980305720 | [4] | INJECTION PIPE | KOBAsm. |
| 12. | VI0911802080 | [8] | NUT | KOBInj. Pump |
| 13. | VI8972272821 | [1] | SHIM | KOBInj. Pump, T=0.20 |
| 13. | VI8972272831 | [1] | SHIM | KOBInj. Pump, T=0.30 |
| 13. | VI8972272841 | [1] | SHIM | KOBInj. Pump, T=0.40 |
| 13. | VI8972272851 | [1] | SHIM | KOBInj. Pump, T=0.50 |
| 13. | VI8972272861 | [1] | SHIM | KOBInj. Pump, T=0.60 |
| 13. | VI8972272871 | [1] | SHIM | KOBInj. Pump, T=0.70 |
| 13. | VI8972272881 | [1] | SHIM | KOBInj. Pump, T=0.80 |
| 13. | VI8972272891 | [1] | SHIM | KOBInj. Pump, T=1.00 |
| 13. | VI8972272901 | [1] | SHIM | KOBInj. Pump, T=1.20 |
| 14. | VI8944337171 | [4] | BOLT | KOBBrkt., Inj. Nozzle |
| 15. | VI8973148610 | [1] | PIPE | KOBFuel, Suction |
