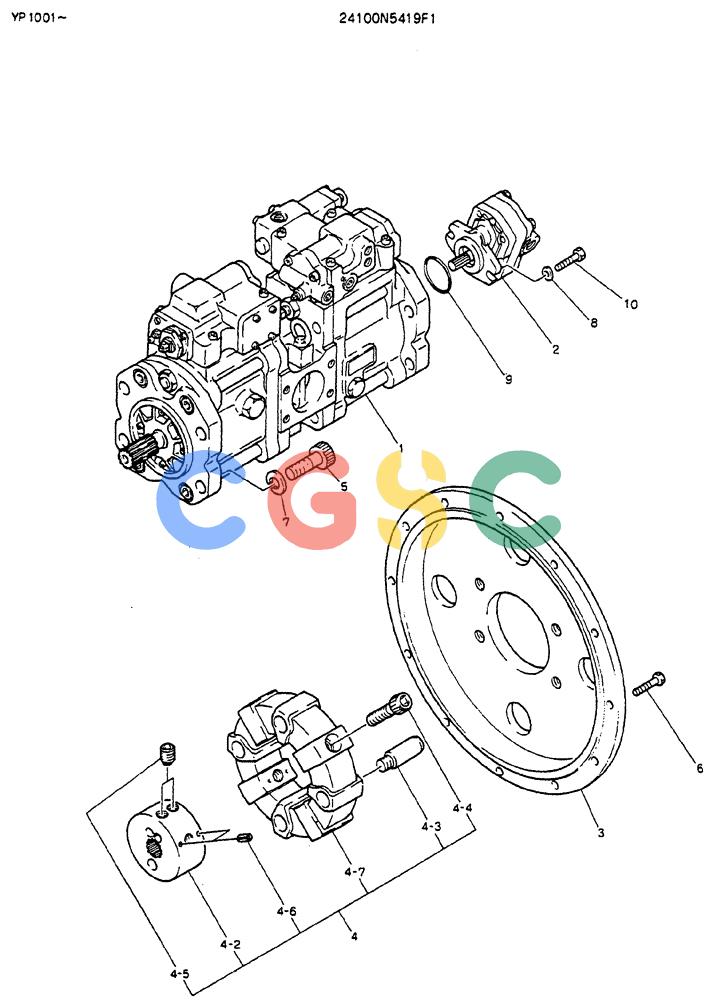

神钢零件查询(MD140BLC) - EXCAVATOR BTW YP1001 - YP1281 (1/80-12/06) (05-003) - PUMP ASSY, CONNECT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
514 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5419F1 | [1] | PUMP ASSY, CONNECT | |
| 1. | 2437U188F1 | [1] | PUMP | KOBPUMP Superseded by part number: 2437U188F3 |
| 2. | 2441U291F2 | [1] | HYDRAULIC PUMP | KOBPUMP GEAR |
| 3. | 2416N3458 | [1] | BRACKET | KOB |
| 4. | 2418U224F2 | [1] | COUPLING | KOB |
| 4-2. | 2418U224S2 | [1] | HUB | KOBCOUPLING |
| 4-3. | 2418U162S2 | [4] | BOLT | KOBM16x2.0x16mm Long |
| 4-4. | 2418U128S5 | [4] | SCREW | KOBM16x2.0x50mm Long Superseded by part number: LQ30P01003S005 |
| 4-5. | 2418U162S3 | [2] | SCREW | KOBSet -- M16x2.0x28mm Long |
| 4-6. | ZP26D05010 | [8] | PIN | KOBRoll -- OD 05 x 10mm Long |
| 4-7. | 2418U224S7 | [1] | RUBBER INSULATOR | KOB Superseded by part number: YB30P01001S001 |
| 5. | ZS23C16050 | [4] | CAPSCREW,Hex Socket Head, M16 x 50mm | KOBSCREW M16x2.0x50mm |
| 6. | ZS23C10025 | [12] | SCREW,Hex Socket Head, M10 x 25mm | KOBM10x1.50x25mm Superseded by part number: ZS28C10025 |
| 7. | ZW22K16000 | [4] | LOCK WASHER | KOBID 16 x OD 24 x Th 3.5mm |
| 8. | ZW11K10000 | [2] | WASHER | KOBID 10 x OD 18 x Th 2.0mm |
| 9. | ZD12G05500 | [1] | O-RING,3.1mm Thk x 54.4mm ID, 90 Duro | KOBO -- ID 54.40 ± 0.49 x OD 60mm |
| 10. | ZS13C10025 | [2] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
