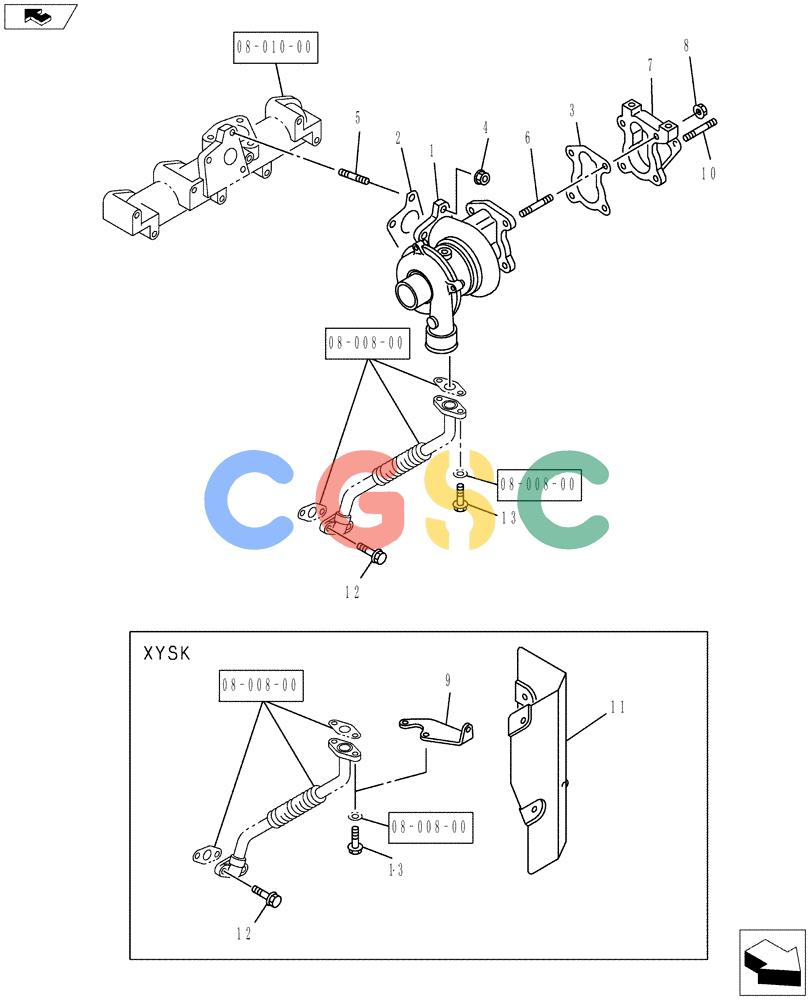

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (08-022[00]) - TURBOCHARGER SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
841 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8980928220 | [1] | TURBOCHARGER | KOBAsm. |
| 2. | VI8980490260 | [1] | MANIFOLD GASKET | KOBTurbocharger To Exh. |
| 3. | VI8941488850 | [1] | GASKET | KOBTurbocharger To Exh. Duct |
| 4. | VI8971616070 | [3] | NUT | KOBTurbocharger |
| 5. | VI8942573190 | [3] | STUD | KOBTurbocharger |
| 6. | VI8973780640 | [4] | STUD | KOBTurbocharger To Exh. Pipe |
| 7. | VI8980489620 | [1] | ADAPTER | KOBExh. Pipe |
| 9. | VI8980928160 | [1] | BRACKET | KOBHeat Protector Superseded by part number: 47543988 |
| 11. | VI8980928270 | [1] | PROTECTOR | KOBHeat, Turbocharger |
| 12. | VI0280506160 | [2] | BOLT | KOBOil Pipe To C/Bl |
| 13. | VI0286506200 | [2] | BOLT | KOBOil Pipe, Turbo |
