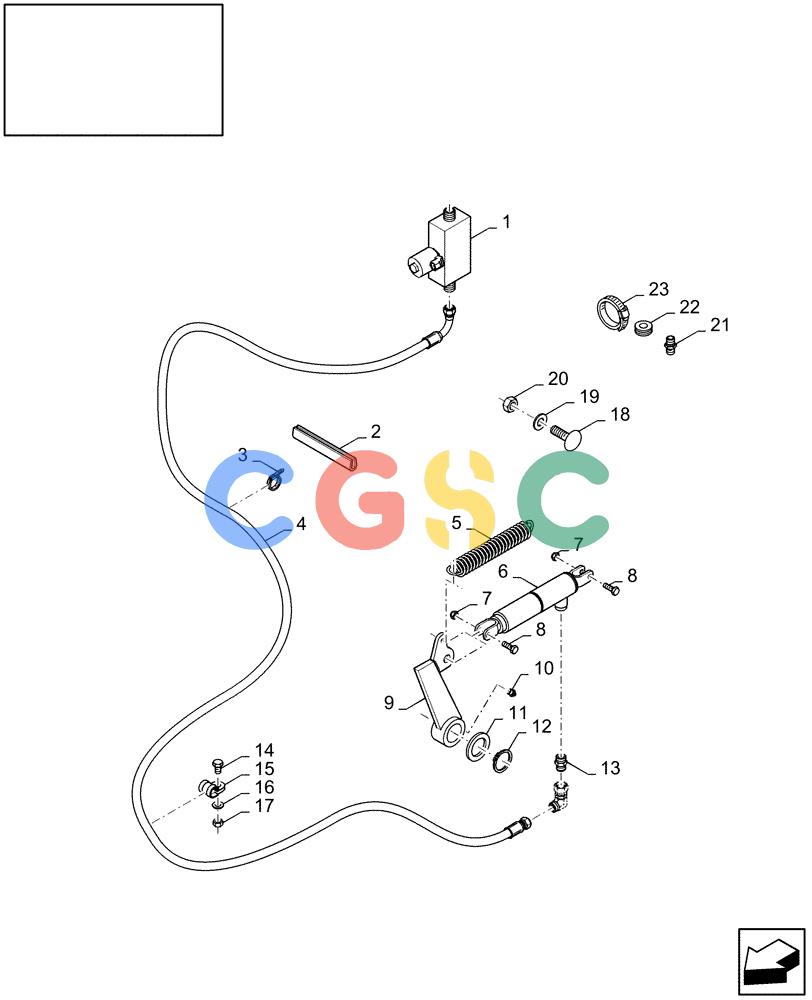

87384062
|
[1] |
DIA KIT, HARVESTER
|
ZED
Superseded by part number: 84197070
|
| 1. |
84460188
|
[1] |
HYDRAULIC VALVE
|
ZED
Superseded by part number: 84197068
|
| 2. |
9850033
|
[1] |
SEAL
|
ZED
L= 0.3 M Superseded by part number: 84053834
|
| 3. |
574518
|
[1] |
HOSE CLAMP,6.3mm - 15.7mm, SAE # 4
|
NH
Superseded by part number: 86625022
|
| 4. |
84448414
|
[1] |
FLEXIBLE HOSE,6.35mm ID x 3700mm L, SAE 100R1
|
ZED
|
| 5. |
84806601
|
[1] |
SPRING,Extension, 28.399mm OD x 108mm L
|
ZED
|
| 6. |
84817400
|
[1] |
HYDRAULIC CYLINDER
|
ZED
|
| 7. |
100037
|
[2] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 8. |
9706704
|
[2] |
BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8
|
NH
|
| 9. |
84817591
|
[1] |
STOP
|
ZED
|
| 10. |
9838669
|
[1] |
LUBE NIPPLE
|
ZED
Superseded by part number: 84062065
|
| 11. |
140119
|
[5] |
WASHER,35.2mm ID x 42.5mm OD x 1.22mm Thk
|
ZED
|
| 12. |
370004
|
[1] |
SNAP RING,M35 x 1.5mm Thk, External
|
NH
Superseded by part number: 11068376
|
| 13. |
9850318
|
[1] |
HYD CONNECTOR
|
ZED
|
| 14. |
86977786
|
[6] |
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8
|
GI
|
| 15. |
431351
|
[2] |
CLAMP,15mm ID, 8.5mm Bolt Hole, P Type
|
ZED
|
| 16. |
322357
|
[6] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 17. |
9706755
|
[6] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 18. |
374895
|
[4] |
CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8
|
NH
|
| 19. |
140046
|
[4] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 20. |
9706685
|
[4] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 21. |
84441294
|
[5] |
HYD CONNECTOR
|
ZED
|
| 22. |
452802
|
[1] |
GROMMET
|
ZED
|
| 23. |
418407
|
[3] |
CLAMP,24mm ID, 8.5mm Bolt Hole, P Type
|
ZED
|
