神钢零件查询(MD140C) - EXCAVATOR BTW YPU0301 - YPU0500 (1/80-12/06) (05-005) - RADIATOR ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
360 次

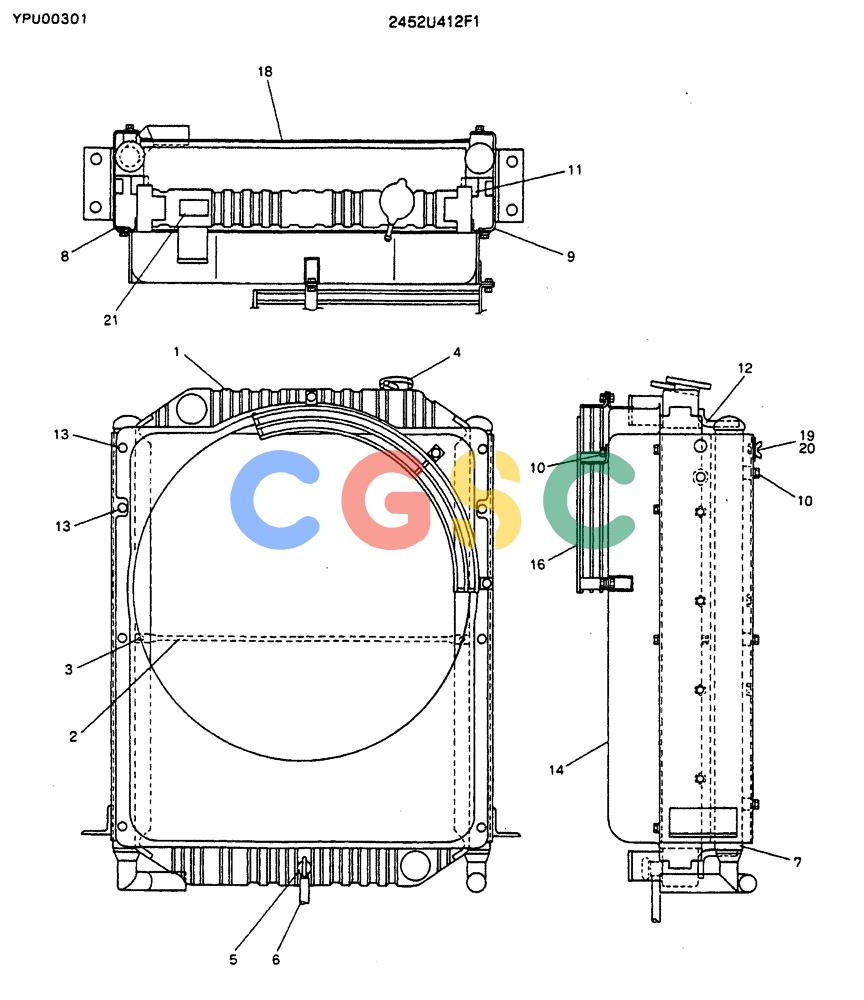

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2452U412F1 | [1] | RADIATOR | KOB |
| 1. | 2452U412S1 | [1] | RADIATOR | KOB |
| 2. | 2452U375S2 | [1] | ROD | |
| 3. | ZM11C06016 | [2] | BOLT | KOB |
| 4. | 2452U457S8 | [1] | CAP | KOB Superseded by part number: YT05P00009S002 |
| 5. | 2452U183S5 | [1] | PLUG | KOBDRAIN |
| 6. | 2452U375S15 | [1] | HOSE | HOSE |
| 7. | 2452U412S7 | [1] | OIL COOLER | KOB |
| 8. | 2452U412S8 | [1] | BRACKET | |
| 9. | 2452U412S9 | [1] | BRACKET | |
| 10. | 2452U292S30 | [9] | SCREW | KOB |
| 11. | 2452U412S11 | [2] | PACKING | KOB |
| 12. | 2452U387S13 | [2] | PACKING | KOB |
| 13. | 2452U375S9 | [8] | BOLT | BOLT |
| 14. | 2452U412S14 | [1] | SHROUD | KOB |
| 16. | 2452U387S18 | [1] | GUARD ASSY, FAN | GUARD ASSY, FAN |
| 18. | 2452U412S18 | [1] | NET | KOB |
| 19. | 2452U202S5 | [2] | BOLT | KOBM06x1.0 |
| 20. | 2452U412S20 | [2] | WASHER | KOB |
| 21. | 2452U292S31 | [1] | NAME-PLATE | |
