神钢零件查询(MD140C) - EXCAVATOR BTW YPU0301 - YPU0500 (1/80-12/06) (05-007) - CONTROL ASSY, ENGINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
752 次

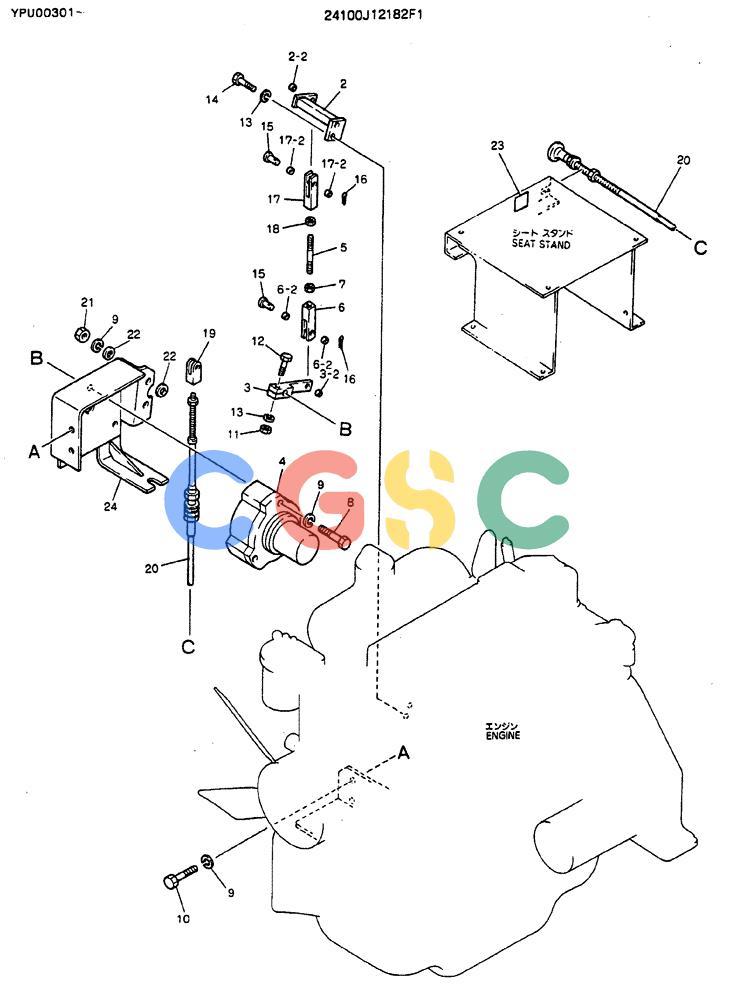

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J12182F1 | [1] | CONTROL ASSY, ENGINE | CONTROL ASSY, ENGINE |
| 2. | 2406T3096 | [1] | LEVER | KOB |
| 2-2. | 2405R61D17 | [1] | BUSHING | KOB Superseded by part number: 2405U104D006005 |
| 3. | 2406T3075 | [1] | LEVER | KOB |
| 3-2. | 2405R61D15 | [1] | BUSHING | KOB |
| 4. | 2406U197F2 | [1] | ACCELERATOR | KOB, Serial Range: YPU00301-YPU00323 Superseded by part number: 2406U197F4 |
| . . | 2406U197F4R | [1] | REMAN-ELECTRIC MOTOR | KOBMD140C EXCAVATOR BTW YPU0301 - YPU0500, Serial Range: YPU00301-YPU00323, Reman for New P/N 2406U197F2 |
| . . | 2406U197F4C | [1] | CORE-ELECTRIC MOTOR | KOBReturn Number |
| . . | 2406U197F3 | [1] | ACCELERATOR | KOB, Start Serial: YPU00324 Superseded by part number: 2406U197F4 |
| 5. | 2420Z1338 | [1] | ROD | KOB |
| 6. | 2420Z1346 | [1] | ROD | KOB |
| 6-2. | 2405R61D17 | [2] | BUSHING | KOB Superseded by part number: 2405U104D006005 |
| 7. | ZN18C08007 | [1] | NUT | KOBM08x1.25mm |
| 8. | ZS18C10075 | [3] | SCREW,Hex, M10 x 75mm | KOBM10x1.50x75mm |
| 9. | ZW26X10000 | [7] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 10. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 11. | ZN18C06005 | [1] | NUT | KOBM06x1.0mm |
| 12. | ZS23C06025 | [1] | SCREW,Hex Socket Head, M6 x 25mm | KOBM06x1.0x25mm |
| 13. | ZW26X06000 | [3] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 14. | ZS18C06020 | [2] | SCREW,Hex, M6 x 20mm | KOBM06x1.0x20mm |
| 15. | 2419Z216 | [2] | PIN | KOB |
| 16. | 2419R9D1 | [2] | COTTER PIN | KOBOD 06mm x 21.2mm Long |
| 17. | 2420Z1347 | [1] | ROD | KOB |
| 17-2. | 2405R61D17 | [2] | BUSHING | KOB Superseded by part number: 2405U104D006005 |
| 18. | 2420T7359 | [1] | NUT | KOBM08x1.25mm -- Left Hand Threads |
| 19. | 2420Z1320D1 | [1] | END | KOB Superseded by part number: PM03M01715F1 |
| 20. | 2406R275D2 | [1] | CABLE | KOB |
| 21. | ZN18F10008 | [2] | NUT | KOBM10x1.25mm |
| 22. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 23. | 2432T4615 | [1] | LABEL | KOBDecal -- 45x45mm Red triangle |
| 24. | 2416N5864 | [1] | BRACKET | KOB |
