纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (06-001[03]) - NAME PLATE INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
805 次

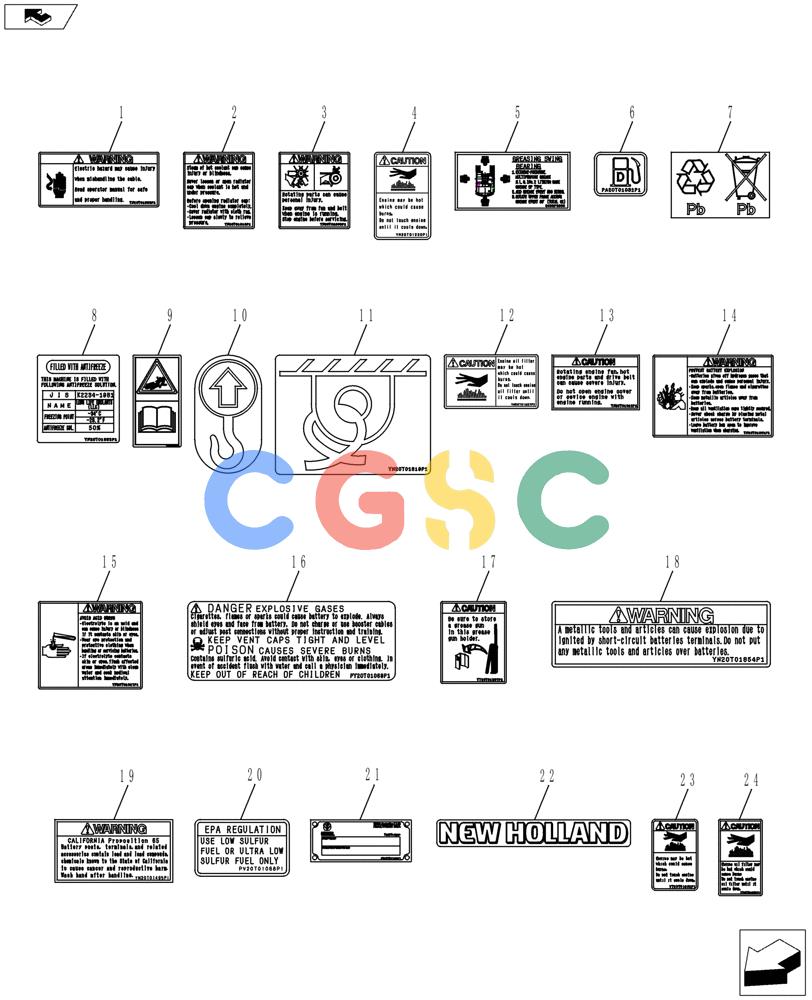

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT22T00140F1 | [1] | | |
| 1. | YN20T01338P1 | [1] | LABEL | KOB |
| 2. | YN20T01010P1 | [1] | LABEL | KOB Superseded by part number: ZL11N00404 |
| 3. | YN20T01009P1 | [1] | LABEL | KOB Superseded by part number: ZL11N05204 |
| 4. | NSS | [1] | NOT SERVICED SEPARATELY | CONLabel |
| 5. | 2432P2689 | [1] | LABEL | KOB |
| 6. | PA20T01031P1 | [1] | CAUTION DECAL | KOB |
| 7. | 2432T6179 | [2] | CAUTION DECAL | KOB |
| 8. | YN20T01832P1 | [1] | LABEL | KOB |
| 9. | YN20T01813P1 | [2] | LABEL | KOB |
| 10. | YN20T01818P1 | [4] | LABEL | KOB |
| 11. | YN20T01819P1 | [4] | LABEL | KOB |
| 13. | YN20T01012P1 | [1] | CAUTION DECAL | KOBLabel |
| 14. | YN20T01001P1 | [1] | LABEL | KOB |
| 15. | YN20T01017P1 | [1] | LABEL | KOB |
| 16. | PY20T01069P1 | [1] | LABEL | KOB |
| 17. | YT20T01287P1 | [1] | LABEL | KOB |
| 18. | YN20T01854P1 | [1] | LABEL | KOB |
| 19. | YN20T01495P1 | [1] | WARNING DECAL | KOB |
| 20. | PV20T01068P1 | [1] | LABEL | KOB |
| 21. | PW20T01123P1 | [1] | IDENTITY PLATE | KOB |
| 22. | PM22T00108P1 | [1] | DECAL | KOB |
| 23. | YT20T01352P1 | [1] | CAUTION DECAL | KOB |
| 24. | YT20T01353P1 | [1] | DECAL | KOB |
