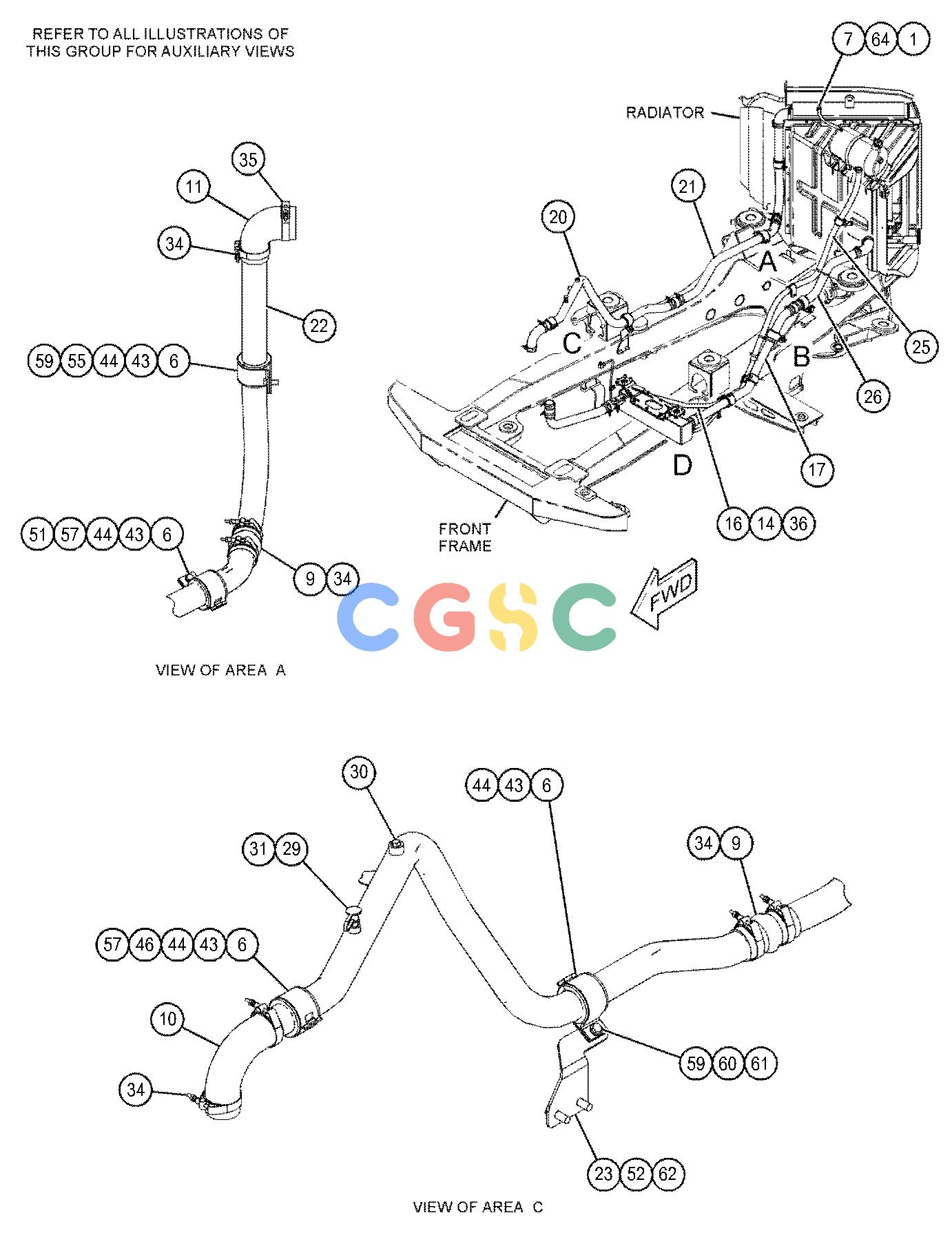

卡特零件查询（730C） 396-8706: LINES GP-COOLANT
广数供应链运营团队, 15 02月, 2025，浏览：
543 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 482-0600E | | HOSE(40-CM) | |
| 2. | 6U-0456 | [3] | STRAP | |
| 3. | 6U-2703 | [2] | BRACKET-ANGLE | |
| 4. | 8F-8151 | [1] | VALVE-SHUTOFF(COOLANT DRAIN) | |
| 5. | 8T-0154 | [1] | CLAMP-HOSE | |
| 6. | 193-2120 | [8] | GROMMET | |
| 7. | 247-5367 | [1] | ELBOW AS | |
| 8. | 290-5562 | [1] | MOUNT(DUAL SWIVEL) | |
| 9. | 342-6299 | [6] | HOSE | |
| 10. | 342-8060 | [1] | ELBOW | |
| 11. | 361-3770 | [1] | ELBOW | |
| 12. | 382-0605 | [1] | BRACKET AS | |
| | 8T-3490M | [6] | NUT-WELD(M10X1.5-THD) | |
| 13. | 382-0607 | [1] | TUBE | |
| 14. | 382-0615 | [1] | HOSE | |
| 15. | 387-8169 | [1] | ELBOW | |
| 16. | 417-2347 | [1] | TUBE | |
| 17. | 434-4744 | [1] | TUBE AS | |
| 18. | 445-5313 | [1] | TUBE AS | |
| 19. | 445-5318 | [1] | TUBE AS | |
| 20. | 447-0555 | [1] | TUBE AS | |
| 21. | 447-0557 | [1] | TUBE | |
| 22. | 447-0558 | [1] | TUBE | |
| 23. | 447-6311 | [1] | BRACKET | |
| 24. | 450-3470 | [1] | COOLER AS-TRANSMISSION OIL | |
| 25. | 456-5324E | | HOSE(210-CM) | |
| 26. | 469-3246 | [1] | TUBE AS | |
| 27. | 148-8365 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-6876 | [1] | ELBOW | |
| 28. | 148-8411 | [1] | PLUG AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 29. | 154-9024 | [1] | VALVE-SAMPLING(ENGINE COOLANT) | |
| 30. | 155-3624 | [1] | PLUG AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 9S-4182 | [1] | PLUG(7/16-20-THD) | |
| 31. | 157-0670 | [1] | CAP-DUST | |
| 32. | 162-6802 | [1] | ELBOW AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 151-5145 | [1] | ELBOW | |
| 33. | 169-7402 | [1] | ADAPTER AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 156-6131 | [1] | ADAPTER | |
| 34. | 208-6054 | [17] | CLAMP-T BOLT | |
| 35. | 209-4578 | [1] | CLAMP-T BOLT | |
| 36. | 300-6036 | [4] | CLAMP-BAND | |
| 37. | 5P-7466 | [2] | CLIP(SLOT) | |
| 38. | 5P-7467 | [2] | CLIP(TAB) | |
| 39. | 5P-7468 | [2] | CLIP(SLOT) | |
| 40. | 5P-7469 | [2] | CLIP(TAB) | |
| 41. | 5P-8112 | [2] | GROMMET | |
| 42. | 6V-0545 | [2] | GROMMET | |
| 43. | 6V-1867 | [8] | CLIP(SLOT) | |
| 44. | 6V-1868 | [8] | CLIP(TAB) | |
| 45. | 6V-8398 | [1] | SEAL-O-RING | |
| 46. | 7X-7729 | [7] | WASHER(11X25X3-MM THK) | |
| 47. | 8T-1885 | [2] | CLIP(SLOT) | |
| 48. | 8T-1886 | [2] | CLIP(TAB) | |
| 49. | 8T-1889 | [1] | CLIP(SLOT) | |
| 50. | 8T-1890 | [1] | CLIP(TAB) | |
| 51. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 52. | 8T-4122 | [10] | WASHER-HARD(17X32X3.5-MM THK) | |
| 53. | 8T-4133M | [5] | NUT(M10X1.5-THD) | |
| 54. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 55. | 8T-4139M | [1] | BOLT(M12X1.75X30-MM) | |
| 56. | 8T-4186M | [2] | BOLT(M10X1.5X40-MM) | |
| 57. | 8T-4195M | [12] | BOLT(M10X1.5X30-MM) | |
| 58. | 8T-4196M | [3] | BOLT(M10X1.5X35-MM) | |
| 59. | 8T-4223 | [3] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 60. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 61. | 8T-4956M | [1] | BOLT(M12X1.75X35-MM) | |
| 62. | 8T-9393 | [10] | BOLT(5/8-11X1.5-IN) | |
| 63. | 415-6334E | | HOSE(101-CM) | |
| 64. | 124-6256 | [2] | CLAMP-HOSE | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
