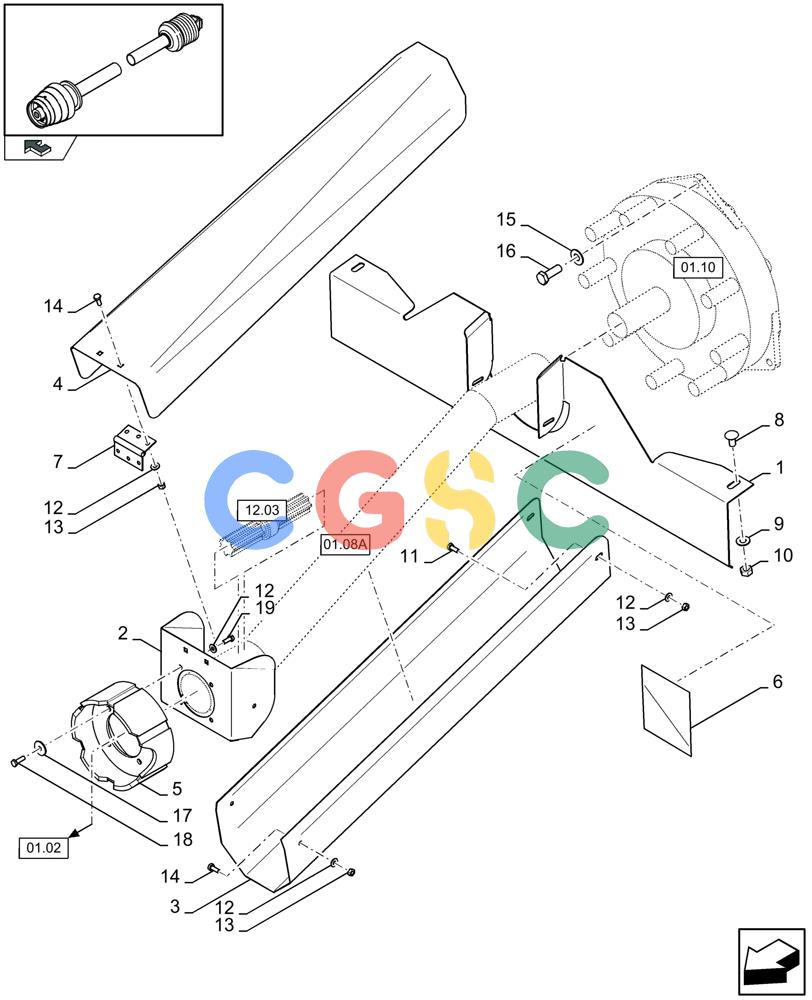

凯斯零件查询(LBX432R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (01.08[01]) - POWER TAKE-OFF, REAR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
543 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84447240
|
[1] |
PLATE
|
ZED
|
| 2. |
84447172
|
[1] |
SUPPORT
|
ZED
|
| 3. |
84447308
|
[1] |
CHUTE
|
ZED
|
| 4. |
84447309
|
[1] |
CHUTE
|
ZED
|
| 5. |
84818972
|
[1] |
ADAPTER
|
ZED
|
| 6. |
84053500
|
[1] |
DECAL
|
ZED
|
| 7. |
350095
|
[1] |
HINGE
|
ZED
, Serial Range: -C595 Superseded by part number: 9833212
|
| 7. |
9833212
|
[1] |
HINGE
|
ZED
, Start Serial: D596
|
| 8. |
80120041
|
[2] |
CARRIAGE BOLT
|
ZED
M10 x 20 Superseded by part number: 120041
|
| 9. |
80140045
|
[2] |
WASHER
|
ZED
10 MM Superseded by part number: 140045
|
| 10. |
100016
|
[2] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 11. |
86512439
|
[2] |
CARRIAGE BOLT,M6 x 16mm, Cl 8.8
|
NH
|
| 12. |
80322357
|
[12] |
LOCK WASHER,Belleville, M6
|
ZED
Superseded by part number: 322357
|
| 13. |
15896221
|
[8] |
NUT,Hex, M6, 5.20mm High, Cl 10
|
ZED
Superseded by part number: 86500688
|
| 14. |
86508568
|
[6] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
|
NH
|
| 15. |
80140046
|
[3] |
WASHER
|
ZED
12 MM Superseded by part number: 140046
|
| 16. |
80300389
|
[3] |
BOLT,M12 x 35mm
|
ZED
M12 x 35 Superseded by part number: 628-12035
|
| 17. |
80362776
|
[4] |
WASHER
|
ZED
Superseded by part number: 362776
|
| 18. |
80120100
|
[4] |
BOLT,M6 x 1 x 20mm
|
ZED
Superseded by part number: 120100
|
