神钢零件查询(MD140C) - EXCAVATOR BTW YPU0301 - YPU0500 (1/80-12/06) (09-002) - VANDALISM PRO. GROUP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
385 次

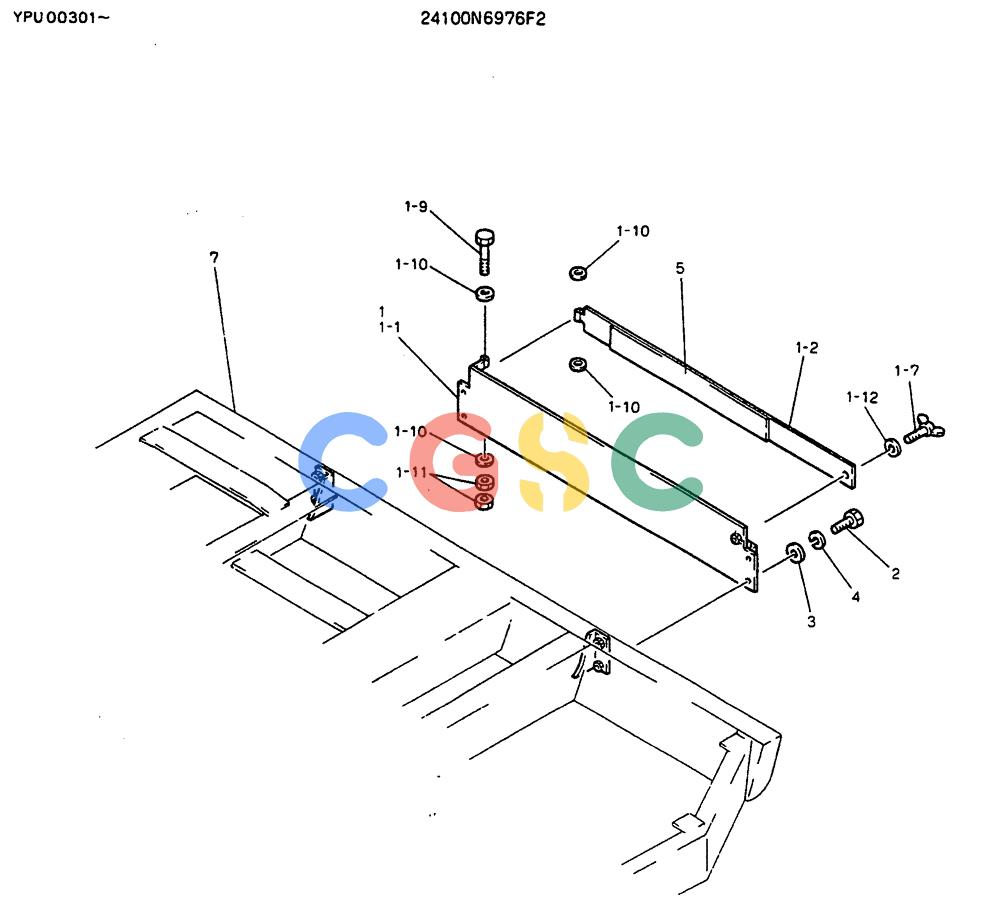

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N6976F2 | [1] | SERVICE KIT | KOB |
| 1. | 2414J2531 | [1] | BOX | KOB |
| 1-1. | NSS | [1] | NOT SOLD SEPARAT | CONPLATE |
| 1-2. | NSS | [1] | NOT SOLD SEPARAT | CONPLATE |
| 1-7. | 2420R220D49 | [1] | BOLT,Wing, M10 x 50mm | KOBWing, M10x50mm Long |
| 1-9. | ZS18C08085 | [1] | CAPSCREW,Hex, M8 x 85mm | KOBSCREW M08x1.25x85mm |
| 1-10. | ZW16K08000 | [4] | WASHER,8mm ID x 15.5mm OD x 1.6mm Thk | KOBID 08 x OD 15.5 x Th 1.6mm |
| 1-11. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 1-12. | ZW16P10000 | [1] | WASHER | KOBID 10.5 x OD 21 x Th 2.0mm |
| 2. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 3. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 4. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 5. | 2416T21210 | [1] | CUSHION | KOB |
| 7. | 2427P3603 | [1] | REWORK, DECK SIDE | REWORK, DECK SIDE |
