神钢零件查询(MD140C) - EXCAVATOR BTW YPU0301 - YPU0500 (1/80-12/06) (09-004) - FAN ASSY, AUTOMOBILE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
483 次

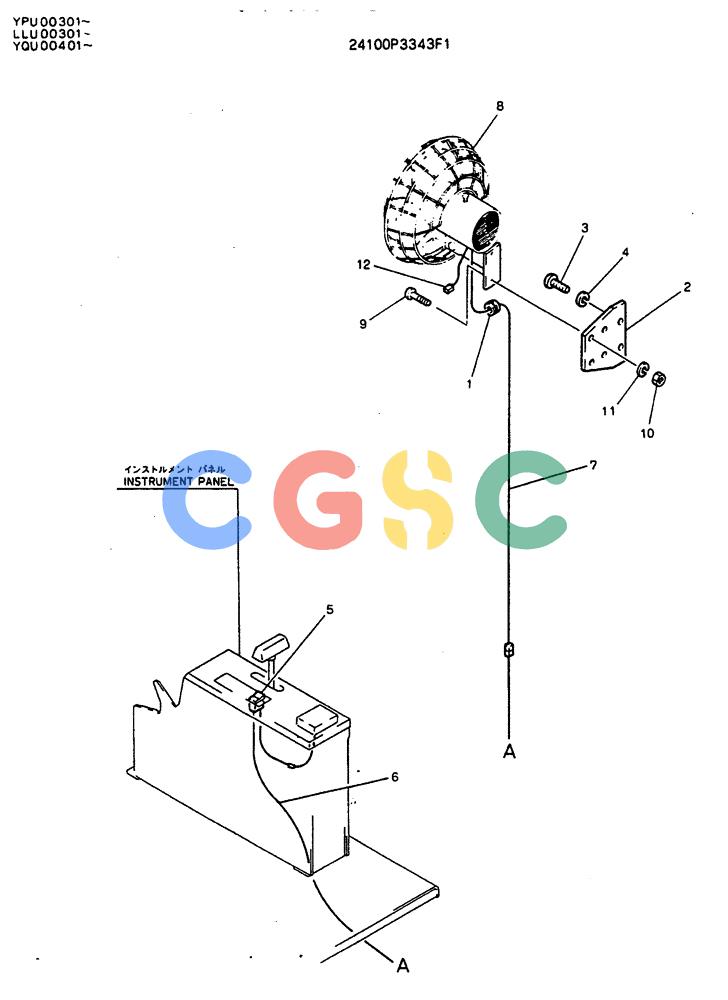

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P3343F1 | [1] | FAN ASSY, AUTOMOBILE | |
| 1. | 2420R189D10 | [1] | GROMMET | KOB |
| 2. | 2416T25442 | [1] | BRACKET | KOB |
| 3. | ZS31C06016 | [2] | SCREW,Phillips Drive, Pan HD, M6 x 16mm | KOBM06x1.0x16mm |
| 4. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 5. | 2479U1190F10 | [1] | SWITCH | KOB |
| 6. | 2479Z2266 | [1] | WIRE HARNESS | KOB |
| 7. | 2479Z992D2 | [1] | HARNESS | KOB |
| 8. | 2449Z14 | [1] | | |
| 9. | ZS31C05016 | [1] | BOLT,Phillips Drive, Pan HD, M5 x 16mm | KOBM05x0.8x16mm |
| 10. | ZN18C05004 | [4] | NUT | KOBM05x0.8mm |
| 11. | ZW26X05000 | [4] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 12. | 2479R1381D1 | [1] | PLUG | PLUG |
