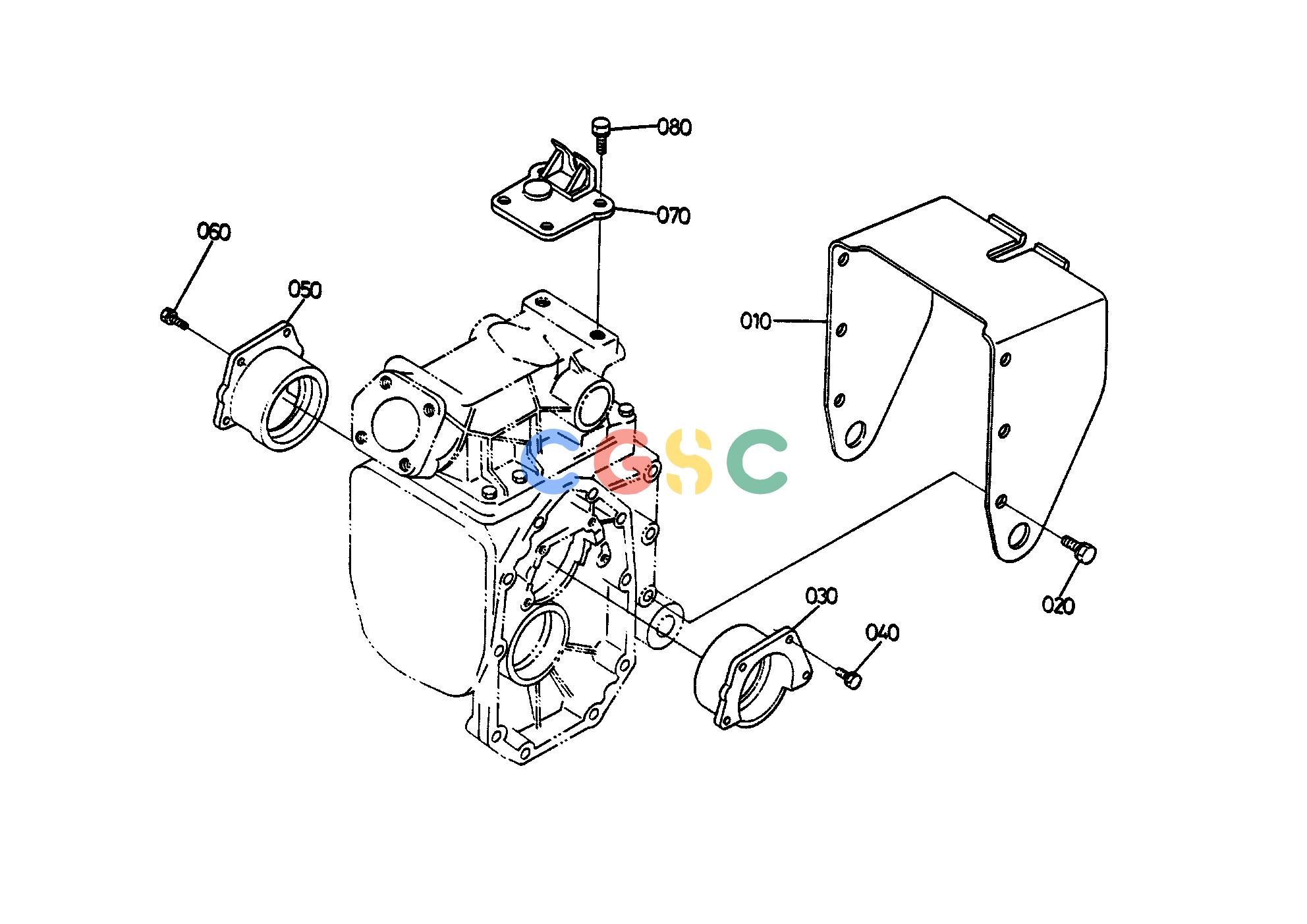

久保田零件查询T00200 PTO COVER TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
570 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6670411214
|
[1] |
COVER PTO
|
4.9720(lbs); 2.260
|
| 020. |
0112351235
|
[6] |
BOLT
|
0.0902(lbs); 0.041
|
| 030. |
6661111510
|
[1] |
HOLDER BEARING LH
|
1.7160(lbs); 0.780
|
| 040. |
0112350822
|
[4] |
BOLT
|
0.0264(lbs); 0.012
|
| 050. |
6661111812
|
[1] |
HOLDER BEARING RH
|
1.5840(lbs); 0.720
|
| 060. |
0112350822
|
[4] |
BOLT
|
0.0264(lbs); 0.012
|
| 070. |
6661111910
|
[1] |
BRACKET CHAIN
|
1.2540(lbs); 0.570
|
| 080. |
0112351230
|
[2] |
BOLT
|
0.0880(lbs); 0.040
|
