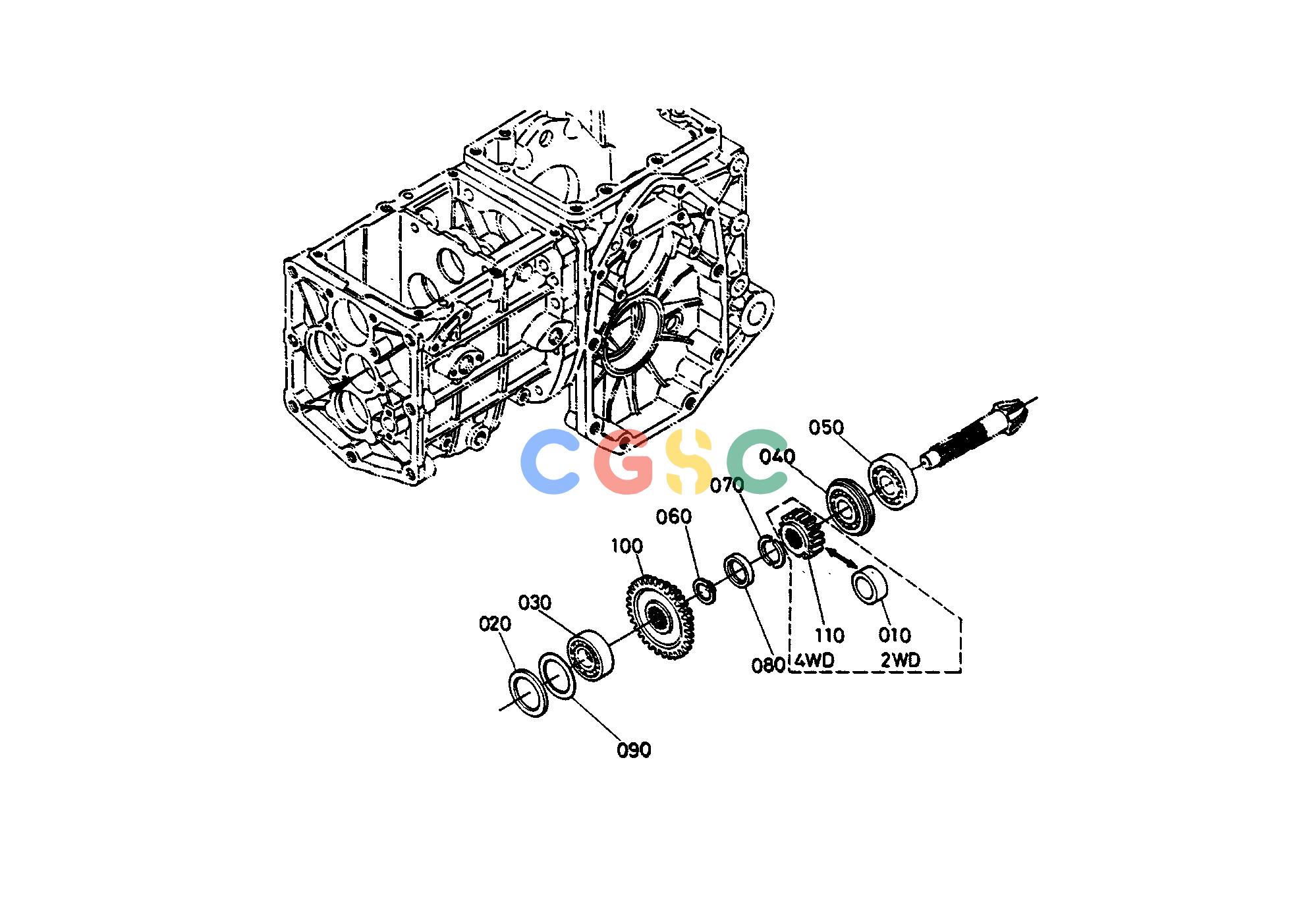

久保田零件查询T01100 SPIRAL BEVEL SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
988 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 020. |
6659114720
|
[1] |
SPACER
|
0.0044(lbs); 0.002
|
| 030. |
0822107303
|
[1] |
BEARING BALL
|
0.2552(lbs); 0.116
|
| 040. |
6721114620
|
[1] |
BEARING BALL
|
0.5060(lbs); 0.230
|
| 050. |
3845021980
|
[1] |
BEARING BALL
|
0.4950(lbs); 0.225
|
| 060. |
0461200250
|
[1] |
CIR-CLIP EXTERNAL
|
0.0044(lbs); 0.002
|
| 070. |
6661114640
|
[2] |
COLLAR STOP
|
0.0066(lbs); 0.003
|
| 080. |
6661114660
|
[1] |
COLLAR
|
0.0396(lbs); 0.018
|
| 090. |
6661114670
|
[1] |
SHIM
|
0.0176(lbs); 0.008
|
| 090. |
6661114680
|
[1] |
SHIM
|
0.0220(lbs); 0.010
|
| 090. |
6661114690
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 100. |
6740114530
|
[1] |
GEAR
|
0.9240(lbs); 0.420
|
| 110. |
6661114650
|
[1] |
GEAR
|
0.2288(lbs); 0.104
|
