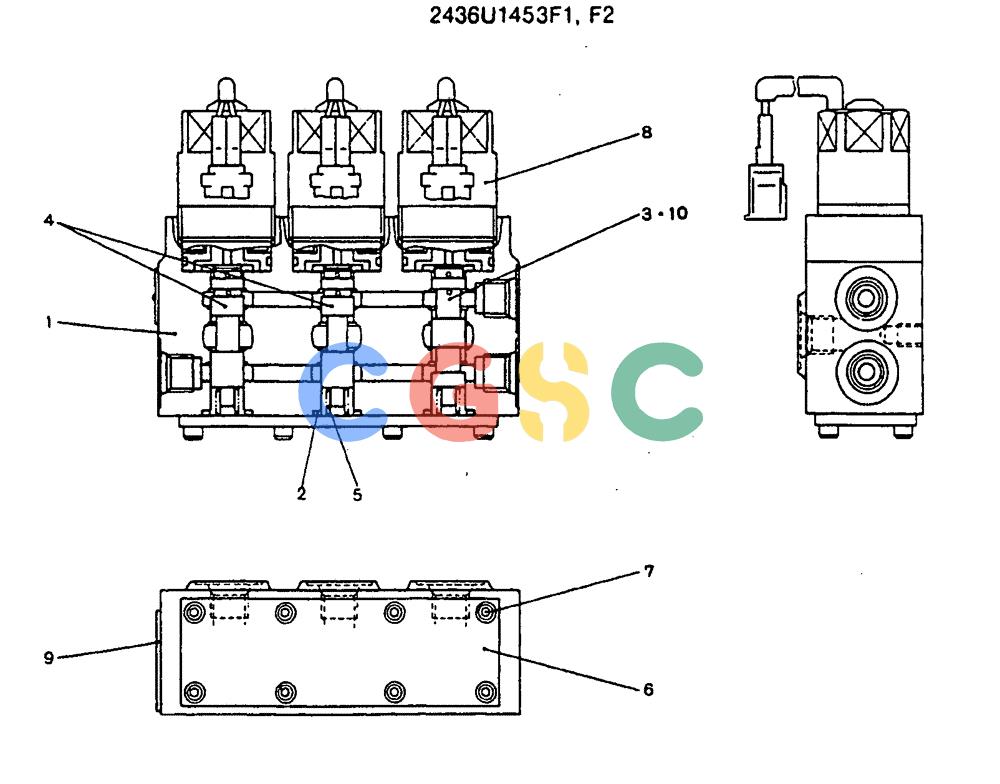

神钢零件查询(MD140C) - EXCAVATOR BTW YPU0301 - YPU0500 (1/80-12/06) (16-004) - VALVE ASSY, SOLENOID P/N 2436U1453F1~F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
904 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1453F1 | [1] | SOLENOID VALVE | KOBASSY CONSISTS OF THE FOLLOWING PARTS Superseded by part number: 2436U1453F3 |
| . . | 2436U1453F2 | [1] | SOLENOID VALVE | KOBASSY CONSISTS OF THE FOLLOWING PARTS Superseded by part number: 2436U1453F4 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCASE |
| 2. | ZD12P01500 | [3] | O-RING | KOBID 14.80 ± 0.20 x OD 19mm |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL F1 ONLY |
| 4. | NSS | [2] | NOT SOLD SEPARAT | CONSPOOL |
| 5. | 2436U1453S5 | [3] | SPRING | KOB |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONCOVER |
| 7. | ZS23C04010 | [8] | SCREW,Hex Socket Head, M4 x 10mm | KOBM04x0.7x10mm |
| 8. | 2436U1453S8 | [3] | SOLENOID | KOB Superseded by part number: 2436U1453S11 |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONNAME-PLATE |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL F2 ONLY |
