纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (02-055[02]) - SWIVEL JOINT INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
899 次

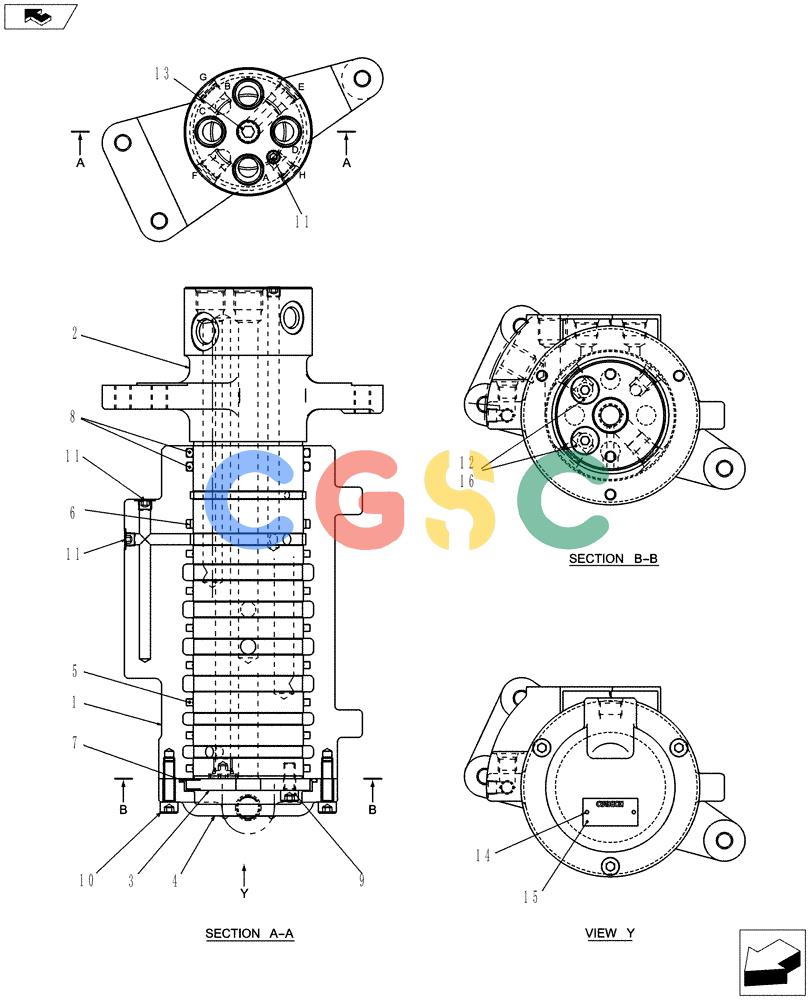

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT55V01008P1 | [1] | BODY | KOB |
| 2. | YT55V01026P1 | [1] | STEM | KOB |
| 3. | 2436P256 | [1] | PLATE | KOBThrust |
| 4. | 2436P266 | [1] | COVER | KOB |
| 5. | YT55V01016P1 | [7] | SEAL | KOB |
| 6. | YN55V01049P1 | [1] | SEAL,80.15mm ID x 91mm OD x 6mm Thk | KOB |
| 7. | ZD11G09500 | [1] | O-RING,94.40mm ID x 100.60mm OD x 3.10mm | KOB |
| 8. | 2445R152D1 | [2] | O-RING,5.7mm Thk x 79.6mm ID, 70 Duro | KOB |
| 9. | ZS23C08020 | [2] | SCREW,Hex Socket Head, M8 x 20mm | KOBCap |
| 10. | ZS23C08030 | [3] | SCREW,Hex Socket Head, M8 x 30mm | KOBCap Superseded by part number: ZS28C08030 |
| 11. | PV52D01007P1 | [3] | PLUG | KOB |
| 12. | LE03H01117D2 | [2] | PLUG | KOB |
| 13. | YN55V01091P1 | [1] | PLUG | KOB |
| 14. | 2420Z1036D3 | [2] | CLEVIS | KOB |
| 15. | YN22T00194P1 | [1] | TYPE PLATE | KOBName |
| 16. | ZD12P01100 | [2] | O-RING | KOB |
