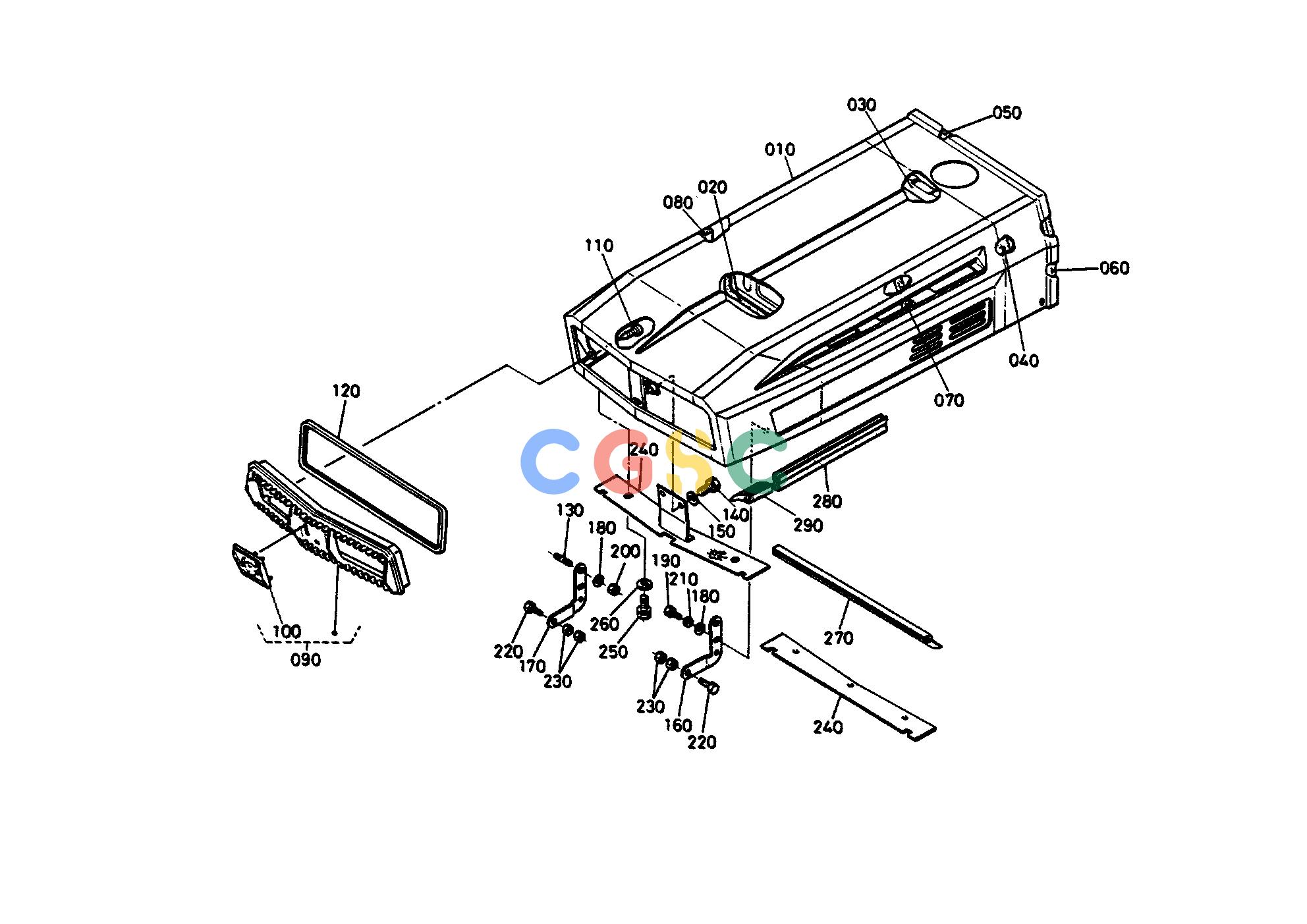

久保田零件查询T04300 HOOD HOOD (BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
206 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6740154100
|
[1] |
COMP.BONNET
|
14.9600(lbs); 6.800
|
| 020. |
6751154170
|
[1] |
TAPE
|
0.0176(lbs); 0.008
|
| 030. |
6721154120
|
[1] |
TAPE
|
0.0110(lbs); 0.005
|
| 040. |
6721154130
|
[2] |
TAPE
|
0.0220(lbs); 0.010
|
| 050. |
6751154150
|
[1] |
TAPE SOFT UPPER
|
0.0220(lbs); 0.010
|
| 060. |
6751154160
|
[2] |
TAPE SOFT SIDE
|
0.0220(lbs); 0.010
|
| 070. |
6751154110
|
[1] |
TAPE
|
0.0220(lbs); 0.010
|
| 080. |
6751154120
|
[1] |
TAPE
|
0.0066(lbs); 0.003
|
| 090. |
6740154200
|
[1] |
ASSY GRILLE LIGHT
|
0.5720(lbs); 0.260
|
| 100. |
6711154240
|
[1] |
MASCOT
|
0.0440(lbs); 0.020
|
| 110. |
3824018230
|
[6] |
SCREW
|
0.0110(lbs); 0.005
|
| 120. |
6740154220
|
[1] |
GASKET
|
0.0594(lbs); 0.027
|
| 130. |
0151350818
|
[2] |
STUD
|
0.0198(lbs); 0.009
|
| 140. |
0102350614
|
[4] |
BOLT
|
0.0110(lbs); 0.005
|
| 150. |
0401350060
|
[4] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 160. |
6711154260
|
[1] |
METAL RH
|
0.2200(lbs); 0.100
|
| 170. |
6711154270
|
[1] |
METAL LH
|
0.2200(lbs); 0.100
|
| 180. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 190. |
0112350818
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
| 200. |
0211450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 210. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 220. |
0117351025
|
[2] |
BOLT
|
0.0462(lbs); 0.021
|
| 230. |
0211850100
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 240. |
6740154310
|
[1] |
NET DUSTPROOF
|
0.4774(lbs); 0.217
|
| 250. |
0102350614
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 260. |
0401350060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 270. |
6740154320
|
[1] |
TRIM
|
0.1320(lbs); 0.060
|
| 280. |
6740154330
|
[2] |
TRIM
|
0.0880(lbs); 0.040
|
| 290. |
6740154340
|
[2] |
TRIM
|
0.0220(lbs); 0.010
|
