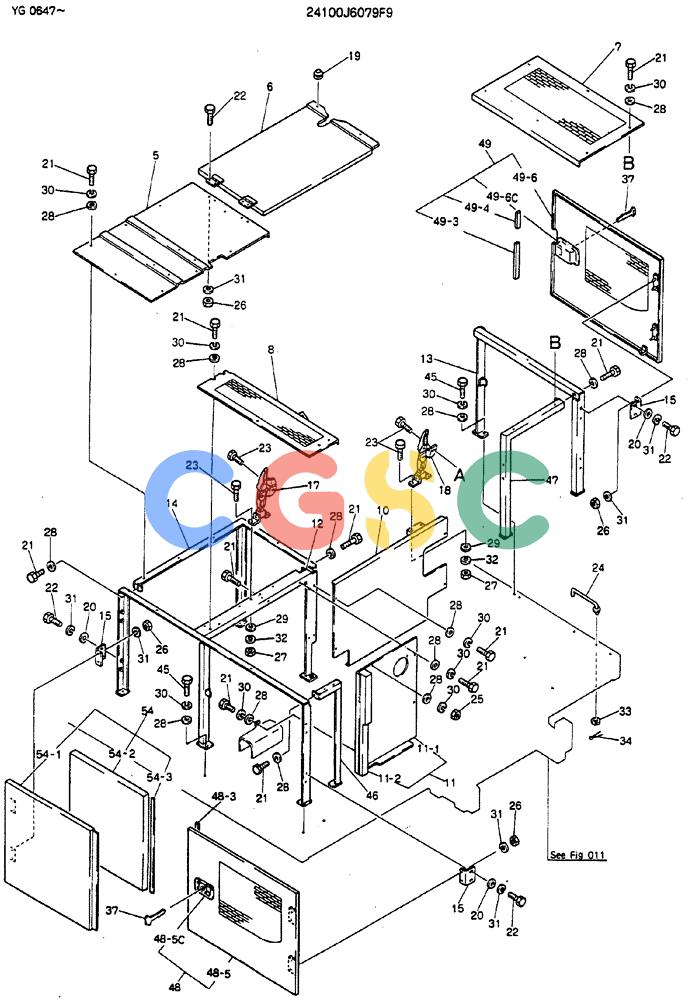

神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (02-006[01]) - GUARD ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
465 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6079F9 | [1] | GUARD ASSY | |
| 5. | 2414P3885 | [1] | COVER | |
| 6. | 2414P3886 | [1] | COVER | |
| 7. | 2414P2994 | [1] | COVER | KOB |
| 8. | 2414P3887 | [1] | COVER | COVER |
| 9. | 24100N2960F2 | [1] | COVER, BATTERY | COVER, BATTERY |
| 9-3. | 2416Z454 | [1] | RUBBER, CUSHION | |
| 9-5. | ZN12C12010 | [4] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 9-6. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 9-7. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 9-10. | 2421N157 | [1] | BOX | BOX |
| 9-11. | 2414P3909 | [1] | COVER | KOB |
| 9-11D. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 9-12. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 9-13. | ZW11X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 10. | 2414P3891 | [1] | COVER | |
| 11. | 24100T300F1 | [1] | COVER ASSY | |
| 11-1. | 2414P3892 | [1] | COVER | |
| 11-2. | 2416Z456 | [1] | INSULATOR | INSULATOR |
| 12. | 2416J803 | [1] | BRACKET | BRACKET |
| 13. | 2416N3242 | [1] | BRACKET | BRACKET |
| 14. | 2416P8625 | [1] | BRACKET | |
| 15. | 2416T13007 | [6] | BRACKET | KOB |
| 16. | 2416T12935 | [1] | RIGID TUBE | KOB |
| 17. | 2427R475 | [1] | CATCH | KOB Superseded by part number: YN21C02226P1 |
| 18. | 2427R302D2 | [1] | CATCH | KOB |
| 19. | 2416T8283 | [2] | RUBBER SLEEVE | KOB |
| 20. | 2418T12346 | [12] | WASHER | KOBID 11 x OD 30 x Th 3.2mm |
| 21. | ZS18C12025 | [36] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 22. | ZS18C10025 | [16] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 23. | ZS18C08025 | [12] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 24. | 2416T6289D2 | [3] | STAY | KOB |
| 25. | ZN17C12010 | [4] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 26. | ZN17C10008 | [16] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 27. | ZN17C08007 | [8] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 28. | 2418T12345 | [44] | WASHER | KOBID 13 x OD 30 x Th 3.2mm |
| 29. | ZW16X08000 | [8] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 30. | ZW26X12000 | [42] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 31. | ZW26X10000 | [28] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 32. | ZW26X08000 | [12] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 33. | ZW16X10000 | [3] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 34. | 2419R9D3 | [3] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 35. | 2414P3893 | [1] | COVER | KOB |
| 37. | 2420Z1030 | [1] | KEY | KOB Superseded by part number: YN50S01010P1 |
| 38. | ZS18C12050 | [1] | SCREW,Hex, M12 x 50mm | KOBM12x1.75x50mm |
| 45. | ZS18C12030 | [9] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 46. | 2416N3241 | [1] | BRACKET | |
| 47. | 2416P8626 | [1] | BRACKET | |
| 48. | 2414T2738F3 | [1] | COVER ASSY | KOB |
| 48-3. | 2416Z485D1 | [1] | CUSHION | KOB |
| 48-5. | 2414P3966 | [1] | COVER | COVER |
| 48-5C. | 2427R476F2 | [1] | LOCK | KOB Superseded by part number: 2421R175F1 |
| 49. | 2414T2737F3 | [1] | COVER ASSY | COVER ASSY |
| 49-3. | 2416Z485D2 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 49-4. | 2416Z485D3 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 49-6. | 2414P3967 | [1] | COVER | COVER |
| 49-6C. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 51. | 2414P3984F2 | [1] | COVER ASSY | KOB |
| 51-2. | 2416Z438 | [1] | INSULATOR | INSULATOR |
| 51-3. | 2416Z484 | [1] | CUSHION | KOB |
| 51-4. | 2416Z486D1 | [1] | RUBBER, CUSHION | |
| 51-5. | 2416Z435D2 | [2] | RUBBER SLEEVE | KOBCUSHION |
| 51-6. | ZS41C05025 | [4] | SCREW,M5 x 25mm | KOBM05x0.8x25mm |
| 51-7. | 2406Z304 | [1] | HANDLE | KOB |
| 51-8. | ZN11C05004 | [4] | NUT M05x0.8mm | NUT M05x0.8mm |
| 51-9. | 2414J1040 | [1] | COVER | |
| 51-9O. | B16T0530 | [1] | CLIP | CLIP |
| 51-9P. | ZS31C06008 | [2] | MACHINE SCREW M06x1.0x08mm | MACHINE SCREW M06x1.0x08mm |
| 51-9Q. | ZW26K06000 | [2] | LOCK WASHER | KOBID 06 x OD 11 x Th 1.5mm |
| 51-10. | 2420Z1190 | [2] | GROMMET | GROMMET |
| 54. | 2414T2739F1 | [1] | COVER ASSY | COVER ASSY |
| 54-1. | 2414P3884 | [1] | COVER | |
| 54-2. | 2479T1012 | [1] | INSULATION, SOUND | |
| 54-3. | 2416Z487D1 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
