| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

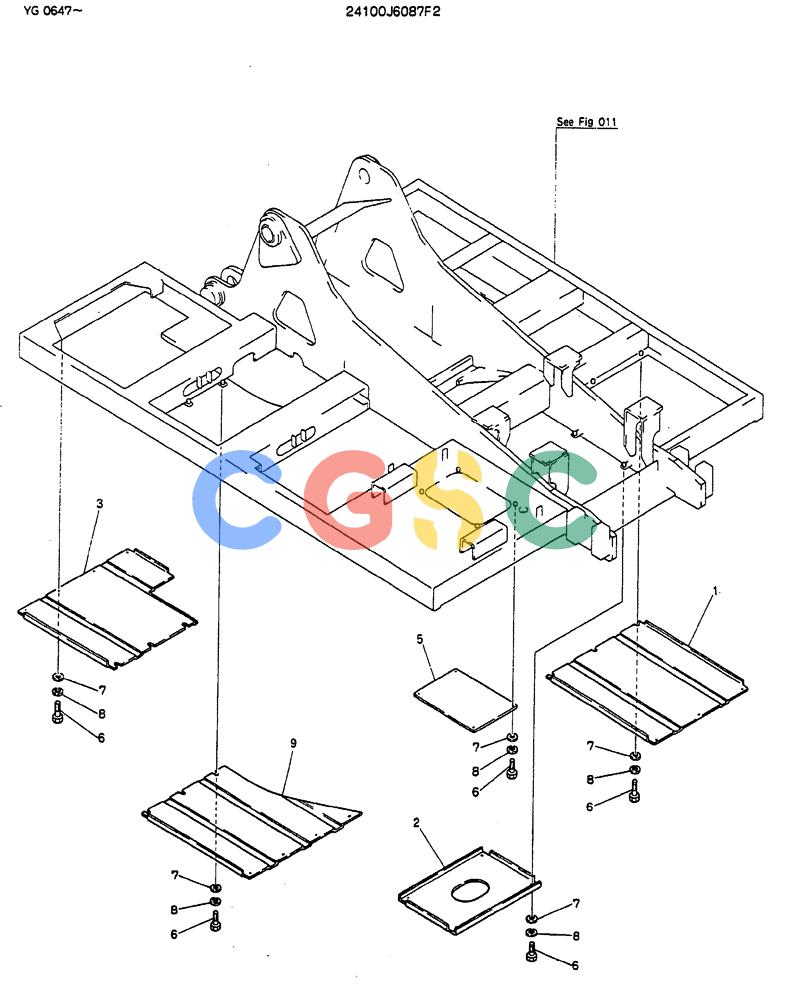

| . . | 24100J6087F2 | [1] | COVER, UNDER | |
| 1. | 2414P2989 | [1] | COVER | KOB |
| 2. | 2414P2988 | [1] | COVER | |
| 3. | 2414P3894 | [1] | COVER | |
| 5. | 2414T2687 | [1] | COVER | KOB |
| 6. | ZS18C12030 | [29] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 7. | 2418T12345 | [29] | WASHER | KOBID 13 x OD 30 x Th 3.2mm |
| 8. | ZW26X12000 | [29] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 9. | 2414P4068 | [1] | COVER |
