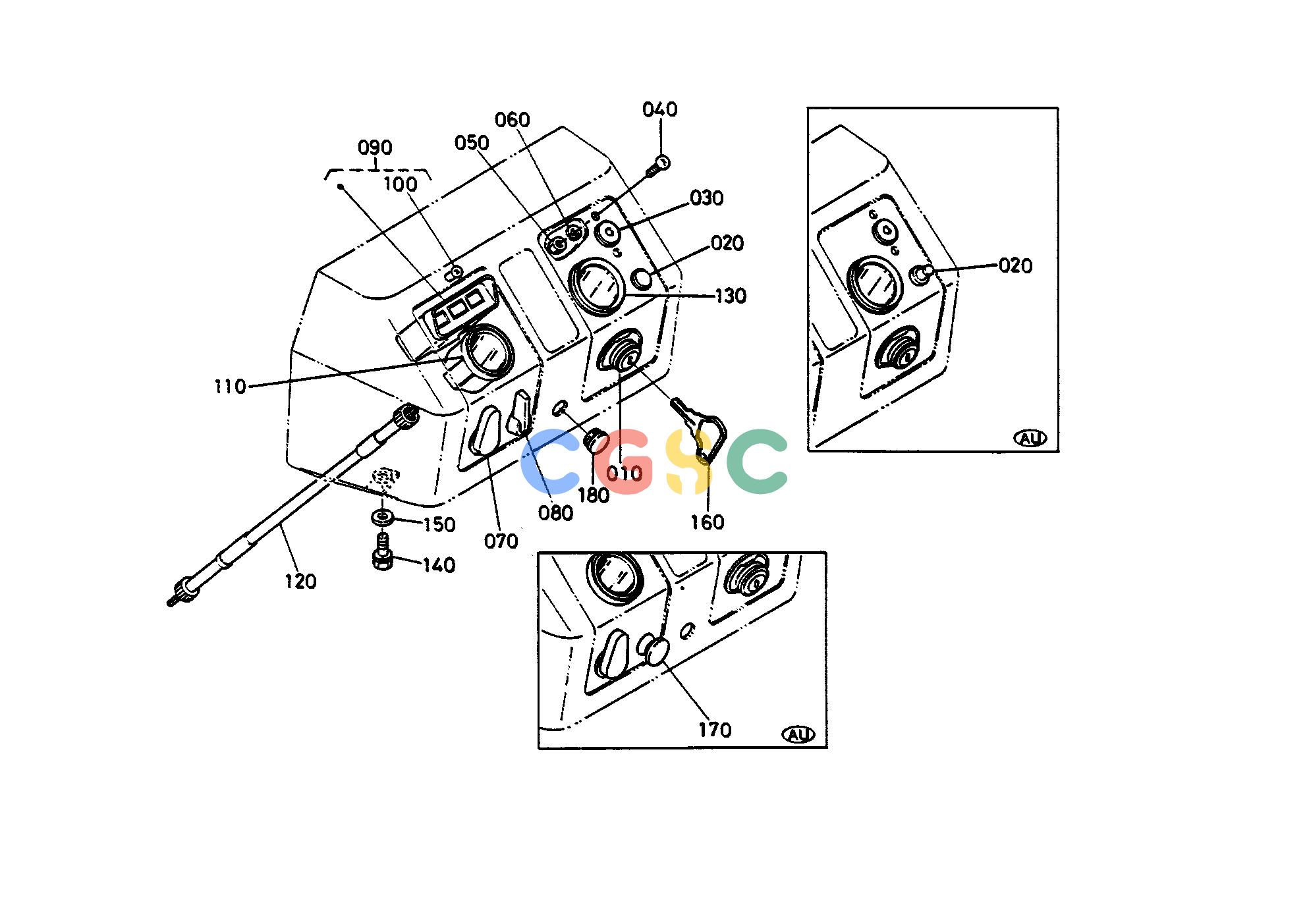

久保田零件查询T05100 PANEL SWITCH ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
385 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6671155130
|
[1] |
SWITCH STARTER
|
0.5302(lbs); 0.241
|
| 020. |
3511032420
|
[1] |
PLUG
|
0.0044(lbs); 0.002
|
| 020. |
6783055130
|
[1] |
SWITCH HORN
|
0.0440(lbs); 0.020
|
| 030. |
1553165950
|
[1] |
INDICATOR GLOW
|
0.1100(lbs); 0.050
|
| 040. |
0305450512
|
[2] |
SCREW PAN HEAD
|
0.0066(lbs); 0.003
|
| 050. |
0205450050
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 060. |
0451250050
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 070. |
5461741140
|
[1] |
SWITCH LIGHTING
|
0.1760(lbs); 0.080
|
| 080. |
5531141120
|
[1] |
SWITCH LIGHT
|
0.1100(lbs); 0.050
|
| 090. |
6711155450
|
[1] |
ASSY OK MONITOR
|
0.4400(lbs); 0.200
|
| 100. |
6711155460
|
[2] |
BULB
|
0.0110(lbs); 0.005
|
| 110. |
6740155310
|
[1] |
ASSY METER TRACTOR
|
0.0000(lbs); 0.000
|
| 120. |
6780055410
|
[1] |
CABLE HOUR METER
|
0.5500(lbs); 0.250
|
| 130. |
6690854750
|
[1] |
METER FUEL
|
0.3300(lbs); 0.150
|
| 140. |
0112350818
|
[4] |
BOLT
|
0.0264(lbs); 0.012
|
| 150. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 160. |
6671155140
|
[2] |
KEY START
|
0.0000(lbs); 0.000
|
| 170. |
3415934290
|
[1] |
PLUG
|
0.0088(lbs); 0.004
|
| 180. |
3511032420
|
[1] |
PLUG
|
0.0044(lbs); 0.002
|
