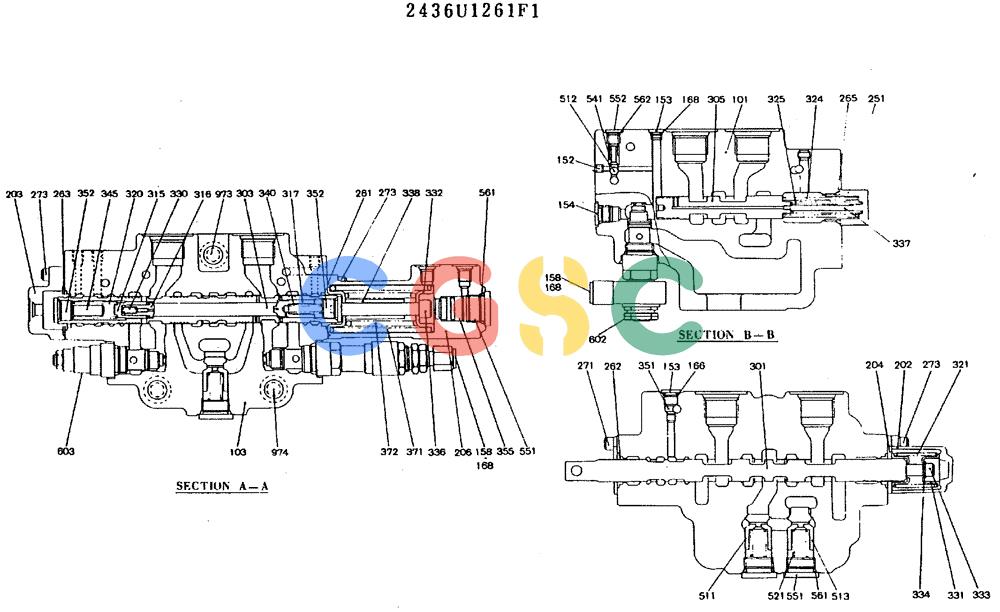

| . . | 2436U1261F1 | [1] | CONTROL VALVE | KOBVALVE, CONTROL CONSISTS OF THE FOLLOWING PARTS |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 102. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 103. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 152. | 2436U1165S152 | [36] | PLUG | KOB |
| 153. | ZE82T04000 | [4] | PLUG | KOB1/4" PT |
| 154. | 2436U1165S154 | [6] | PLUG | KOB |
| 156. | 2436U1165S156 | [2] | PLUG | KOB |
| 157. | 2436U1165S157 | [3] | PLUG | KOB Superseded by part number: 2436U1265S157 |
| 158. | 2436U1207S155 | [9] | PLUG | KOB |
| 161. | ZD12P03800 | [8] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 162. | 2436U1165S162 | [6] | O-RING | KOB Superseded by part number: 2436U1345S162 |
| 163. | ZD12P01500 | [1] | O-RING | KOBID 14.80 ± 0.20 x OD 19mm |
| 164. | ZD12P01400 | [6] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 166. | ZD12P01100 | [4] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 168. | ZD12P00800 | [12] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 201. | 2436U1165S201 | [2] | COVER | KOB |
| 202. | 2436U1165S202 | [2] | CAP | KOB |
| 203. | 2436U1165S203 | [2] | COVER | KOB |
| 204. | 2436U1165S204 | [4] | PLATE | KOB |
| 205. | 2436U1165S205 | [1] | COVER | KOB |
| 206. | 2436U1165S206 | [1] | COVER | KOB |
| 251. | 2436U1165S251 | [5] | PLUG | KOB |
| 261. | 2436U1165S261 | [3] | O-RING | KOB Superseded by part number: YN30V00079S261 |
| 262. | 2436U1165S262 | [4] | SEAL | KOB Superseded by part number: 2436U1265S262 |
| 263. | ZD12G04500 | [3] | O-RING,44.40mm ID x 50.60mm OD x 3.10mm | KOBID 44.40 ± 0.41 x OD 50mm |
| 265. | ZD12G02500 | [5] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOBID 24.4 ± 0.25 x OD 30mm |
| 271. | ZS23C08012 | [6] | SCREW,Hex Socket Head, M8 x 12mm | KOBM08x1.25x12mm |
| 273. | ZS23C08025 | [16] | SCREW,Hex Socket Head, M8 x 25mm | KOBM08x1.25x25mm |
| 301. | 2436U1165S301 | [2] | SPOOL | KOB |
| 302. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 303. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 304. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 305. | 2436U1261S305 | [1] | SPOOL | |
| 306. | 2436U1165S306 | [2] | SPOOL | KOB |
| 307. | 2436U1165S307 | [2] | SPOOL | SPOOL |
| 312. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 313. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 314. | NSS | [1] | NOT SOLD SEPARAT | CONSLEEVE |
| 315. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 316. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 317. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 320. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 321. | 2436U1165S321 | [2] | SPRING | KOB |
| 323. | 2436U1165S323 | [1] | SPRING | SPRING |
| 324. | 2436U1165S324 | [1] | SPRING | KOB |
| 325. | 2436U1165S325 | [1] | SPRING | KOB |
| 327. | 2436U1165S327 | [2] | SPRING | KOB |
| 328. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 329. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 330. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 331. | 2436U1165S331 | [4] | SPRING SEAT | KOB |
| 332. | 2436U1165S332 | [6] | SPRING SEAT | KOB Superseded by part number: 2436U1443S332 |
| 334. | 2436U1165S334 | [2] | WASHER | WASHER |
| 335. | 2436U1165S335 | [2] | STOP | KOBPIPE |
| 336. | 2436U1165S336 | [3] | BOLT | KOB |
| 337. | 2436U1165S337 | [5] | ROD | KOB |
| 338. | 2436U1165S338 | [1] | STOP | KOB |
| 339. | NSS | [1] | NOT SOLD SEPARAT | CONRING, STOP |
| 340. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 341. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 342. | NSS | [1] | NOT SOLD SEPARAT | CONSLEEVE |
| 343. | NSS | [1] | NOT SOLD SEPARAT | CONBOLT |
| 345. | NSS | [1] | NOT SOLD SEPARAT | CONROD |
| 349. | NSS | [2] | NOT SOLD SEPARAT | CONSTOPPER |
| 351. | 2436U1165S351 | [3] | ORIFICE | KOB |
| 352. | NSS | [2] | NOT SOLD SEPARAT | CONPLUG |
| 353. | 2436U1165S353 | [1] | PISTON | KOB |
| 354. | 2436U1165S354 | [1] | SPRING | KOB |
| 355. | 2436U1165S355 | [1] | PISTON | KOB Superseded by part number: 2436U1265S355 |
| 358. | NSS | [2] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 359. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 371. | 2436U1165S371 | [3] | SPRING | KOB |
| 372. | 2436U1165S372 | [2] | SPRING | KOB |
| 373. | 2436U1165S373 | [4] | SPRING | KOB |
| 374. | 2436U1165S374 | [2] | SPRING | KOB |
| 511. | 2436U1165S511 | [7] | POPPET | KOB |
| 512. | 2483U106S512 | [6] | BALL | KOB Superseded by part number: 2483U172S19 |
| 513. | 2436U1261S513 | [2] | POPPET | POPPET |
| 521. | 2436U1165S521 | [9] | SPRING | KOB |
| 541. | 2436U1165S541 | [1] | SEAT/SLOT | KOB |
| 542. | 2436U1165S542 | [2] | SEAT | KOB |
| 543. | 2436U1165S543 | [1] | SEAT | KOB |
| 544. | 2436U1165S544 | [2] | SEAT/SLOT | KOBSEAT Superseded by part number: 2436U1265S543 |
| 551. | 2436U1165S551 | [11] | PLUG | KOB |
| 552. | 2436U1165S552 | [7] | PLUG | KOB |
| 561. | ZD12P02400 | [11] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 562. | ZD12P01000 | [7] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
| 601. | 2436R752F1 | [2] | VALVE PRESSURE RELIE | KOBSEE FIGURE 11-010 |
| 602. | 2436R750F1 | [2] | VALVE, RELIEF SEE FIGURE 11-008 | VALVE, RELIEF SEE FIGURE 11-008 |
| 603. | 2436R684F2 | [4] | VALVE | KOBSEE FIGURE 11-003 |
| 604. | 2436R685F1 | [2] | VALVE PRESSURE RELIE | KOBSEE FIGURE 11-004 |
| 611. | 2436R751F1 | [2] | VALVE, RELIEF SEE FIGURE 11-009 | VALVE, RELIEF SEE FIGURE 11-009 |
| 612. | 2436U1165S612 | [1] | POPPET | |
| 701. | 2436U1207F1 | [1] | VALVE | KOBSEE FIGURE 11-014 |
| 971. | 2436U1165S971 | [1] | CAPSCREW | |
| 972. | 2436U1165S972 | [2] | CAPSCSEW | |
| 973. | 2436U1165S973 | [1] | SCREW | KOB |
| 974. | 2436U1165S974 | [2] | SCREW | KOB |
| 975. | NSS | [1] | NOT SOLD SEPARAT | CONNAME-PLATE |
| . . | 2436U1261R100 | [1] | REPAIR KIT | KOBREPAIR KIT CONSISTS OF REF 101, 153, 166, 251, 265, 305, 324, 325, 337, 512, 541, 552, 562 |
| . . | 2436U1261R110 | [1] | REPAIR KIT | KOBREPAIR KIT CONSISTS OF REF 102, 157, 158, 163, 201, 205, 261, 263, 302, 306, 307, 312-314, 323, 327-329, 335, 336, 339, 341-343, 351, 353, 354, 359, 371, 374, 542-544, 601, 603, 604, 611, 612, 975 |
| . . | 2436U1261R120 | [1] | REPAIR KIT | KOBCONSISTS OF REF 103, 153, 166, 201, 206, 303, 304, 306, 307, 315-317, 320, 327, 330, 335, 338, 340, 345, 355, 374, 542, 544, 601, 604, 611, 701 |
| . . | 2436U1261R130 | [1] | REPAIR KIT | KOBREPAIR KIT CONSISTS OF REF 302, 312-314, 328, 329, 339, 341-343, 359 |
| . . | 2436U1261R140 | [1] | REPAIR KIT, CONSISTS OF REF 303, 315-317, 320, 330, 340, 345 | |
