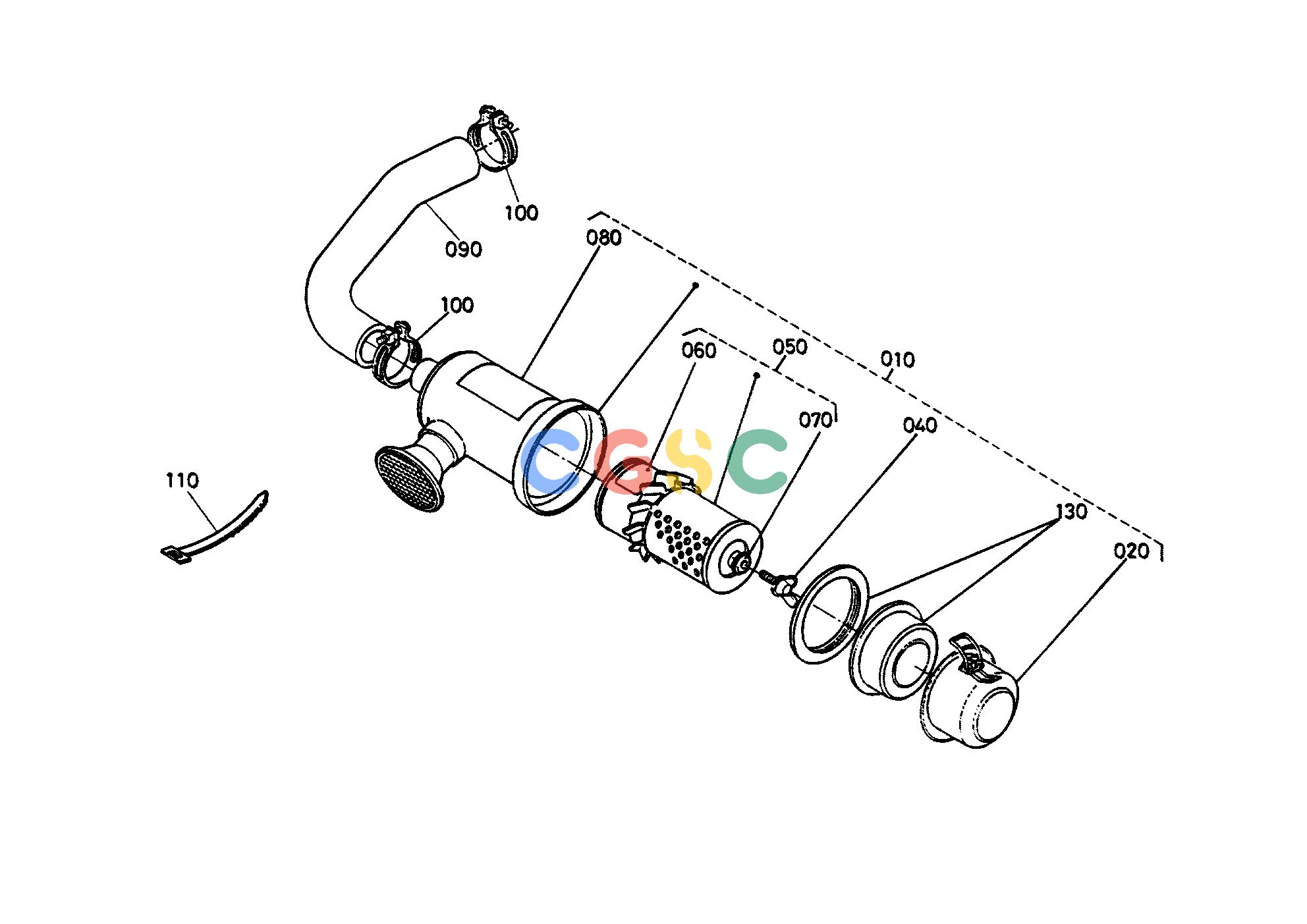

久保田零件查询T05400 AIR CLEANER FUEL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
300 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1575111010
|
[1] |
ASSY CLEANER AIR
|
3.0800(lbs); 1.400
|
| 020. |
1522111160
|
[1] |
COVER AIR CLEANER
|
0.4400(lbs); 0.200
|
| 030. |
1522111410
|
[1] |
COVER BAFFLE
|
0.2288(lbs); 0.104
|
| 040. |
1522192620
|
[1] |
BOLT WING
|
0.0880(lbs); 0.040
|
| 050. |
6780058300
|
[1] |
ASSY ELEMENT CLEANER
|
0.7040(lbs); 0.320
|
| 060. |
1522787480
|
[1] |
LABEL ELEMENT A/C
|
0.0088(lbs); 0.004
|
| 070. |
1522194430
|
[1] |
WASHER WITH RUBBER
|
0.0088(lbs); 0.004
|
| 080. |
1537287452
|
[1] |
LABEL AIR CLEANER
|
0.0022(lbs); 0.001
|
| 090. |
1553111120
|
[1] |
PIPE INLET
|
1.3200(lbs); 0.600
|
| 100. |
1522111720
|
[2] |
BAND PIPE
|
0.0660(lbs); 0.030
|
| 110. |
3620077650
|
[1] |
BAND CORD
|
0.0044(lbs); 0.002
|
