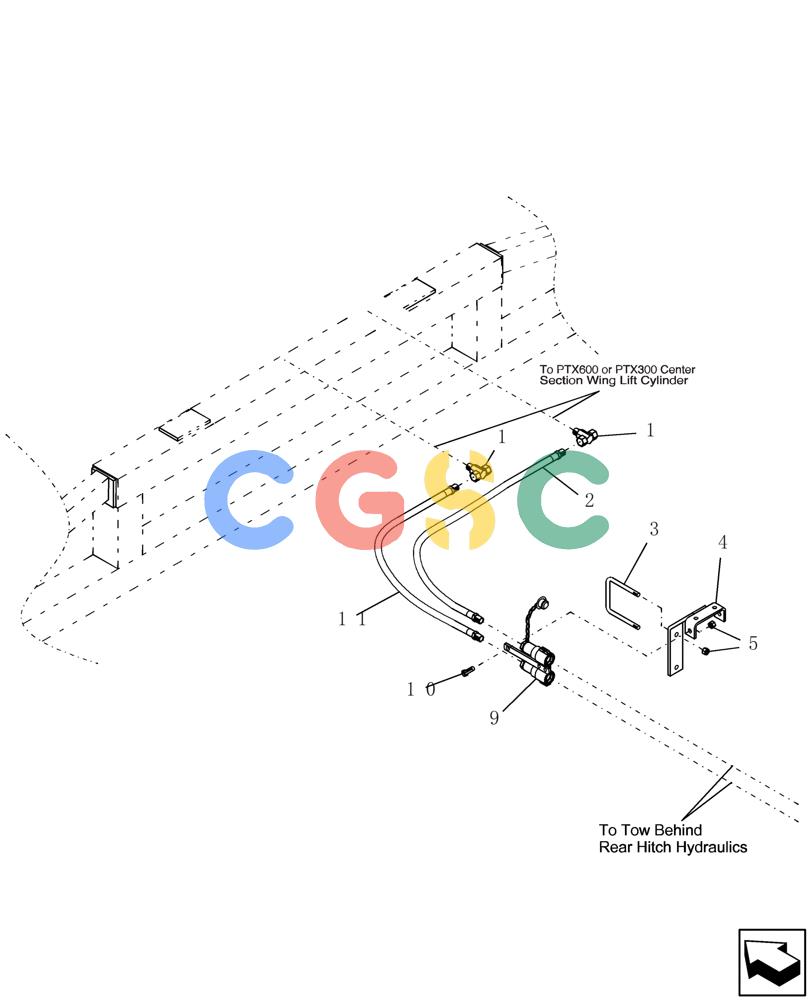

凯斯零件查询(2330) - PRECISION AIR CART (1/08-12/15) (35.525.06) - TOW BEHIND REAR HITCH OPTION Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
788 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1242
|
[1] |
TEE
|
SAS
fitting, hydraulic - swivel
|
| 2. |
22612
|
[1] |
HYDRAULIC HOSE,0.38" ID x 86.50", SAE J517, SAE J516, SAE J846, SAE J1273
|
FLX
3/8" x 86 1/2" fl, 1/2" mpt x 1/2" mpt
|
| 2. |
448425A1
|
[1] |
HYDRAULIC HOSE
|
FLX
3/8" x 151" fl, 1/2" mpt x 1/2" mpt
|
| 3. |
5089
|
[1] |
U-BOLT
|
FLX
us 7/16"-14 4 1/8" w 5 3/8" d GR2
|
| 4. |
GE-186
|
[1] |
SUPPORT
|
FLX
hydraulic couplers & wiring harness bracket
|
| 5. |
280980
|
[3] |
NUT,7/16"-14, GC
|
NH
|
| 9. |
1990
|
[1] |
KIT
|
FLX
pioneer coupler fitting 1/2"
|
| 10. |
9706729
|
[1] |
BOLT,Hex, 7/16" - 14 x 1", Gr 5, Full Thd
|
NH
|
| 11. |
4136
|
[1] |
HYDRAULIC HOSE
|
FLX
3/8" x 60" fl, 1/2" mpt x 1/2" mpt
|
| 11. |
22625
|
[1] |
HYDRAULIC HOSE,0.38" ID x 110.00", SAE J517, SAE J516, SAE J846, SAE J1273
|
FLX
3/8" x 110" fl, 1/2" mpt x 1/2" mpt
|
