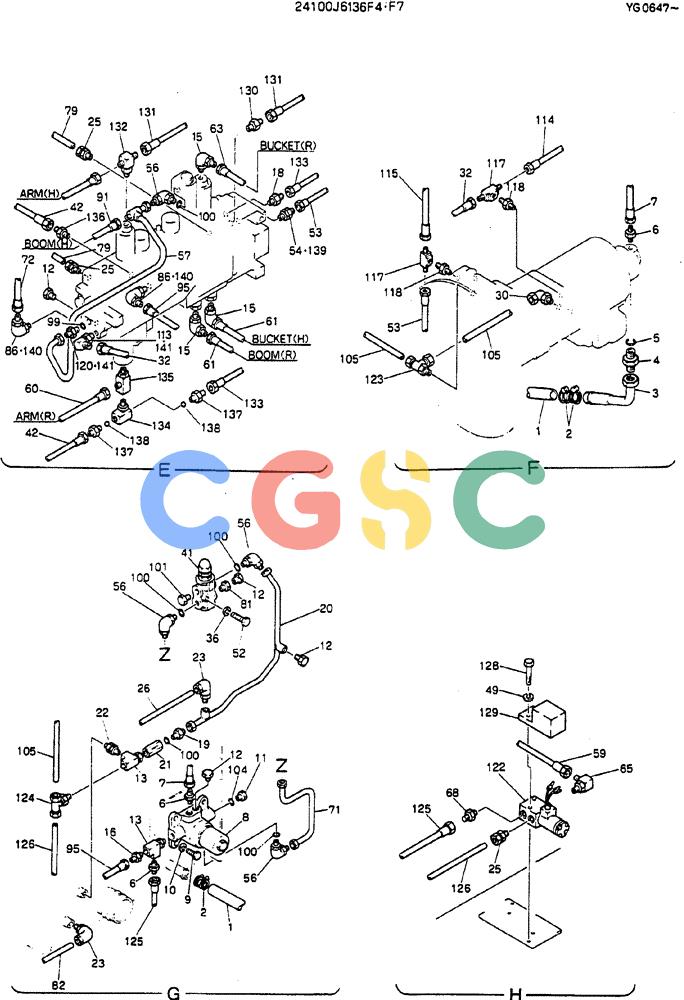

| . . | 24100J6136F4 | [1] | REMOTE-CONTROL ASSY, Start Serial: YG0647 | |
| . . | 24100J6136F7 | [1] | REMOTE-CONTROL ASSY, Start Serial: YG0660 | |
| 1. | R18P0168D29 | [1] | FLEXIBLE HOSE | KOB |
| 2. | ZC15X03300 | [4] | CLIP | KOB |
| 3. | 2418P10004 | [1] | TUBE | KOB |
| 4. | ZA23F22012 | [1] | HYD CONNECTOR | KOB3/4"PF - M30x1.50 x 46mm Long |
| 5. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 6. | ZH22X06000 | [3] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| 7. | 2420R537D075 | [1] | HOSE,9.60mm ID x 750mm L | KOB |
| 8. | 2446U230F1 | [1] | FILTER ASSY | KOB |
| 9. | ZS13C10030 | [3] | SCREW | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 10. | ZW22X10000 | [3] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 11. | 2420T4494 | [1] | PLUG | KOB |
| 12. | ZE72X04000 | [5] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| 13. | 2444Z2333 | [2] | TEE | KOB |
| 15. | ZH32X06000 | [4] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 16. | ZH22X04006 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring 237-6006) |
| 18. | ZH22X04000 | [5] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| 19. | ZA23F15006 | [1] | HYD CONNECTOR | KOB3/8"PF - M22x1.50 x 37mm Long (No O-Ring supplied) |
| 20. | 2418P11935 | [1] | TUBE | TUBE |
| 21. | 2436U1171D36 | [1] | CHECK VALVE | KOB |
| 22. | 2444Z2296 | [1] | HYD CONNECTOR | KOB |
| 23. | ZH31M08006 | [2] | ELBOW | KOB |
| 25. | ZH21M08004 | [7] | HYD CONNECTOR | KOBCONNECTOR |
| 26. | ZX15K08180 | [2] | TUBE | KOBNYLON |
| 27. | 2444Z2345 | [1] | 90 ELBOW | KOB90° -- (Incls. O-Rings ZD12P01400 & ZD12P01800) |
| 30. | ZH31M08004 | [1] | ELBOW | KOB |
| 32. | 2420R349D190 | [1] | HOSE,6.35mm ID x 1900mm L | KOB1900mm Long (74-13/16 in) |
| 36. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 41. | 2436R680F1 | [1] | VALVE PRESSURE RELIE | KOB |
| 42. | 2420R349D045 | [1] | HOSE | KOB450mm Long (17-23/32 in) |
| 49. | ZW22X06000 | [10] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 52. | ZS18C08055 | [2] | CAPSCREW,Hex, M8 x 55mm | KOBSCREW M08x1.25x55mm |
| 53. | 2420R349D095 | [1] | FLEXIBLE HOSE | KOB |
| 54. | 2444T2513F2 | [1] | CONNECTOR ASSY, Start Serial: YG0647 | CONNECTOR ASSY, Start Serial: YG0647 |
| 56. | ZA33F15006 | [4] | ELBOW | KOB |
| 57. | 2418P11812 | [1] | TUBE | KOB |
| 59. | 2420R537D390 | [1] | HOSE,9.60mm ID x 3900mm L | KOB(3/8" PF), 3900mm Long (153-1/2 in) |
| 60. | 2420R537D270 | [1] | FLEXIBLE HOSE,9.60mm ID x 2700mm L | KOB2700mm Long (106-19/64 in) |
| 61. | 2420R537D300 | [2] | HOSE,9.60mm ID x 3000mm L | KOB Superseded by part number: HX21E06300DX |
| 63. | 2420R537D375 | [1] | FLEXIBLE HOSE,9.60mm ID x 3750mm L | KOB Superseded by part number: HX21E06375DX |
| 65. | 2444Z2338 | [3] | 90 ELBOW | KOB90° -- (1/4" PFx3/8" PF), (Incls. O-Ring ZD12P01100) |
| 66. | 2420R537D295 | [1] | FLEXIBLE HOSE,9.60mm ID x 2950mm L | KOB |
| 67. | 2420R537D320 | [1] | HOSE ASSY.,9.60mm ID x 3200mm L | KOB3200mm Long (126 in) |
| 68. | 2444Z2337 | [10] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01100) |
| 71. | 2418T12631 | [1] | TUBE | TUBE |
| 72. | 2420R349D075 | [1] | HOSE | KOB750mm Long (29-1/2 in) Superseded by part number: 2444R3019D3 |
| 74. | 2410T323 | [1] | BLOCK | KOB |
| 75. | ZS13C08040 | [2] | SCREW | KOBM08x1.25x40mm Superseded by part number: ZS18C08040 |
| 76. | ZH21M08006 | [2] | HYD CONNECTOR | KOBCONNECTOR |
| 78. | ZH51K08000 | [2] | TEE | KOB |
| 79. | ZX15K08060 | [2] | TUBE | KOBTUBE, NYLON |
| 81. | 2444T2505 | [1] | HYD CONNECTOR | KOB1/4" PF - 3/8" PF x 35mm Long (Incls. O-Ring ZD12P01400) |
| 82. | ZX15K08140 | [1] | TUBE, NYLON TUBE,NYLON | TUBE, NYLON TUBE,NYLON |
| 83. | 2420T3483 | [7] | GROMMET | KOBGROMMET |
| 84. | 2432Z290 | [20] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 85. | 2436U1171D31 | [1] | CHECK VALVE | KOBVALVE,CHECK |
| 86. | 2444T2503F1 | [2] | ELBOW ELBOW ASSY | ELBOW ELBOW ASSY |
| 88. | 2420R564 | [3] | GROMMET | KOBGR0MMET |
| 91. | 2420R537D370 | [1] | FLEXIBLE HOSE,9.60mm ID x 3700mm L | KOBHOSE |
| 94. | 2420R537D360 | [1] | HOSE,9.60mm ID x 3600mm L | KOB |
| 95. | 2420R349D120 | [3] | HOSE,6.35mm ID x 1200mm L | KOB |
| 96. | ZX15K08120 | [2] | FLEXIBLE HOSE | KOBTUBE, NYLON |
| 97. | 2436U1242F1 | [2] | PILOT VALVE | KOBVALVE, PILOT |
| 98. | ZS23C06020 | [8] | SCREW,Hex Socket Head, M6 x 20mm | KOBM06x1.0x20mm Superseded by part number: ZS28C06020 |
| 99. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 100. | ZD12P01400 | [5] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 101. | ZE72X06000 | [1] | PLUG | KOB3/8" PF, (Incls. O-Ring ZD12P01400) |
| 104. | ZD12P01600 | [1] | O-RING | KOBID 15.80 ± 0.20 x OD 20mm |
| 105. | ZX15K08040 | [2] | PLASTIC-RUBBER TUBE | KOBTUBE, NYLON |
| 113. | 2444T2503F2 | [1] | ELBOW ASSY ELBOW ASSY, Start Serial: YG0647 | ELBOW ASSY ELBOW ASSY, Start Serial: YG0647 |
| 114. | 2420R349D14 | [1] | FLEXIBLE HOSE | KOB140mm Long (5-1/2 in) Superseded by part number: HX21E04100DX |
| 115. | 2420R349D063 | [1] | FLEXIBLE HOSE | KOBHOSE Superseded by part number: 2420R349D065 |
| 116. | ZH42X04000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 45° -- (Incls. O-Ring 237-6004) |
| 117. | 2444T2529 | [2] | TEE | KOB1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100) |
| 118. | 2444T2528 | [2] | HYD CONNECTOR | KOBCONNECTOR |
| 119. | ZX15K08005 | [1] | TUBE | KOBTUBE, NYLON |
| 120. | 2444T2545F1 | [1] | CONNECTOR, Start Serial: YG0647 | CONNECTOR, Start Serial: YG0647 |
| 122. | 2436R688F1 | [1] | SOLENOID VALVE | KOBVALVE, SOLENOID |
| 123. | 2444T2501D2 | [1] | TEE | KOBTEE |
| 124. | ZH51M08006 | [1] | TEE | KOBTEE |
| 125. | 2420R537D045 | [1] | HOSE,9.60mm ID x 450mm L | KOB Superseded by part number: HX21E06045DX |
| 126. | ZX15K08058 | [1] | TUBE, NYLOM, N2 TUBE, NYLON | TUBE, NYLOM, N2 TUBE, NYLON |
| 128. | ZS13C06060 | [2] | SCREW | KOBBOLT M06x1.0x60mm Superseded by part number: ZS18C06060 |
| 129. | 2416P8779 | [1] | COVER COVER | COVER COVER |
| 130. | 2444T2513F3 | [1] | CONNECTOR ASSY | |
| 131. | 2444R941D4 | [1] | HOSE | KOBHOSE |
| 132. | ZH52X06000 | [1] | TEE,30 Degree Fl, Male, PF 3/8" x 3/8" x 3/8", O-Ring | KOB3/8"PFx54mm Long (Incls. O-Ring ZD12P01400) |
| 133. | 2444R963D3 | [1] | HOSE | KOB |
| 134. | 2444Z2462F1 | [1] | TEE ASSY | |
| 135. | 2444Z2432 | [1] | TEE | KOB1/4" PF x (2) 3/8" PF x 52mm Long (Incls. O-Ring ZD12P01400) |
| 136. | 2444Z2431 | [1] | TEE | |
| 137. | 2444Z2452 | [2] | HYD CONNECTOR | KOBCONNECTOR |
| 138. | 2425Z519 | [2] | BALL | KOBBALL |
| 139. | 2444Z2448F1 | [1] | HYD CONNECTOR | KOBCONNECTOR ASSY, Start Serial: YG0660 |
| 140. | 2444Z2447F1 | [2] | ELBOW UNION | KOBUnion Elbow ELBOW ASSY, Start Serial: YG0660 |
| 141. | 2444Z2447F2 | [1] | 90 ELBOW | KOBELBOW ASSY, Start Serial: YG0660 |
| 142. | 2444Z2445F1 | [1] | HYD CONNECTOR | KOBCONNECTOR ASSY, Start Serial: YG0660 |
