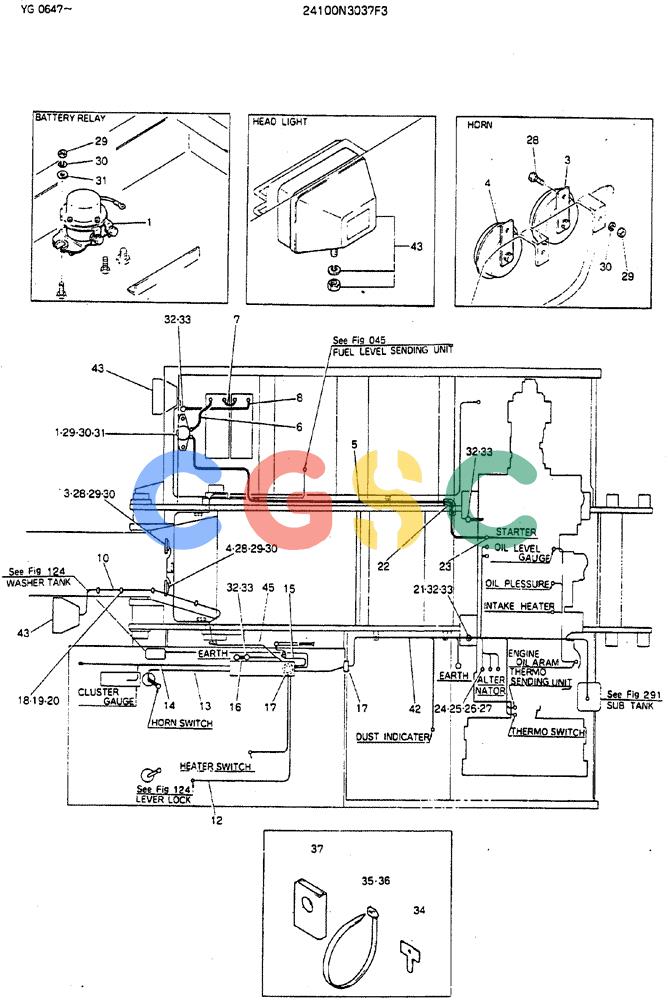

神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (05-013) - WIRING ASSY, ELEC Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
608 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3037F3 | [1] | WIRING ASSY, ELEC | |
| 1. | 2479U185 | [1] | RELAY | KOB Superseded by part number: 2479R1368 |
| 3. | 2479U240F1 | [1] | HORN | KOB Superseded by part number: CM53S00002F1 |
| 4. | 2479U240F2 | [1] | HORN | KOB Superseded by part number: CM53S00002F2 |
| 5. | 2479T145D19 | [1] | CABLE, BATTERY | |
| 6. | 2479Z966 | [1] | NEG BATTERY CABLE | KOB |
| 7. | 2479T145D4 | [1] | NEG BATTERY CABLE | KOB |
| 8. | 2479T145D11 | [1] | CABLE, BATTERY | CABLE, BATTERY |
| 10. | 2479Z839D6 | [1] | WIRE HARNESS | KOB |
| 12. | 2479Z965 | [1] | HARNESS | KOB |
| 13. | 2479Z964 | [1] | HARNESS | KOB |
| 14. | 2479Z963 | [1] | WIRE HARNESS | KOB |
| 15. | 2479R656 | [1] | WIRE HARNESS | KOB |
| 16. | 2479Z967 | [1] | CABLE | KOB |
| 17. | 2420Z699 | [2] | GROMMET | KOB |
| 18. | 2432Z270 | [4] | CLAMP | KOB |
| 19. | ZN12C06005 | [4] | NUT | KOBM06x1.0mm Superseded by part number: ZN18C06005 |
| 20. | ZW22X06000 | [4] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 21. | R16P0036D1 | [1] | CLAMP | KOB Superseded by part number: ZC46X12011 |
| 22. | 2414Z199D025 | [1] | PROTECTIVE SLEEVE | KOBHose -- 250mm Long (9-27/32 in) |
| 23. | 2479Z957 | [1] | CAP | |
| 24. | 2479Z958 | [1] | CAP | |
| 25. | ZS31C05010 | [1] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBM05x0.8x10mm |
| 26. | ZW26X05000 | [1] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 27. | ZW16K05000 | [1] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| 28. | ZS13C08025 | [2] | SCREW | KOBM08x1.25x25mm Superseded by part number: ZS18C08025, 77276313 |
| 29. | ZN12C08007 | [4] | NUT | KOBM08x1.25mm Superseded by part number: 77278252, ZN18C08007 |
| 30. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 31. | ZW16X08000 | [2] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 32. | ZN12C10008 | [5] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 33. | ZW22X10000 | [5] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 34. | 2432Z309D1 | [5] | CLAMP | KOB |
| 35. | 2432Z290 | [10] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 36. | 2432Z290D3 | [5] | CLIP | KOBWire Ties -- 154mm Long Superseded by part number: PY01P01043D3 |
| 37. | 2420T3483 | [11] | GROMMET | KOB |
| 42. | 2479R1312 | [1] | WIRING HARNESS | WIRING HARNESS |
| 43. | 2456R229F3 | [2] | CAP SEE FIGURE 05-016 | CAP SEE FIGURE 05-016 |
| 45. | 2479Z1076 | [1] | WIRE HARNESS | KOB |
